Two Shaft Shredder/ Rotor Shear (M400) /Granulator/Plastic Machine/Plastic Crusher

Product Description

Two Shaft Shredder/ Rotor Shear (M400) /Granulator/Plastic Machine
Product Description

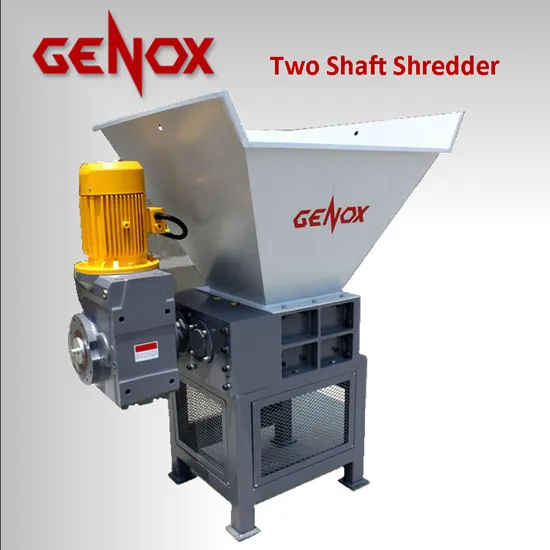

GENOX TWO SHAFT SHREDDER
M Series Two Shaft Shredders operate at low speed with high torque to minimized noise and power consumption, whilst achieving high throughput rates. This range of machines are particularly well suited to the size reduction of bulky or voluminous materials which can include contamination such as metals or stones. Manufactured from heat treated 42CrMo high grade alloy, the blades present excellent wear and shock resistant properties.
Specification

model	M800T	M800
Dimension L XW X H(mm)	2930X1850X2200	2820X1060X1850
Chamber size L X W(mm)	800 X 750	800 X 480
Discharge heath (mm)	850	650
Rotation diameter(mm)	Φ430	Φ284
Rotation speed(rpm)	14.5	14
Number of blades(pcs)	20	40
Blades thickness(mm)	40	20
Drive power(Kw)	15+15	7.5+7.5
Hopper volume(L)	950	750
Weight(Kg)	Approx 4300	Approx 2200

With maintenance and operation taken into account during the design stage, the removal and refitting of the blades is straight forward task. The machines are equipped with mechanical and electrical overload protection systems, and can therefore be applied in the processing of challenging materials such as WEEE (televisions, computers etc.), white goods (washing machines & refrigerators), tires, drums, pallets, pipes to name but a few.
Detailed Photos

Company Profile
FAQ
1.Question:Will we provide pre-sale services ?
Answer:Genox consists of experienced specialists, we will offer a suitable solution according client's requirement in time.
2.Question:Is our after-sales service excellent ?
Answer:Genox's skilled technicians are available to assist with onsite installation,commissioning & training on request. This will enable customers to optimize the performance of their new plant. Customers will be briefed on all aspects relating to operation and maintenance by a Genox technician. Dimensional drawings together with service requirements will be provided prior to delivery of the equipment. This will allow the customer to prepare the site and allow them to commence production in a timely fashion.
Genox holds a adequately inventory of spare parts and their efficient service personnel will ensure that any required part will be dispatched without delay. Delivery of the spare parts may be by air, sea or courier depending on the urgency of the situation. Customers are encouraged to hold their own critical spare parts such as granulator blades and screens to ensure optimal machine condition and performance.

3.Question:Will we provide technical support ?
Answer:Genox provides enough hardware resource especially for large-scale production lines, clients can carry out installation, commissioning and acceptance before delivery.
