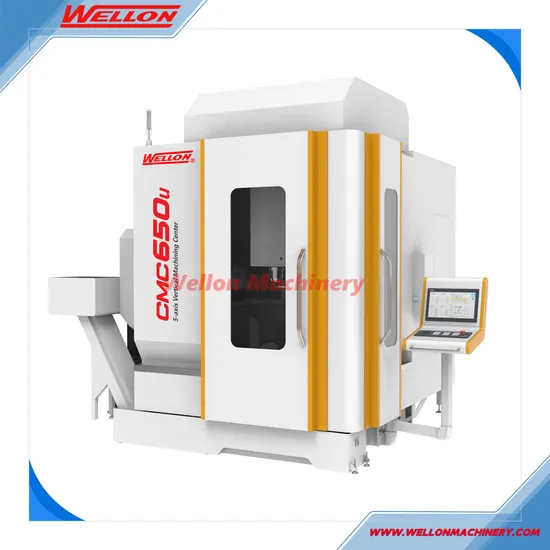

200mm 5 Axis CNC Machining Center CNC Milling Machine

Product Description

Product Description
Products Description:
200mm 5 axis CNC machining center CNC milling machine Product Parameters
Main configuration & accessories:
The CMC series five-sided machining center is mainly used for batch processing of box parts, shell parts, molds and other parts with high precision, multiple procedures, and complex shapes. It can continuously complete milling, drilling, expanding, reaming, and boring in one clamping. Tapping and precise processing of three-dimensional curved surfaces and inclined surfaces. The processing is programmed and batched, which shortens the production cycle and enables users to obtain good economic benefits. This series of models is an ideal and cost-effective 5-sided machining center.
Technical parameter:

Specifications	Units	CMC170U
Table travel (X,Y,Z)	mm	600x200x300
Table size	mm	Φ200
Max. load of table	kg	50
Distance from spindle nose to table surface	mm	80-380
Distance from spindle axis to column guideway	mm	140
Rapid feed speed	m/min	30
Feed speed	mm/min	2.5-10000
Taper of spindle		BT30
Spindle speed range	rmp	100-20000
Spindle motor power	kw	5.5
Tool magazine capability	Qty	8
X,Y,Z leadscrew size	mm	Φ30 (Ball)
Linear guideway size	mm	30
Rotary table		YB-YL-200
X,Y,Z axis servo motor torque	Nm	12/12/12
Positioning accuracy	mm	±0.005/300JIS
Repeat positioning accurary	mm	±0.003/300JIS

Standard Accessories:
Fanuc 31i CNC controller
1 package alpha motor
5 axis simultaneously moving
Spindle oil cooler
Taiwan Hiwin rotary table direct driven type with DD motor
Heidenhain scale on rotary table and X,Y,Z axis
Full closed loop
X,Y,Z axis linear guideway P class
Ball leadscrew C1 class with coolant system
Chain type conveyor + Spiral type conveyor
Air conditioner in cabinet
Air gun + Water gun
Full closed cover
Working lamp and alarm lamp
Schneider electric
Air conditioner
