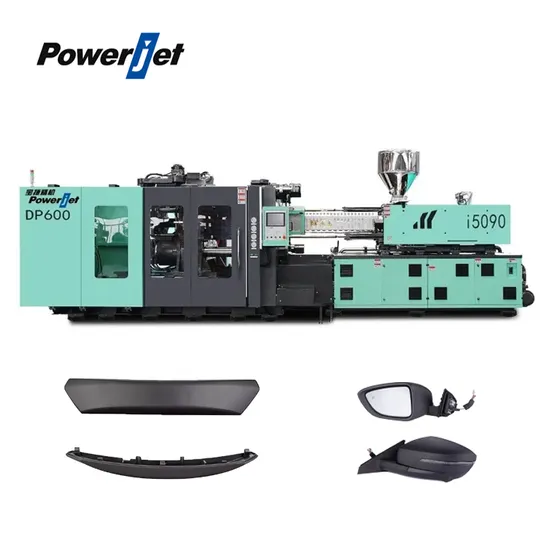

Fully Automatic Plastic Auto Parts Car Bumper Making 500 Ton Injection Molding Machine

Product Description

Details Images
High Efficiency
Low Energy Consumption
More Dedicated


The high-pressure clamping adopts movable platen clamping structure, which is fixed by a high-pressure tie bar, which is reliable in sealing, does not leak oil, and the tie bar is durable.


The ejector cylinder contains a converted structure, which ensures the whole machine more short and occupy less space.

Innovative holding brake structure, adjusting the holding brake with high speed and reliability, low noise and accurate synchronization.

Four independent high-pressure oil cylinders innovative structure for quick and stable pressure rising and releasing, easy maintenance.
Large mold opening stroke, high-speed and stable mold opening and closing, high efficiency.

Ultra-wide space of the mold clamping area, large core pulling space and easy operation.

The mold clamping unit is automatically lubricated with grease, clean, low maintenance cost, simple and convenient.
The movable platen adopts linear guider with low resistance, low energy consumption, stable moving and accurate positioning.

Equipped with servo electric charging, high speed rotate, low noise, low energy consumption, compared with traditional hydraulic motor charging, saving power cost more than 30%.

Product Paramenters

DESCRIPTION	UNIT	DP600-S6
Intemational size rating			5090-600
Clmping force	KN	6000
Opening Stroke	mm	1450/850
Space btw.Tie Bars	mm	960×860
Daylight Max.	mm	1800
Mold Thickness(min-max)	mm	350-950
Ejection Stroke	mm	250
Ejector Force	KN	166
Screw Diameter	mm	100
Short Volume	cm3	3691
Shot Weight(PS)	g	3359
Injection rate	g/s	849
Injection Pressure	MPa	138
Screw L/D Ratio	L/d	20
Injection Stroke	mm	470
Screw Rotary Speed max.	rpm	145
Nozzle Contact Force	KN	200
Nozzle Stroke	mm	600
System Pressure	MPa	17.5
Pump Motor	KW	52+42
Heating Capacity	KW	47
Oil Tank Capacity	L	1000
Machine Dimensions	m	7.9*3*2.7
Machine Weight	T	25

Company Profile

POWERJET PLASTIC MACHINERY CO., LTD. is a high and new technology enterprise of R&D, manufacturing, sales, after-sales service of injection molding machine and blow molding machine. Powerjet was founded in 2000,occupying an area of 130,000 square meters. Annual production capacity has reach to 4000-5000 injection sets of. More than 20 offices have been set up in the global market, machines have been exported to more than 60 countries in the world. The machine specifications are complete, adapt to a variety of industries, cost-effective, and create high returns for customers. One-stop whole-process caring service.
Established distributors in multiple countries like Thailand, Malaysia, Indonesia, Vietnam, Uzbekistan, USA, Mexico, Brazil, and Pakistan, etc. With a global sales network, our local offices and agents can provide more convenient and sincere services. Agent In Worldwide
Setting Up Agent In More Than 20 Countries For Sales And Support
Lifetime Support
24 Hours Online Service And Overseas Installation & Maintenance
Spare Parts
We Supplying Screw, Motor, Control Panel And Plastic Mold For Machines
Operation Training
Support Training To Engineer For Setup, Processing & Troubleshooting
Plastic Mold Testing
Provide Testing Mold Service Before Customer Receiving The Machine
Project Cases


FAQ
Q1: Are you a manufacturer or trading company?
A1: We are a factory for plastic machines. Over 24 Years Experience In Manufacturing Injection Molding Machine And Blow Molding Machine.
Q2: Delivery time
A2: Normally Machine Delivery from the factory in 0-60 days after receiving the down payment. (During Chinese Public Holidays like National Day or Chinese New Year, the delivery time should be 10-30 days longer accordingly).
Q3: Where is your factory located?
A3: Our factory is located in No.5 Chuangxin Xi Road, Leping Town, Sanshui District, Foshan City, Guangdong Province, China. 1h drive from Guangzhou to our factory. Welcome to visit our factory.
