Factory Price Textile Quilt Making Machinery Quilt Production Line Wool Cotton Fiber Carding Machine

Product Description

Factory price textile quilt making machinery quilt production line wool cotton fiber carding machine Product Description

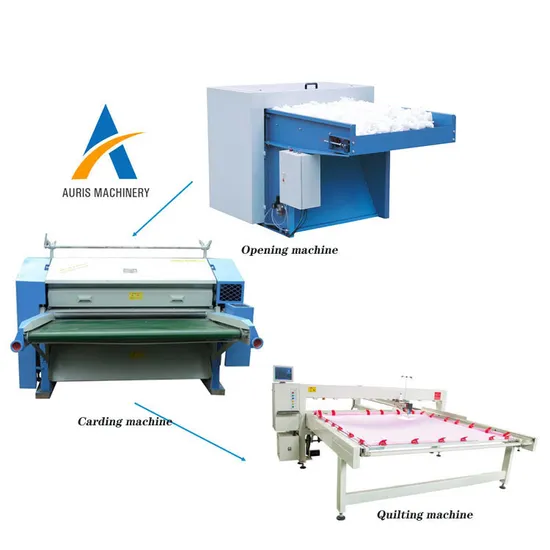

This fiber carding machine is mainly suitable for combing the opened chemical fiber raw materials into a uniformly distributed fiber web, which is rolled into the cylinder to form a quilt (cloud silk quilt, space quilt, wool quilt, summer quilt, etc.).
1. Wide processing range, one-time molding, simple operation.
2. The dust removal device is integrated with the equipment to reduce the floor area and save space.
3. The machine itself has a large weight, stable operation and no ripples.
4. The discharge port is driven by belt to prevent accidents such as twisting.
5. With a fully enclosed design, safety comes first.
6. The outer cover has a split structure, which makes it easier to clean the roller.
Product Parameters

Model	AHJ-2000
Machine size	2500*2700*2300mm
Machine weight	1900kg
Voltage	380v/50hz/three phase
Power	5.8kw
Working width	2000mm
Capacity	40-80kg/h

Detailed Photos

1. The working width of the machine has three specifications to choose from: 1700mm, 2000mm, or 2500mm.
2. The diameter of the drum of carding machine can be selected in a size between 72~75cm.
After materials such as fiber or wool are combed, customers can trim them to their desired size. After being loaded into the quilt cover, it can be used with the quilting machine.
Before and after carding
