3 Roll Rubber Sheet Film Calender Hot Press Calender

Product Description

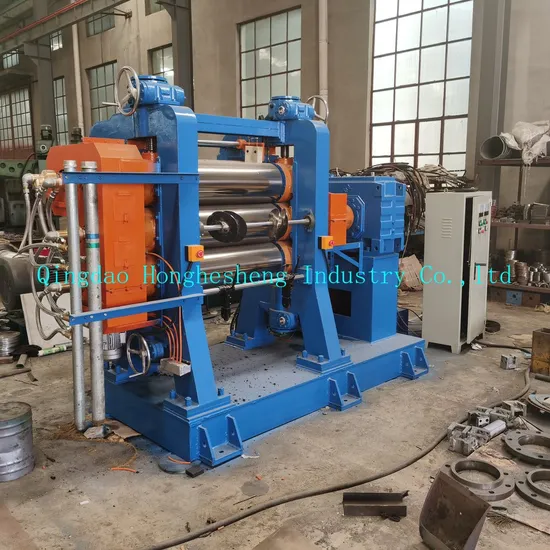

3 roll Rubber Sheet film calender hot press calender
Calender is composed of two or more rollers, arranged according to the heating method, can be divided into cold pressing and hot pressing
cold pressing is suitable for materials that do not need heating, such as graphite film, graphite sheet, absorbing materials, shielding materials, magnetic materials, non-ferrous materials, etc.
Hot pressing is divided into water heating, electric heating, oil heating and electromagnetic heating. At a certain temperature, the rubber, silicone, silicone rubber, phase change materials, PTFE or plastic and other materials are pressed and extended into a certain thickness and surface shape of the film, and can be fiber curtain canvas or steel cord hanging machinery.
According to the number of rolls, the calender can be divided into two rolls, three rolls, four rolls and five rolls. According to the arrangement of rollers can be divided into "L" type, "T" type, "F" type, "Z" type and "S" type.

	XY-3 252 x 720	XY-3 360 x 1120	XY-3 400 x 1200	XY-3 560 x 1680	XY-3 610 x 1730	XY-3 710 x 1800	XY-3 710 x 2130
roll diameter (mm)	252	360	400	560	610	710	710
roll working length (mm)	720	1120	1200	1680	1730	1800	2130
roll ratio	1:1:1	1:1:1 0.733:1:1 0.733:1:0.733	1:1:1 1:1.38:1.38 1:1.38:1	1:1:1 1:1.5:1	1:1:1 1:1.4:1	0.5-1	1:1:1
middle-roll linear speed r/min	2-15.9	3-20	3-26.39	3-30	5.4-54	4-40	8-50
adjusting np range (mm)	0-10	0-10	0-10	0-10	0-20	0-30	0-20
min. calendering product thickness (mm)	0.2	0.2	0.2	0.2	0.15	0.2	0.15
calendering product width (mm)	550	920	1000	1500	1500	1600	1900

motor power (Kw)	22	45	55	110	160	90kw x2 110kw x 1	185
overall dimension (mm) L x W x H	3950 1150 1290	6500 1500 2440	6300 1500 2440	7680 2500 3900	7010 3950 3730	9950 3050 4540	7650 4560 4080
about weight (ton)	5.5	14	18	37	42	90	97

Online price is not accurate, please refer to the actual quotation

Company introduce


Qingdao Honghesheng Industry Co., LTD, which is located in the west coast of Qingdao economic district, with 10 million registered capital. The company covers an area of 5000 square meters with 26 professional and technical staffs and 5 senior engineers. The technical staffs have working experience in large tire enterprise who can design more suitable equipment for the customer as for tire production process. Also they can provide new factory site planning and other services.
The company's main products are: Rubber kneader, rubber mixing mill, rubber sheet cooling machine, inner tube production line,tyre production line, vulcanizing press, waste tyre recycling plant…The products have been sold to 20 provinces in China and exported more than 10 countries and areas. The stable quality and timely service obtain the positive feedback and are high praised.
"Quality, integrity, innovation, service"is the aim of our company. We would like to promote cooperation with national new and old customers and foreign clients and seek common development.
we can supply the material mixing machine like kneader ,open mix mill, hot press

FAQ

1. Q: Are you a manufacturer or training company?
A: We are the manufacturer. We have our own plant,worker and techniques research developing department.

2 .Q: Where is your factory located? How can I visit there?
A: Our factory add is Tieshan industrial Park, Jiaonan, Qingdao, Shandong province, China.
Nearest airport is Qingdao liuting international airport
Kindly send plane information in advance, so that we can pick you up at the airport, and book hotels as you require.

3. Q: What are your hot sale machine?
A: Our rubber and plastic machines are popular in the foriengn market. And main products are tyre recyling plant ,press machine and other machine.

4. Q: How does your factory do regarding quality control?
A: Quality is priority and we have our own quality control department. We win make a strick inspectin before the machines leave the factory.

5 .Q: Are the techncal parameter is fixed?
A: Basically, each model corresponding to the related machine. But we can design different type machine according to the client's requirement.
