Steel Wire Reinforced Composite Pipe Srpe/Srtp Pipe for Water Supply/Fire Extinguisher/Mining Systems

Product Description

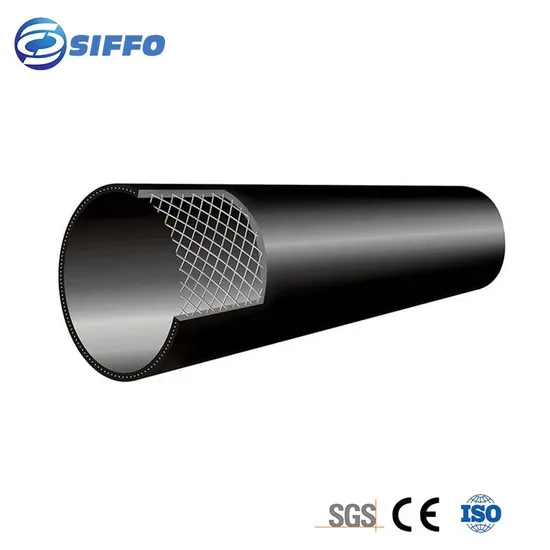

Steel wire mesh reinforced HDPE composite pipe
Steel wire meshe reinforced composite HDPE pipe (SRTP) is a new type of medium high and low pressure composite pipe that uses high-strength plastic steel wire as the reinforcement material, and both the inner and outer layers are double-sided composite thermoplastic plastics. Due to the steel bars being covered in continuous thermoplastic materials, this composite pipe not only overcomes the respective shortcomings of steel pipes and plastic pipes, but also has the common advantages of steel pipes and plastic pipes. It has the characteristics of tensile resistance, high pressure resistance, and high temperature resistance.
It is a solution for large-diameter rigid pipelines urgently needed in fields such as construction, municipal engineering, petroleum, chemical and pharmaceutical industries, food, mining, and natural gas. The fittings used in the steel wire mesh plastic reinforced composite pipe system are electric hot melt fittings. When connecting, use the internal heating element of the pipe fittings to melt the outer plastic of the pipeline and the inner plastic of the pipe fittings, making them reliably connected.
Main features:
1. Corrosion resistance to wide range of corrosive media.
2. Non-toxic, safe and hygiene, ideal for use in environment friendly water supply-drainage pipeline and gas pipeline.
3. Good sealing. Electric hot melting is used for jointing the pipes and pipe fittings are fused together, forming a no-leaking joint.
4. High resistance to underground movement and loading at pipe end. Stress releasing characteristics of polyethylene can effectively release the internal stress of the pipe through deformation and thus the pipe has sufficient resistance to pipe end stress and no expensive way of anchoring is necessary for pipe laying.
5. Good resistance to rapid crack propagation (RCP) and slow crack growing (SCG).
6. Good hydraulic property. Because the pipe's inner wall is smooth, resistance to medium flow is low and capacity of delivery is higher than conventional pipe by 30%.
7. Good toughness and possible seismic resistance
8. Good dimensional stability and impact resistance.
9. Easiness in laying. If buried, the pipe can withstand abrupt impact load caused by land subsidence, land sliding, vehicle, etc. with no need to have concrete foundation, and thus pipe installation is quick construction cost is lessened.
10. Long service life: Service life for safety use is 50 years.
11. Wide application range. The pipe can be widely used in municipal utilities (gas delivery and distribution pipelines, buried water supply-drainage pipeline, pharmacy, metallurgy, mining, etc.as well as in agricultural irrigation system).
Specification:

Diameter(mm)	Wall thickness(mm)
	0.8Mpa	1.0Mpa	1.25Mpa	1.6Mpa	2.0Mpa	2.5Mpa	3.0Mpa	3.5Mpa
50	-	4.5	4.5	4.5	5.0	5.5	5.5	5.5
63	-	4.5	4.5	4.5	5.0	5.5	5.5	5.5
75	-	5.0	5.0	5.0	5.0	5.5	6.0	6.0
90	-	5.5	5.5	5.5	5.5	5.5	6.0	6.0
110	-	5.5	5.5	7.0	7.0	7.5	8.5	8.5
125	-	5.5	5.5	7.5	8.0	8.5	9.5	9.5
140	-	5.5	5.5	8.0	8.5	9.0	9.5	9.5
160	-	6.0	6.0	9.0	9.5	10.0	10.5	10.5
200	-	6.0	6.0	9.5	10.5	11.0	12.0	12.0
225	-	8.0	8.0	10.0	10.5	11.0	12.0	12.0
250	8.0	10.5	10.5	12	12	12.5	14.0	14.0
280	9.5	11.0	11.0	12.0	13.0	15.0	15.0	17.0
315	9.5	11.5	11.5	13.0	13.0	15.0	15.0	18.0
355	10.0	12.0	12.0	14.0	14.0	17.0	17.0	19.0
400	10.5	12.5	12.5	15.0	16.0	17.0	17.0	-
450	11.5	13.5	13.5	16.0	18.0	18.0	-	-
500	12.5	15.5	15.5	18.0	19.0	22.0	-	-
630	20.0	23.0	23.0	26.0	26.0	-	-	-
710	23.0	26.0	26.0	30.0	-	-	-	-
800	27.0	30.0	30.0	34.0	-	-	-	-
900	29.0	33.5	33.5	38.0	-	-	-	-
1000	34.0	37.0	-	-	-	-	-	-

Application:
Municipal engineering: urban building water supply, drinking water, fire water, heat network backwater, gas, natural gas transmission, highway buried drainage channels.
Oil and gas filed: oil-hearing sewage, gas filed sewage, oil and gas mixture, secondary and tertiary oil recovery and gathering and transportation process pipe.
Chemical industry: acid, alkali, salt manufacturing industry, petroleum, chemical, fertilizer, pharmaceutical, textile, printing and dyeing, rubber and plastic industries to transport corrosive gas, liquid, solid powder process pipe and discharge pipe.
Electrical engineering: process water, backwater, water supply, fire water, dust removal, waste residue and other pipelines.
Metallurgical mines: used for conveying corrosive media, pulp, tailings, ventilation pipes and process pipes in the smelting of non-ferrous metals.
Sea transportation: desalination plants, seaside power plants, sea transportation in harbor cities.
Shipbuilding: ship sewage pipe, drain pipe, ballast pipe, ventilation pipe and so on.
Agricultural sprinkler irrigation: deep well pipe, filter pipe, culvert conveying pipe, drainage pipe, irrigation pipe etc.
Connection:
1.Electrofusion connection
2. Flanged connection
Company introduction
Shandong Siffo Plastic Technology Co., Ltd. is a professional supplier of HDPE & PVC pipes, is the first national high-tech enterprise in Hedong District. The factory is located in Shandong Province, and we have over 10 years of experience of producing HDPE pipes, PVC pipes, corrugated pipes, and all kinds of fittings, and 5 years exporting experience, our factory covers more than 25,000 square meters. And we have 20 engineers and about more than 100 workers.
The company has first-class production equipment and advanced detection equipment , has accumulated a large number of professional and technical elites, specializing in R & D, production and sales of plastic products, metal products and rubber products. The annual production capacity of various types of products for company reaches 100000 tons.
