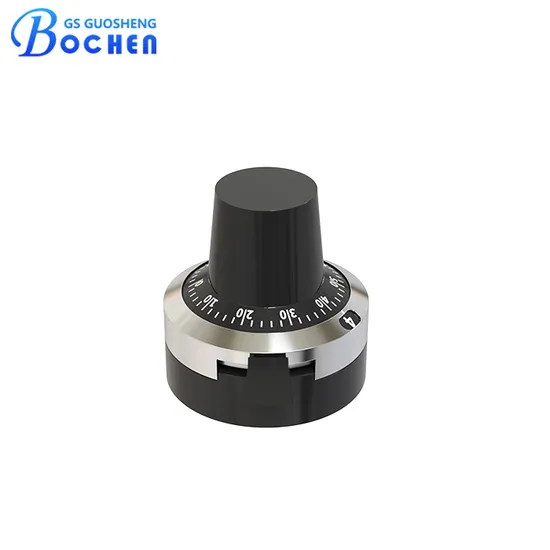

Sifam 17mm Black Metal Digital Dial Potentiometer Knob for 6mm Shaft

Product Description

Sifam 17mm Black Metal Digital Dial Potentiometer Knob For 6mm Shaft


Quick Detail

• No backlash.
• Compact-requires minimal panel space (22.2 mm diameter requirement).
• For use with precision potentiometers or other rotating devices, up to 15 turns.
• Designed for metal shaft.
• Black on polished chrome background.
• RoHS compliant.

Description

The H-23-6A Turns-Counting Dial is a precision instrument designed for accurately counting and displaying turns or rotations in various mechanical and electrical applications. It features a robust construction and precise gearing mechanism that ensures reliable performance and durability even in demanding environments.

Key features of the H-23-6A Turns-Counting Dial include:
• High Accuracy: Provides precise counting and display of turns or rotations, essential for applications requiring exact measurement and control.
• Durable Construction: Built to withstand mechanical wear and environmental factors, ensuring longevity and consistent performance.
• Clear Readability: Offers clear and easy-to-read markings, facilitating quick and accurate reading of counted turns.
• Versatile Applications: Suitable for a wide range of uses including in industrial machinery, equipment calibration, and electronic devices where precise counting and control are critical.

Whether used in production machinery, laboratory instruments, or electronic testing equipment, the H-23-6A Turns-Counting Dial stands out for its reliability and accuracy, making it a preferred choice for engineers and technicians needing precise rotational measurement capabilities.


Specification

Model	External Diameter	Height	Axle Hole Diameter	Shaw Center Distance	Number Of Turns	Character Displaying On Window	Fix Way
H-23-6A	22 mm	24 mm	6.35 mm	9 mm	0~9	One Digit	Fixed By Screw

Dimension

Dimensions in mm, tolerances ±0.30 mm unless otherwise specified.


Packaging

Packaging specification: 1.50 pieces/box, 200 pieces/small carton. 2.1000 pieces/master carton/65*35*30cm/22KG. 3.customization package is available.


Application

The H-23-6A Turns-Counting Dial is a precision device used for accurately measuring and displaying the number of turns made by a rotary component, such as a potentiometer or a variable capacitor. It is commonly utilized in various specific devices across multiple industries. Here are some key applications:
• Industrial Equipment:
Control Panels: Used for precise adjustment and calibration of control settings in industrial machinery and automation systems.
Test and Measurement Instruments: Essential for accurate setting of variable resistors and capacitors in devices such as oscilloscopes, signal generators, and multimeters.
• Communication Devices:
Radio Transceivers: Employed in fine-tuning frequency settings for clear and stable communication.
Antenna Tuners: Used to adjust and measure the turns in tuning coils for optimal signal reception and transmission.
• Medical Devices:
Diagnostic Equipment: Ensures precise calibration of imaging devices like MRI and CT scanners, contributing to accurate diagnostic results.
Laboratory Instruments: Utilized in equipment such as spectrometers and centrifuges for fine adjustment of operational parameters.
• Aerospace and Defense:
Avionics Systems: Critical for setting and monitoring control parameters in flight instruments and navigation systems.
Communication Equipment: Used for precise control and calibration in various communication and navigation devices.
• Consumer Electronics:
High-End Audio Equipment: Ensures accurate adjustment of audio settings in amplifiers and equalizers for superior sound quality.
Home Automation Systems: Used in devices requiring precise calibration for optimal performance.
• Automotive Systems:
Engine Testing and Calibration Tools: Employed for fine-tuning and measuring adjustments in test equipment used for engine diagnostics and performance tuning.
Dashboard Calibration: Ensures accurate calibration of dials and gauges in automotive control panels.
• Renewable Energy Systems:
Solar Power Inverters: Used for precise adjustment of voltage and current settings to optimize energy conversion efficiency.
Wind Turbine Controllers: Ensures accurate calibration of control parameters for maximum energy output and stability.
• Scientific Research Equipment:
Microscopes and Optical Instruments: Used for fine adjustment and calibration of focus and other settings.
Particle Accelerators: Critical for precise control in experimental setups requiring accurate measurement of adjustments.
The H-23-6A Turns-Counting Dial is a versatile and reliable component, essential for precise measurement and control in a wide range of advanced electronic systems and devices. Its application across various industries highlights its importance in achieving accurate and consistent performance.


Advantage

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, REACH, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM & ODM available.
