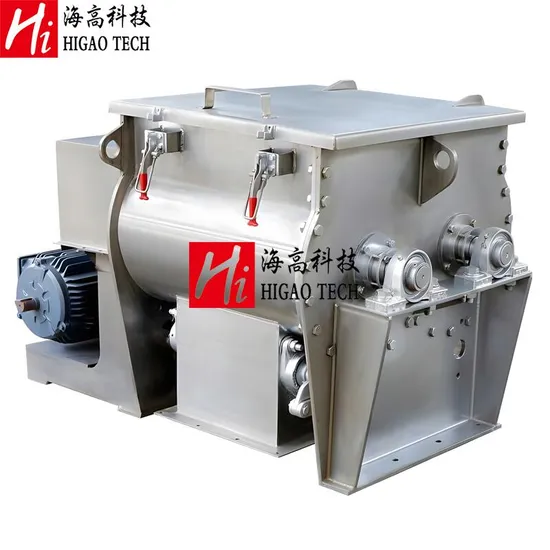

Double Shaft Paddle Mixer Herb Spice Chilli Powder Blending Machine Price

Product Description

Product Description
1. Introduction:
Non-gravity double shaft paddle mixer is used to mix dry bulk solids like powder, granules, fiber, and mix bulk solids with liquids (moistening + granulating coating) or pastes.
Double shaft paddle mixer is designed and engineered for intensive mixing of two different wet and dry materials, or blending liquids and sludges with dry solids. These raw materials include sticky clays, sludges, filter cakes, silty soil, sandy soils and other abrasives.
2. Working Principle:
Double shaft paddle mixer consists of two parallel shafts with blending paddles fixed at a pre-determined angle. Blending paddles agitate materials, then make the movement of materials reach the critical rotation speed and there it can throw the materials to the highest point of the parabola. The critical point is called non-gravity point or zero-gravity point. So we sometimes people call this double shaft paddle mixer as Double shaft non-gravity mixer, or zero-gravity mixer, weightless mixer.
Relative rotation of the mixing paddles results in higher mixing efficiency.
Double shaft paddle mixer promotes a homogeneous mix for different particle sizes and density of the materials.

(DPM Series) Non-Gravity Double Shaft Paddle Mixer (Twin Shaft Paddle Mixer) of HIGAO TECH
Model	Total volume	Loading volume	Working capacity	Spindle speed	Motor	Dimension(L×W×H)	Weight
DPM-100	100L	60L	60kg	49rpm	3kw	1200×1100×750mm	300kg
DPM-200	200L	120L	120kg	41rpm	4kw	1250×1150×950mm	650kg
DPM-300	300L	180L	180kg	41rpm	5.5kw	1400×1250×1050mm	500kg
DPM-500	500L	300L	300kg	37rpm	7.5kw	1450×1500×950mm	800kg
DPM-1000	1000L	600L	600kg	33rpm	11kw	1800×1850×1350mm	1200kg
DPM-1500	1500L	900L	900kg	33rpm	15kw	1850×1950×1200mm	1500kg
DPM-2M3	2M3	1.2M3	1200kg	31rpm	15kw	2200×2400×1600mm	2200kg
DPM-3M3	3M3	1.8M3	1800kg	29rpm	22kw	2300×2300×1650mm	3500kg
DPM-4M3	4M3	2.4M3	2500kg	29rpm	22kw	2700×2400×1850mm	4500kg
DPM-5M3	5M3	3M3	3000kg	23rpm	30kw	2950×3100×2100mm	6000kg
DPM-6M3	6M3	3.6M3	3600kg	23rpm	37kw	3100×3200×2100mm	7000kg
DPM-8M3	88M3	4.8M3	4800kg	21rpm	45kw	3200×3300×2200mm	8000kg
DPM-10M3	10M3	6M3	6000kg	21rpm	55kw	3550×3350×2400mm	9500kg
DPM-12M3	12M3	7.2M3	7200kg	17rpm	75kw	4700×3600×2500mm	11000kg
DPM-15M3	15M3	9M3	9000kg	17rpm	90kw	5000×4000×2700mm	12000kg

Company Profile
Why choose us?
1. Real Steel Material: we have spectrometer for customer to check the material.
2. High machining accuracy: we use top brand CNC machining center, plasma and laser cuting machines, etc. to process components.
3. Professional work team: 10 engineers more than 20 year experience in R&D. Some production staff more than 30 year experience.
4. Standard production rules: we follow 5S industrial management standard to carry out our orders.
5. Strict quality control: we have QC to follow and check each working procedure as per industrial standard.
6. Customer approval: we have served more than 1000 customers in more than 50 countries.
7. Competitive price: German quality with Chinese price
FAQ 1. How can I know your quality?
Our company is famuous in our industry. We have more than 20 years history. The best way to know the quality is comparison. You can come to our factory for on-the-spot investigation. You are welcome.
2. Can you supply sample test?
Of course our company can supply sample test before buying. And record the testing result and send to you by pictures or video.
3. What is your delivery time if I place order?
Usually 30~60 days. It depends on the machine itself, our actual order status.
4. Can you supply installation and commissioning service abroad when we received our equipment?
Yes, our company can send our engineers to your local workshop to guide installation and commissioning and training your operators.
5. How to operate and maintain the machine?
We will give you operation manual, drawing, circuit diagram spare parts list, etc after shipping.
6. What should I do if we can not solve the problems some times?
You just need to send email or make a call to us. We will reply within 12 hours and analyse the problems with you. Find the reason and find the way.
If we can not solve by communication after trying several ways, we can send our engineer to your place if you need.
7. What is your warranty period?
We supply one year warranty and life time after sales service for our euqipment.
It's the right time to E-mail and Make a Call Now!
