Multi High Layer Ply Digital Leather Cloth Knife Cutter Plotter Equipment Production CNC Automatic Fabric Cutting Machine for Garment

Product Description

Product Paramenters

Product Model	BZ-GSD1725	BZ-GSD2030	BZ-GSD2330	BZ-GSD2630	Customizable Model
Cutting Range (W*L)	1.70m*2.5m	2.0m*3.0m	2.30m*3.0m	2.60m*3.0m	Customizable size
Production Capacity	650 pairs of pants per hour, 500 pieces of clothing per hour, 6000 pieces of medical gowns per hour
Applied Materials	Fabric,Textiles,Lace,Car interior,Fur,Leather,Denim,Calico,PVC,Foam,Cardboard,Acrylic,Curtain,Carpet,Gesket,etc.
Cutting length	No limitation with automatic fabric feeding system
Maximum Speed	0-70m/min
Cutting Precision	± 0.1mm
Total Power	18KW
Power Supply	220V/380V , 50/60HZ
Cutting Style	Straight Knife Continous Up-down Cutting
Blade Cooling	Automatic temperature control air-cooled system and water cooling system
Adsorption method	Frequency conversion vacuum constant pressure control mode
Control System	The self-developed system is well compatible with any version of CAD software
Other functions	Mobile cutting device, automatic feeding device, pattern scanning, adsorption bed
Main components	1. Automatic multi-layer cutting bed 2. automatic cloth spreading machine 3. air floatation table
Main Accessories	Motor	Guide Rail	Switch	Knife Drive	Conveyor Belt
	Panasonic	HIWIN	DELIXI	Maxon	German

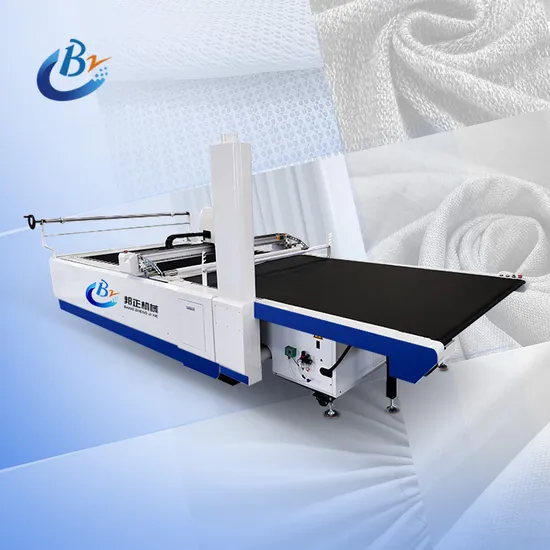

AUTOMATIC MULTI-LAYER CUTTING MACHINE
BANGZHENG Automatic Multi-layer cutting machine
--This product is a cutting device specially designed for flexible materials, fully automatic computer control, one-button design layout, cutting thickness 0.1cm-11cm, suitable for multi-layer cutting.
--The maximum cutting speed is 70m/min, and the cutting accuracy is within 0.1mm, which is far higher than the traditional manual cutting efficiency.
--The built-in intelligent typesetting software can achieve a material utilization rate of more than 98%.
--Automatic material collection and feeding can save 5-6 labors, and the cutting process is smokeless and odorless Product Description
Automatic Multi-layer cutting machine
--Suitable for mass production in textile, furniture, automotive interior, luggage, outdoor and other industries.
--Equipped with high-speed electronic vibration cutter, it can cut soft materials at high speed, high precision and high intelligence.
--Equipped with crawler conveyor, automatic loading and receiving, completely saving labor costs.
--1.Straight blade:Various blade sizes(7cm/9cm/11cm) to accomodate different fabric types.
--2.Corrugated blade:Specially used for leather, PVC fabric and other materials, reducing friction and knife sticking, and improving cutting efficiency.
Application and Samples
Simple&Efficient Operation Process
--The BZ2025-cutting software system we developed can design a complex set of clothing templates within 3 seconds with just one click.
--One click transfer of layout graphics files to the cutting machine for automatic cutting. After cutting, the material is automatically transported to the receiving table.
Product Details Information
New multi-layer cutting system
Cutting While Feeding,High-precision feeding without waiting, Cutting efficiency increased by 30%.
Automatic knife sharpening system
Automatically compensate knife sharpen according to blade wear, improving cutting precision.
Knife cooling system
Reduce tool heat to avoiding material adhesion,Ensure long-term stable operation of the blade.
Lathe bed structure
The high-strength integrated frame is processed by imported milling machines to ensure the smoothness of the guide rail, greatly improving the stability and accuracy of the cutting process.
--1.Professional CAD/CAM software, efficient material layout, easy operation, labor-saving, enjoy free upgrades and lifelong training
--2.Automatic sensor system for secondary film cover,Prevent air leakage, saving energy.
--3.Panasonic servo motor, powerful, cutting machine equipped with 4-5 motors working simultaneously, cutting speed ultra fast, precise control.
--4.China Taiwan's HIWIN stainless steel guide rail is non slip and can achieve μm level positioning accuracy; Load capacity can reach over 1 ton, durable and long-lasting.
--5.All components come from top international brands such as Delixi, Omron, Siemens, Panasonic, etc,stable and durable, and all enjoy quality assurance.
--6.High efficiency max 18 KW vacuum pump, capable of continuously variable speed, adjustable adsorption force, and negative pressure in the cutting area up to -22Kpa.
Why Choose Us
What kind of support you can get from Bangzheng?
1.--3 year warranty,Provide a full range of technical support for life.
2. --7 * 24-hour. Experienced technicians guarantee lifetime online support (via whatsapp/skyper/wechat/email/video conference). We have enough after-sales staff, so there is no need to worry about technical support caused by time difference.
3.--Local on-site installation and engineer training, with about 60G of after-sales installation videos provided.
Customer Photos
Packaging & Shipping
--1. Outside package: Standard marine export plywood case.--2. Inner package: Stretchy film and plastic film for humidity.--3. We can package according to your requests.
Company Profile
--Bangzheng Machinery Group is located in Jinan City, covering an area of 20,000 square meters. It is the largest flexible material cutting physical factory in northern China. As a professional manufacturer with many years of industry experience, we have established a good reputation for quality and reliability. We are a comprehensive flexible material cutting solution provider and manufacturer.
--There are 30 R&D engineers, 168 production technicians, 53 market service experts, and 39 overseas after-sales engineers. Our products serve more than 80 countries and 1,930 customers around the world, with an annual output value of more than 60 million US dollars.
--If you are looking for a reliable cutting solution provider for your business, Bangzheng Machinery Group is the right choice. Help you solve all production problems.
FAQ
1.-- Are you a factory or trading company?-We are a factory specializing in the production of cutting machines,we have lots of know how knowledge.-Each of our machines comes with a machine manual and a software manual. The company's backend stores a large number of machine installation and after-sales videos for your reference, and there is 24-hour online technical support. Until your machine can run smoothly.2.--Do you accept customized products?-Yes, our vibratory knife cutting machine is steady and reliable,Best-selling around the world.3.--Do you have agents or distributors in our country?-Yes, first of all, we have users all over the world, and we also want to find more suitable agents in your country. If you areinterested, please feel free to tell us and we will sell it to you at the best price of the agent.4.--What is the delivery process of the machine?-You can choose your transport and distribution by air,sea or land, we will plan the most suitable transportation method for you according to your requirements and budget.In order to recommend you the most favorable and suitable machine, please confirm the following questions:=======================================1) What is the maximum width and length of your material? What is the cutting thickness?2) How many kinds of materials do you want to cut?3) Do you have any doubts about our company and machines?4) Please tell us more requirements for cutting or other details===========================================After your confirmation, we will recommend you a suitable machine, thanks in advance.
