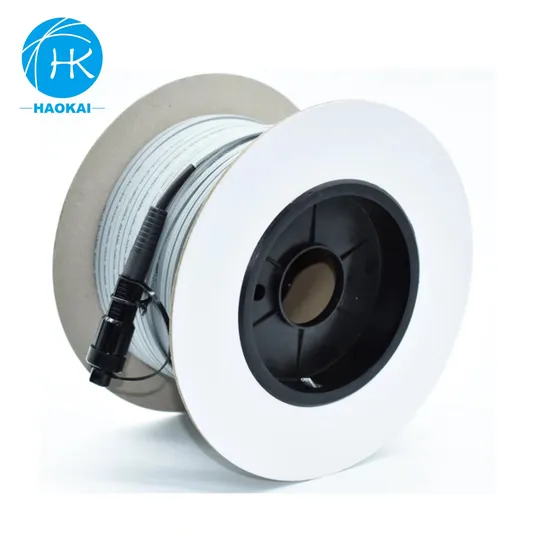

IP68 Grey Color Patch Cord Drop Fiber Optical Cable Sc APC Connector
| US$4.50 | 100 Pieces (MOQ) |
Basic Info.
Model NO.
Waterproof patch cord
Connection Structure
SC
Material Shape
Flat Wire
Allowed Lateral Pressure
100(N/100mm)<1000(N/100mm)
Allowed Tensile Strength
100N<1000N
Core
Single Core
Certification
RoHS, CE, ISO9001
Brand
OEM
Sheath Material
LSZH
Cable Color
White/Black/ Gray
Connector
Sc-Upc,Sc-APC
Fiber Brand
Yofc, Fiberhome, Corning
Strength Member
FRP, Kfrp, Steel Wire
Transport Package
Box/ Wooden
Specification
1m/30m/100m/150m
Trademark
HAOKAI
Origin
Dongguan
HS Code
85447000
Production Capacity
5000PCS/Day
Product Description
IP67 IP68 Waterproof Patch Cord Drop Fiber Optical Cable With SC / APC Connector Product Description FTTH Drop cable pigtails are used for linking the equipment and components in the fiber optic network. They are with various kinds of fiber optic connector types. The fiber optic Pigtail types are classfied by the fiber optic connector types. For example, we name SC fiber optic pigtail because this cable is with SC fiber optic connector. There are PC, UPC, APC type fiber pigail. They are different because of the polish of fiber connector.Product application 1.FTTx FTTH Systems.
2.Outdoor Areas.3.Harsh Environment.
Performance characteristics 1.Cost effective solution for in house termination.2. Low insertion loss and added loss.3.IP67 water, dust proof and corrosion resistant.4. The material in the jumper cable are all-weather and UV-resistan.
5.Mechanical performance: IEC 61754-4 standard.
6.RoHS and REACH materials compliant.
7.Cable diameter Range: 2.0*3.0mm, 2.0*5.0mm, 3.0mm, 5.0mm to 4.0* 7.0mm.
Product Parameters
| Fiber Type | SM (9/125um) | MM (50/125um, 62.5/125um) | |
| Polish | UPC | APC | UPC |
| Insertion Loss | ≤0.30dB | ||
| Return Loss | ≥50dB | ≥60dB | ≥30dB |
| Repeatability | 1000 times typical change value≤0.20dB | ||
| Interchangeability | ≤0.20dB | ||
| Fiber Type | G652D, G657A1, G657A2, G657B3, OM1, OM2, OM3, OM4, OM5 (optinal) | ||
| Operating Temperature | -20~+70ºC | ||
| Storage Temperature | -40~+85ºC | ||
