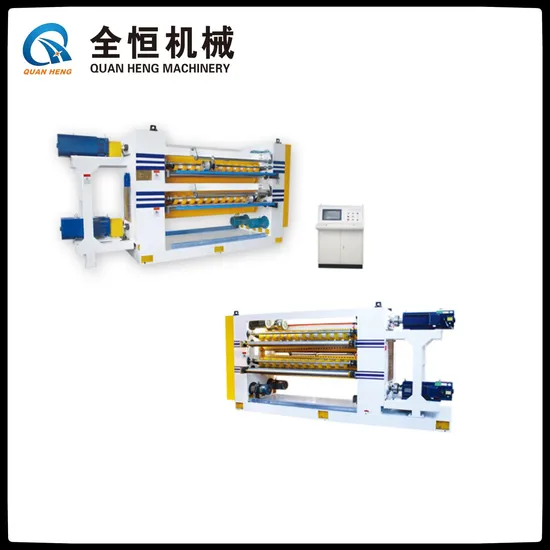

Qh Pack 2200 Corrugated Paper Board Production Line Double Layer Nc Cutter off Machine

Product Description

Product Description Double Layer NC Cutter off Machine
★it can store 200 units orders,replace the cutter specifications quickly and accurately,changing orders without stop,And enables networked computers to facilitate production management.
★Knife shaft drive gears are precision forged steel induction hardening, backlash-free transmission, advanced keyless connection, high transmission accuracy.
★Cutting machine adopts inlaid front steel blade knife spiral structure, serrated knife. scissors, shears, shear force, long blade life.
★around feed rollers are used the sun gear platen way, smooth delivery, pressure evenly, easy to crush plate board or cause blockage.
★This model is the braking energy storage (non-dynamic braking), so the energy consumption in the production process, the average electricity consumption is 1/3 of an ordinary NC cutting machine, saving more than 70% power to reach the goal of saving money .
★Precision adjustable no gap gear to ensure precise blade engagement, running balance.
★Using an independent oil pump and filter with two copper distribution in each gear position oil, lubrication and cooling.
★Knife roller: fine quality forged steel material, the balanced, with good stability.

effective width	2200mm
operation direction	left or right(determined to the customer's factory)
highest machinery speed	150m/min
Mechanical configuration	computer-control helical cross cutter
Minimum cutting length	500mm
Precision of cutting paper	uniform ±1mm,non-uniform±2mm
