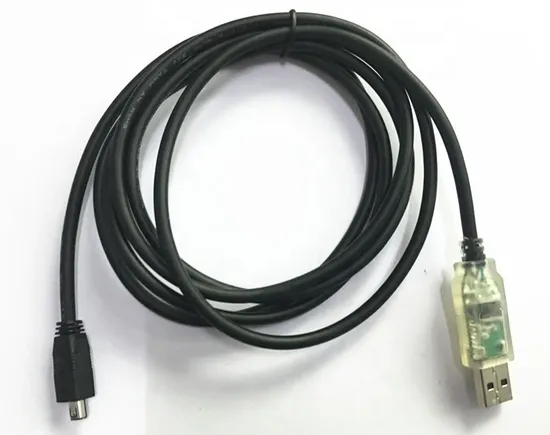

Ftdi Chip USB to Mini4p USB Programming Cable for Uniden Scanner Radio, PC Interface Cable

Product Description

FTDI Chip USB to MINI4P USB Programming Cable for Uniden Scanner Radio, PC Interface cable Product Description Product Description The USB_RS232 cables are a family of USB to RS232 levels serial UART converter cables incorporating FTDI's FT232RL /PL2303 USB to serial UART interface IC device which handles all the USB signalling and protocols. The cables provide a fast, simple way to connect devices with a RS232 level serial UART interface to USB.
Each USB-RS232 cable contains a small internal electronic circuit board, utilising the FT232R/PL2303, which is encapsulated into the USB connector end of the cable. The other end of the cable is Mini USB5Pin or Micro 5Pin or with other customized connectors.

Cable Specifications What is the specifications of our cable?

Name	usb rs232 to Mini USB cable
Model	caratar-URM01
IC	FTDI/PL2303 optional
PC Interface	USB 2.0
Device Interface	RS-232
Cable Material	Copper wire
Cable Size	0.35m,0.5m,1.5m,1.8m,3m can be optional
Transfer Rate	Standard RS-232 transfer rate
Color	black or customized
Pin out	TX,RX,CTS,RTS,DSR,DTR,DCD,RI VCC, GND optional
Package List	Cable, CD Driver is optional
System Requirements	Windows7,Windows8/Vista/XP/2000/ME/98SE Linux Mac OS 8.6 or higher
Application Area	USB Smart Card Readers,ISDN terminal adapter,Bar code scanner,USB Hardware Modem,PDA-USB data transfer,etc
Power Supply	Except power supply
Manufacturer	ShenZhen Utech Electronics Co.,Ltd

Product Features What is the details of our cable? 1.Perfect for use with modems, PDA's, cell phones, digital cameras and more.
2.WITH FTDI/PL2303 CHIPSET, Supports data transfer rates up to 1Mbps.
3.Supports remote wake-up and power management.
Pinout as below:
Product Description
This USB scanner programming/remote control cable replaces Uniden USB-1 cable
Compatible with Windows 32/64-bit, Mac, Linux, Android and others. Microsoft WHQL certified drivers
Works with FreeSCAN software. Programming software NOT included
COMPATIBLE WITH: BCT15, BCT15X, BC95XLT, SC230, BC246T, BR330, BC346XT, BCD396T, BCD396XT, BCD996T, BCD996XT
Connectors: USB Standard Type A, USB Mini 4-Pin
Programming cable for Uniden scanners
6ft USB scanner programming/remote control cable that replaces Uniden USB-1 cable
FTDI chipset for easy setup and reliable operation. Fully compatable with 32 and 64 bit Windows OS.
RX TX activity LED's to monitor data flow
Flexible cable with molded connectors on both ends
Q: Why I need this cable?
A: Instead of manually punching in the frequency settings, this cable allows you to program radio stations database to your scanner by your computer with programming software such as FreeSCAN and bcTOOL.
Q: Which prolific chipset does this cable use, and is it compatible with Windows 10?
A: This cable uses more reliable FTDI chipset. It is compatible with all Windows, Mac versions including the latest Windows 10 and Mac 10.13. Note: most free programming software is Windows based.
Q: Where I can download the driver software?
A: Usually this cable is plug and play and driver will be installed automatically by Windows/Mac. However, in rare cases depending on your computer setting, if you need to do manual installation, please go to FTDI website to download the driver. http://www.made-in-china.com/showroom/apple5462
Q: Does it work with BC346XT?
A: Please refer to the compatible models listed in product description. Two things are needed to make it work. First of all, the connector (mini 4P USB) need to be physically fit to your scanner. Secondly, the scanner has to use serial communication protocol and that is what this cable do: translate serial signal from the scanner to USB signal to the computer.
Please refer to the Application Guideline for more information

IC	FT232RL
PC Interface	USB 2.0
Device Interface	RS-232
Cable Material	Copper wire
Cable Size	0.35m,0.5m,1.5m,1.8m,3m can be optional
Transfer Rate	Standard RS-232 transfer rate
Color	black,tea or blue color
Device Support	RS-232 Interface

Introducing the Ftdi Chip USB to Mini4p USB Programming Cable for Uniden Scanner Radio, PC Interface Cable - the ultimate solution for seamless connectivity between your Uniden scanner radio and your PC. This high-quality cable is designed to provide a reliable and efficient connection, allowing you to effortlessly program your scanner radio and transfer data with ease.
Featuring a USB to Mini 4-Pin Programming Cable, this product ensures compatibility with a wide range of Uniden scanner radios. With its USB 2.0 A Male Serial Cable, you can enjoy fast and efficient data transfer rates, ensuring that your programming tasks are completed in no time. The USB to RS232 Mini 4p Serial Adapter Cable further enhances the versatility of this product, allowing you to connect your scanner radio to a variety of devices.
Crafted with precision and attention to detail, this programming cable is built to last. The Ftdi Chip USB to Mini4p USB Programming Cable is made from high-quality materials that guarantee durability and longevity. Its sturdy construction ensures that it can withstand the rigors of daily use, making it the perfect companion for professionals and enthusiasts alike.
With its plug-and-play functionality, this programming cable is incredibly easy to use. Simply connect it to your Uniden scanner radio and PC, and you're ready to go. No complicated setup or installation required. This cable is designed to seamlessly integrate into your existing setup, allowing you to focus on what matters most - programming your scanner radio.
In conclusion, the Ftdi Chip USB to Mini4p USB Programming Cable for Uniden Scanner Radio, PC Interface Cable is a must-have accessory for anyone looking to enhance their scanner radio experience. With its reliable connectivity, fast data transfer rates, and durable construction, this cable is the perfect choice for professionals and enthusiasts alike. Don't settle for anything less than the best - choose the Ftdi Chip USB to Mini4p USB Programming Cable and take your scanner radio to new heights.
