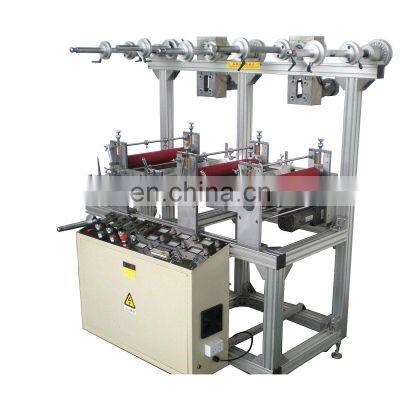

Multifunction multiply paper Laminating Machine

Product Description

Product Description
This machine is a special complex equipment for adhesive t ape plastering production such electronic label industry as mobile phone ,computer and LCD .Magnetic powder tension control is adopted for the rolling and up-wrap. Single-faced glue and double faced glue can be laminated .It has the function of receiving the bottom sheet and laminating many stips at one time and parially lamination coating. Standard function:Feeding_Film Fitting_Waste Discharging_Film Fitting_Waste Discharging _WindingFeatures:1. Max working width: 320mm2. Laminating thickness: Up to 5mm3. Laminating speed: 0.5-15m/min4. Tolerence: +/-0.2mm5. Precision: 0.1mm6. Under CE and ISO certificationFunctions:1. Multiple sets of film fitting shafts can perform film fitting, waste discharging for multiple strips and multi-layer material.2. The film fitting tensions of material is totally controlled from end to end by magnetic powder tension controller.3. It guarantees the flatness of film fitting material.4. Every film fitting plastic shaft can independently adjust the pressure and gap of upper and lower plastic shaft.5. It's easy and convenient to operate.After-service:1. Warranty for machine: 12months2. After-service: A reply within 24 hours3. A free training in our factory available before delivering machines Model DP-320DT DP-320DT UnwindingShaft(sets) 3 4 WindingShaft(sets) 2 3 MaxLaminatingWidth(mm) 320 320 LaminatingSpeed(times/h) 0-1800m/h 0-1800m/h LaminatingPrecision(mm) ±0.1 ±0.1 WindingDiameter(mm) 600 600 TensionController(sets) 6 8 PowerSupply(v) 220 220 Machineweight(kg) 300 400 MachineDimensions(mm) 1600x1500x1800 1600x1800x800 MachinePower 900 1200multi layer laminating machine1, three lamination group 2, 3 unwind 2 rewind 3, can connect to die cutting machine or sheeting machine 4, tension control 5, meter counter different color can be customizeautomatic unwind automatic rewind
