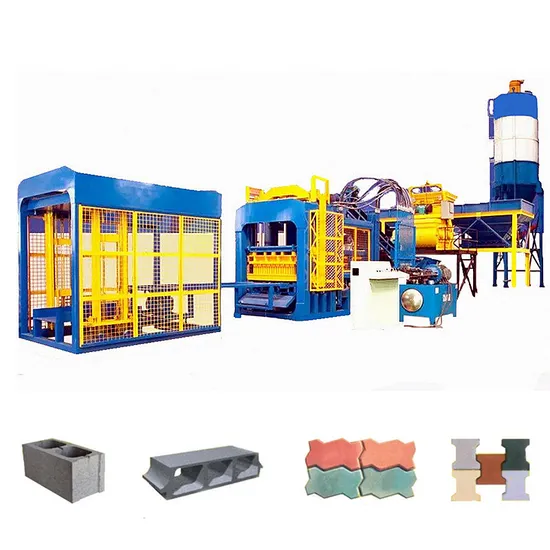

Qt8-15 Automatic Hydraulic Block Making Machine with Curing Room Cement Interlocking Brick Making Machine Fly Ash Hollow Solid Brick

Product Description

Product Description
Name: QT8-15 Automatic Hydraulic Block Making Machine
AS the molds are changeable, this concrete brick machine is able to produce different types of blocks/bricks, and this is a hydraulic machine can produces a stronger block, due to the greater pound pressure applied by the hydraulic system.

The block manufacturer can also realize substantial savings by using less cement. A ratio from 8:1 to 11:1 sand/cement can be achieved. This machine is designed for the manufacturer with a steady year turnover and with a certain number cash to make the factory running.

host machine size	3800*2300*2950mm
block making period	15s
vibrating force	70-100KN
host machine power	45KW
host machine weight	10.5T
Pallet size	1050*900*25/30mm
Brick types can make	all kinds of types, only need to change the molds.

automatic hydraulic fly ash brick making machine/paver block making machine price/concrete block making machine manufacturers
This machines can be equipped with an automatic elevator/skip for loading mix into hopper, agitator, an automatic pallet feeder, pallet ejector, brush for cleaning blocks and a run off conveyor
1. Electrical system adopts imported color touch screen and programmable controller PLC control equipped with data input/output device, control system including the safety logic control and fault diagnosis system.
2. imported hydraulic components and seal, high dynamic performance proportional valve, according to different work required control oil quantity and pressure, to the essence key components that control the action.
3. he machine adopts high precision, high strength castings and special welding technology and materials manufacturing, good rigidity, shock resistant, long service life. Product Parameters
Detailed Photos
automatic hydraulic fly ash brick making machine/paver block making machine price/concrete block making machine manufacturers Details highlight the quality Gemany Technology, China Produce
Material for making blocks
automatic hydraulic fly ash brick making machine/paver block making machine price/concrete block making machine manufacturers
This is the most popular proportion in making block making machine:1. Standard concrete block: Cement 9-12%, sand 40%, stone 45%, water 3% 2. Light concrete block: Cement 9-12%, slag 80-90%, water 3%3. Cement 9-12%, sand 10-20%, stone 30-40%, slag 25-50%, water 3%4. Cement 8%-10%, sand 30%-40%, stone 50%-60%5. Cement 8%, sand 60%, Fly ash 30%, gypsum 2%.
Packaging & Shipping
Whole life service:
Pre-Sale 1.Perfect 7*24 hours inquiry and professional consulting services. 2.Visit our factory anytime. In-Sale 1.Update the production schedule in time. 2.Quality supervision. 3.Production acceptance. 4.Shipping on time. After-Sales 1.Warranty period :1 year after acceptance, during this period we will offer free spare parts if they are broken. 2.Training how to install and use machine. 3.Engineers available to service overseas. 4.Skills support the whole using life.
Customer praise
Company Profile
Dongyue Machinery Group was built in 1994,and now Dongyue is a national large-scale designated building materials machinery manufacturer, a coalition of researching, producing and marketing, and services with registered asset of 234 million RMB, total asset of 1 billion RMB, total area of 1,332,000square meters, and over 1500 staff.
