Automatic Weighing Aggregate Batching Machine

Product Description

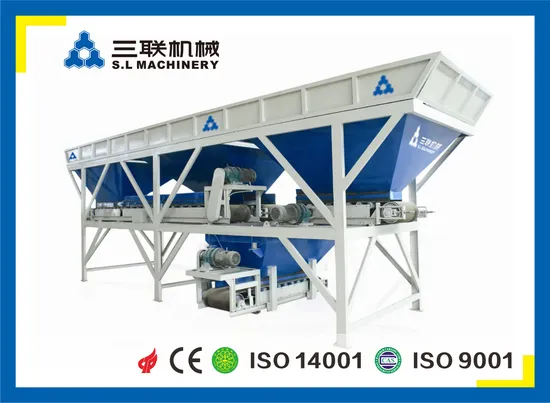

PL800 Batching Machine for Block Making Materials
Product Description
Batching machines are mainly used to mix different raw materials in specific proportions during the brick production process to ensure the quality of the bricks. The automated batching process reduces manual operations, improves production efficiency, and reduces labor costs. Batching machines are flexible in design and can adapt to different production needs and raw material types, suitable for a variety of brick production lines. Accurate batching reduces the waste of raw materials and improves the utilization rate of raw materials.
Features of Batching Machine
-------------------------------------------
1.Batching Machine With the standard of measurement permission, fast and slow batching measurement can be realized
2.Equipped with vibration device, to ensure smooth blanking.
3.According to different aggregate and the gradation of different production products, and the pre-set aggregate mix ratio, it adopts the automatic weighing of high-precision three-point induction sensor.
Product Parameters

Type	PL400	PL800	PL1600-2	PL1600-3	PL1600-4
Volume of Storage Hopper(m3)	7m³x1	2m³*2	7m³x2	7m³x3	7m³x4
Volume of Weiging Hopper(m3)	0.6	0.8	1.6	1.6	1.6
Productivity (m3/h)	25	48	80	80	80
Maximum Weighing Value	0.5T	1.5T	2T	3T	4T
Batching Category of Aggregate	1	2	2	3	4
Height of Loading (mm)	2950	2300	2950	2950	2950
Batcing & Unloading Method	Horizontal Belt Conveyor
Power(kw)	2.2	4	7.5	7.5	11
Net Weight(T)	2.3	3	4	5.4	7.3
Frame Dimension (mm)	3755x2387x3196	5470*1820*2700	5470x2387x3196	8510x2387x3196	11240x2387x3196

Detailed Photos
