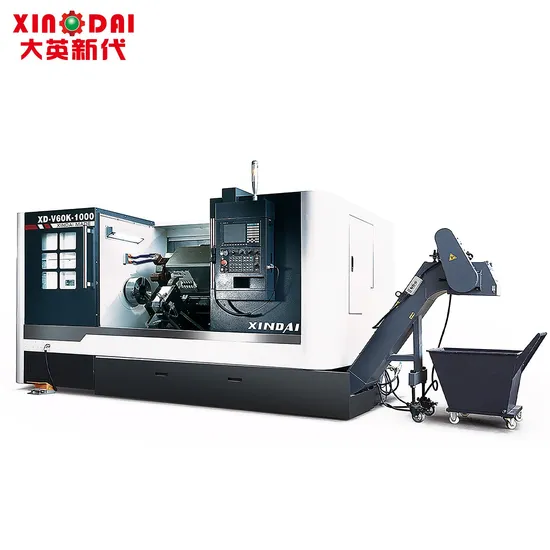

Long Axis Cutter Tower Tail Seat Xd-V60K-1000 Supporting Recutting Large Spindle

Product Description

1, the machine adopts a horizontal high-strength cast iron bed, the bed adopts a small giant design structure, the guide rail is placed horizontally, suitable for high-speed and high-strength cutting, with excellent reliability and accuracy retention.
2, supporting A2-6 or A2-8 heavy cutting type large spindle, strong rigidity, high precision, can easily cope with the heavy cutting of various steel parts.
3, the use of long stroke servo tail seat, with the tool holder, can easily process 1000mm long axis parts.
4, the main transmission system of the machine tool is driven by AC servo motor, with high efficiency synchronous belt to directly drive the spindle. Noise problems caused by the gearbox transmission chain are avoided.
5, X/Z axis adopts high-power servo motor and ball screw directly connected, feed torque is strong, high processing accuracy.
6, the configuration of high-performance large cutter servo tower, in the realization of rapid tool change at the same time, both good reliability and repeated positioning accuracy.
7, hydraulic chuck and tail seat sleeve expansion can be programmed and foot switch control.
8, the machine is fully enclosed protection, equipped with embedded chip removal machine and water tank, to avoid the leakage of coolant, chip removal smooth, loading and unloading convenient, easy to operate.
9, suitable for auto parts, transmission industry, wind power and other industries of long axis processing.
