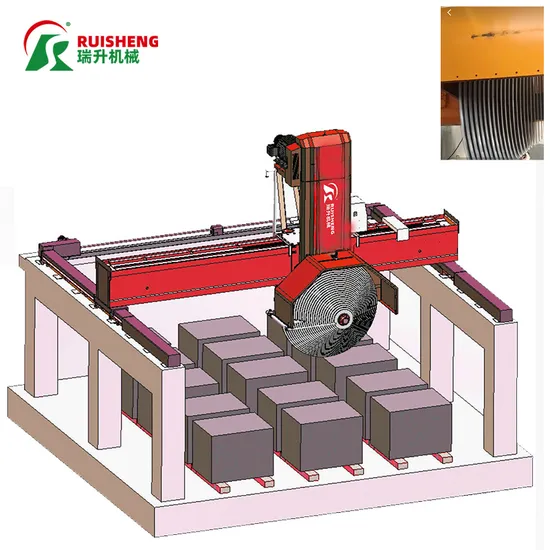

RS2800-18d Cutting Granite Stone Block Cutter Machine in Jaipur
| US$32,000.00-38,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
RS-2800
Type
CNC Cutting Machine
Usage
Granite, Marble
Application
Construction, Stone Industry
Source Voltage
380V
Automation
Automatic
Cutting Ability
High Speed
Certification
ISO, CE
Max Blade Diameter
2800mm
Max Processing Length
3300mm
Max Processing Width
2500mm
Max Lifting Stroke
1400mm
Water Consumption
15m³/H
Main Motor
37/55kw
Gross Motor
65kw
Gross Weight
13500kg
Transport Package
Standard Packaging
Specification
950*470*350cm
Trademark
Ruisheng
Origin
Fujian, China
Production Capacity
100pieces/Month
Packaging & Delivery
Package Size
950.00cm * 470.00cm * 390.00cm
Package Gross Weight
13500.000kg
Product Description
Product Description
| /Product name | /Unit | RQC-2200-4D PRO | RQC-2500-4D PRO | RQC-2800-4D PRO |
| /Blade diameter | mm | Φ2200 | Φ2500 | Φ2800 |
| /Maximum lifting stroke | mm | 1400 | 1400 | 1400 |
| / Maximum machining length | m | 3800 | 3500 | 3200 |
| / Maximum processing width | ne | 2200 | 2200 | 2200 |
| /Saw blade number | pcs | 3-18 | 6-18 | 9-18 |
| /Wate consumption | m3/h | 15 | 15 | 15 |
| / Main motor power | Kw | 45 | 55 | 65 |
| /Total power | Kw | 56 | 66 | 76 |
| /Weight | kg | 16000 | 16500 | 17000 |
| /Overall dimensions(LxWxH) | m | 8.0x4.4x3.7 | 8.0x4.4x3.7 | 8.0x4.4x3.7 |
RS-2200/2500/2800 uses a PLC system and Human-machine interface, combined with an Ultra-high precision rotary encoder to slice, uses an inverter to control left-right feeding, and adjusts the speed according to the stone material. It uses a hydraulic lifting system, and the forward-backward slicing uses high-precision screw nut driving, and automatic slicing, main spare parts adopt imported good-quality materials, The block can be placed on the ground directly and economize the worktable and its maintenance costs: The whole machine is featured with high cutting efficiency, high slicing precision, flatness of plate after cutting, high stability, easy-operating to suit granite and marble block with high value.
Note:360 rotating worktables can be selected if the customer requires it.
