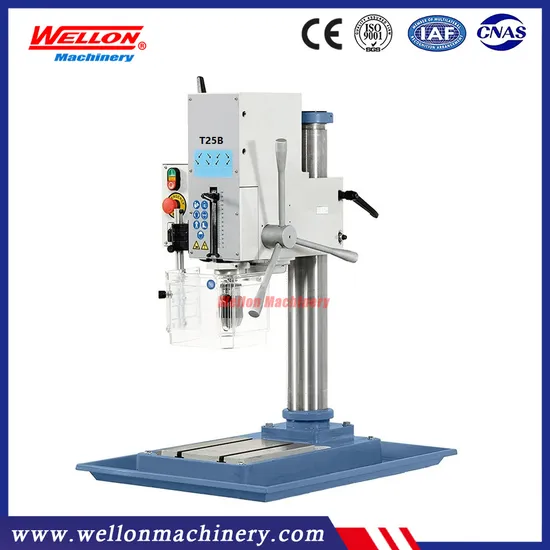

Gear Head Bench Drilling Machine T-25B Vertical Drilling Machine

Product Description

Product Description
Detailed Photos
Product Parameters

Performence Features: 1. Vertical drilling machines T25B has height adjustable and rotary function on head unit and working table, they
can provide proper drilling travel for various workpieces in different sizes.
2. The sleeve can be locked at any depth and the high-load tapered roller bearing guarantees the high-speed and
smooth running of the main spindle.
3. The rapid and reliable retracting, clear scale identification and the small feeding depth positioning device can
improve the drilling efficiency.
4. The power-off shield protection of our vertical drilling machine makes the work safer and efficient.
Main Technical parameter:

Model	T-25B
Max.drilling dia.(mm)	25
Spindle travel(mm)	125
Tapping capacity in steel /cast iron	M10/M16
Morse taper	MT3
Motor power(50Hz)	0.65kW/0.9kW
Motor power(60Hz)	0.8kW/1.1kW
Spindle speeds at (50Hz)	105-2900
Spindle speeds at 60(Hz)	130-3200
Packing size(cm)	94X46X73
N.W./G.W.	150/180kg

Standard accessories:
Drill chuck
Tapper sleeve
Wrench
Optional accessories:
Safety guard
Vice
Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining
Center,Lathe Machines,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.
