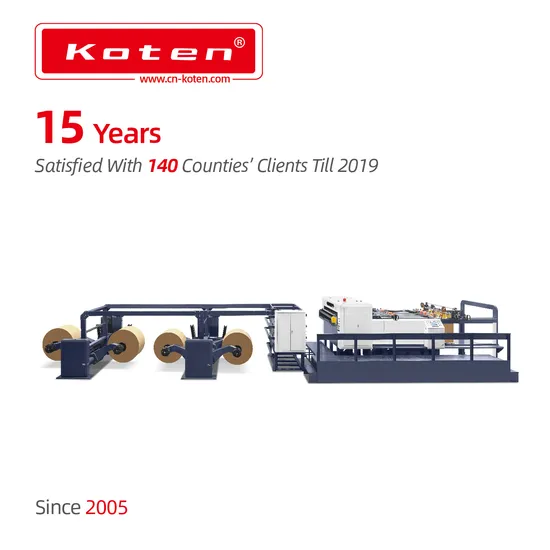

Kraft Paper/Paperboard/Grey Paper/Craft Paper Sheeter, Roll to Sheet Rotary Paper Sheeter for Sale
| US$40,000.00-70,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
GDQ1400/1700/1900-4
Driven Type
Mechanical
Type
Industrial Cutter
Blade Material
Steel
Computerized
Computerized
Servo Driven
Yes
Unwinding Roll
One
Precision
0.5mm
Process
Paper Machine
Usage
Packing Paper Cutting Machine
Automatic Grade
Automatic
Transport Package
by Strong Wooden Cases.
Specification
Export Standard
Trademark
koten
Origin
China
Production Capacity
100set/Month
Product Description
Process.
Finished Products.
Main features:
This machine is suitable for cutting the large coil packaging material, such as the paper, paper plastic complex material and color printing complex material, etc. This machine is widely used for application in the industries of paper processing and printing packaging.
Application range:
The machine is suitable for cutting in longitudinal direction and cross direction the colied materials like paper, trademarks, cigarette labels, wall calendars, spirits boxes, playing cards, paper-plastic compound materials, etc.
Function: Transverse cutting with flat blade, automatic feeding, automatic stowing and photoelectric tracking.
Main Specifications.
| Model | GDQ-1400-4/1700-4 |
| Unwinding rolls | Four |
| Max. diameter of unwinding roll | 1650mm(65'' MAX.) |
| Max. Stack Height | 1300mm |
| Transverse Cutting speed | 300m /min |
| Cutting Length | 400-1600mm |
| Precision | ±0.1mm---±0.5mm |
| Max. speed | 300cuts/min |
| Paper | 50-500gsm |
| Power | AC380V/220V/50HZ |
| Machine weight | 15000kgs/17000kgs |
| Power requirement | Max.5.5kg/cm2X5M3/min. |
| Machine size | 1700x3900x2350mm/1700x4200x2350mm |
