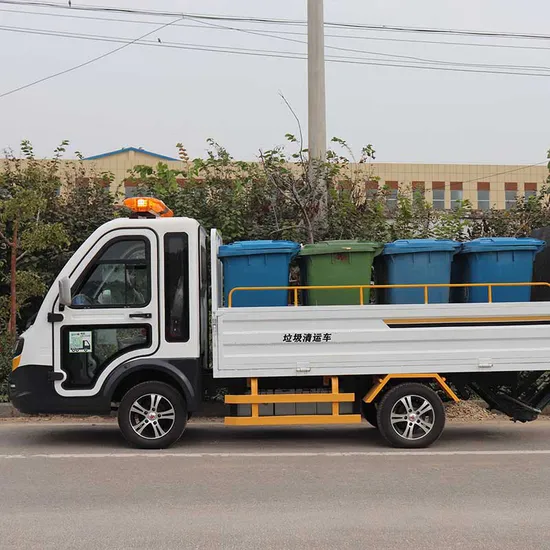

Small Flatbed Dump Body Electric Garbage Truck for Sale

Product Description

Product Description
Product Parameters

Items				Units		Parameters
Vehicle overall parameters	Curb weight			kg		1400
	Gross vehicle weight			kg		3500
	Payload			kg		1600
	Dimensions (l x w x h)			mm		3450*1400*2000
	Wheelbase			mm		2100
	Wheel tread		Front	mm		1250
			Rear	mm		1250
	Min. ground clearance			mm		200
Working parameters	Loading cab		Material	Double-sided anti-corrosion
			Volume	Trash bin 240L		8
	Loading trash bin capacity			L		120/240/660
	Loading time			s		30
	Unloading time			s		30
Traveling parameters	Cruise range			km		≥100
	Max. speed (unloaded)			km/h		≤30
	Max. climbing angle			°		15
	Braking distance			m		≤5
	Min. turning diameter			m		5.5
Chassis	Number of passengers			People		2
	Chassis			Manganese steel cold riveted splicing light truck chassis
	Drive motor power			Kw		7.5
	Power Supply			v		72
	Controller			V/A		72/400
	Speed control			Continuously Variable Transmission
	Battery		Type	Tianneng lead-acid maintenance-free battery
			Volume	V/Ah		72/200(Optional with larger battery )
	Charging time			h		6-8
	Front/rear axle			5-hole fully floating load axle
	Tyre			185R14C
	Braking method			Hydraulic Drum brake + Vacuum pump braking assist
Loading cab parameters	Loading cab			Adopting the sheet metal electrophoretic spraying process, the left and right sides of the box are equipped with side doors
	Air Conditioner (Optional)			Equipped with cold and warm air conditioning, with 360-degree adjustment of air outlet direction
	Driver cabin			Adopting a fully enclosed cabin ; The front windshield is made of tempered glass
	seat			Waterproof leather sponge seat
	Camera			Color camera of reverse image
Optional	Battery	Type		Lithium Battery
		Volume		V/Ah	72/200 (Optional with larger battery)
	Charging time	Standard		h	6-8
		Fast charging(Optional)		h	3-4

Production Line
FAQ Q1: How long is the warranty period for sanitation vehicles?
A: The whole sanitation vehicle is guaranteed for 12 months, except for wearing parts. (not including fragile parts).
Q2: Product positioning?
China's first research and development of mini electric washing and sweeping truck, Leaf collecting truck, small deep washing road sweeping truck, has been committed to building the "watertruck" brand, making high-end electric sanitation cleaning equipment,focusing on solving the world's sidewalks, non-motorized vehicle lanes, back street small governance solutions such as lanes, and cleaning solutions for areas that cannot be accessed by large sanitation vehicles.
Q3: What's the advantage of your company?
A: 1. The company has a young, experienced, and efficient R&D team, which is based on technological innovation and constantly promotes product iteration. Provide solid R&D technical support for enterprises.
2. Focus on the production of high-end electric sanitation equipment for many years, with rich experience. The production system is complete, with a production line workshop that can meet hundreds of vehicles, and a full range of small sanitation equipment such as garbage removal, road washing, leaf collection, water tanker trucks, and high-pressure road washing vehicles.
3. A strict quality management system runs through the entire production line. We strictly control all aspects of procurement, design, assembly, commissioning, testing, packaging, and transportation. Especially in the assembly and testing stage, each sanitation vehicle must pass more than 60 functional tests, which can effectively ensure the efficient and stable operation of the sanitation vehicle in various environments, and ensure the performance and quality of each sanitation vehicle.
4. Respond to customer needs the first time, and is committed to providing high-quality and considerate services to global customers.
5. Our company has national and provincial certifications, such as ISO9001, and a certificate of patent, etc.
Q4: Which kinds of batteries can we choose?
A: The standard is a Lead-acid battery, It also can according to your requirements, choose the lithium battery.
Q5: Can you produce as per the customer's special requirement, such as customer brand?
A: Yes, we can.
Q6: How to carry out after-sales service?
A: If it is in the warranty period, the parts are free. First, you need to provide the bad parts; then we will deliver new parts for free.
