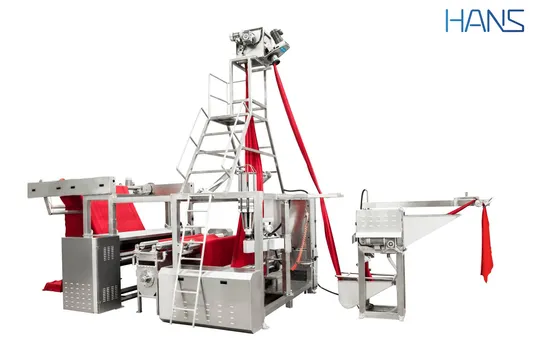

Stainless Steel Automatic Tubular Knit Dyeing Finishing Slitting Machine
| US$10,000.00-76,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HSL-2600
Material
Cotton Fabric
Voltage
380V
Load Capacity
>2000kg
Certification
ISO9001: 2000
Warranty
1 Year
Customized
Customized
Condition
New
After-sales Service
After Sales Service Available
Machine Width
2000mm-3600mm
Speed
100m/Min
Installed Power
25kw
Air Pressure
6-8 Bar
Transport Package
Standard Export Packing
Trademark
HANS
Origin
China
Production Capacity
8-10 Sets/ Month
Product Description
Stainless steel automatic tubular knit dyeing finishing slitting machineFeatures:
- Automatic rope opener device
- Fully stainless steel body, long working life
- High automation grade with PLC and inverter system
- High efficiency washing tank after slitting basket
- Fully automatic grade slitting basket
- Can be used for long pile towel fulffy washing process
- Single padder or double padder for dewatering or chemical permeation
- Automatic rotary filter devecie
- Low tension washing effect
- English version operation system
- Quite working condition
- Fully automatic operation or manual mode
- High squeezing capacity padder
- Low water consumption
- Complete stainless steel body
- Excellent detwisting result
Specification
| Model | HSL-2600 |
| Pre squeezer unit | Yes |
| Max. working width | 2400mm |
| Slitting basket | Fully Automatic |
| Washing tank | Single tank or double washing tank |
| Automatic filtering device | Rotary filtering |
| Padder | High efficieny padder |
| Touch Screen Controller | All production data can be controlled by touch screen controller |
Main Flow Chart:
Pre squeezer unit → Rope opener → Slitting device → Centering unit → Tension sensor → Washing tank → Padder → Plaiter
Machine Layout :
