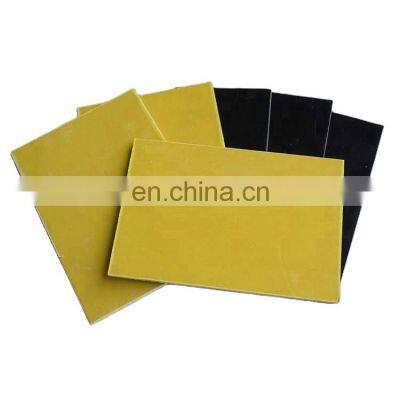

fr4 epoxy glass sheet g10 fiberglass sheet fr4 94vo pcb board

Product Description

Product Description
Product Description
Flame resistance epoxy glass cloth laminated fr4 / g10/ 3240 fiberglass insulation sheet
FR4 (or FR-4) is a NEMA grade designation for glass-reinforced epoxy laminate material. FR4 is a composite material composed of woven fiberglass cloth with an epoxy resin binder that is flame resistant (self-extinguishing).
"FR" stands for flame retardant, and denotes that the material complies with the standard UL94V-0.
FR4 glass epoxy is a popular and versatile high-pressure thermoset plastic laminate grade with good strength to weight ratios.
With near zero water absorption, FR4 is most commonly used as an electrical insulator possessing considerable mechanical strength.
The material is known to retain its high mechanical values and electrical insulating qualities in both dry and humid conditions.
These attributes, along with good fabrication characteristics, lend utility to this grade for a wide variety of electrical and
mechanical applications.

Tehnical Data of G10/ FR4 Epoxy Fiberglass Sheet
PROPERTIES	UNIT	METHODE	STANDARD VALUE	TESTING RESULT
Flexural strength perpendicular to laminations – under normal room temperature	MPa	ISO 178	≥ 350	360
Notch Impact strength parallel to lamination (Notched charpy)	kJ/m2	ISO 179	≥ 37	45
Dielectric strength perpendicular to laminations (in oil 90±2℃), 1.0mm in thickness	kV/mm	IEC 60243	≥ 14.2	20.5
Breakdown voltage parallel to laminations (in oil 90±2℃)	kV	IEC 60243	≥ 3.5	40
1MHz dielectric coefficient1MHz	-	IEC 60250	≤ 5.5	4.9
1MHz loss factor1MHz	-	IEC 60250	≤ 0.04	0.013
Water absorption rate, 1.6mm in thickness	%	ISO 62	≤ 0.25	0.02
Insulation resistance Impregnated in water(22℃, 50%RH)	Ω	IEC 60093	≥5.0×1010	5.6×1010
Flammability	class	IEC 60093	FV0	FV0
Density	g/cm3	-	1.9-2.2	2.1

Electronic Insulation Materials G10 FR4 3240 Epoxy Fiberglass Sheet with Factory Price
Details Images
G10/ FR4 glass epoxy sheetStandard color: Green, Black, Yellow, WhiteStandard size: 1020*1220mm, 1220*2440mmStandard Thickness: 0.2-50mm
Electronic Insulation Materials G10 FR4 3240 Epoxy Fiberglass Sheet with Factory Price
Product packaging
Electronic Insulation Materials G10 FR4 3240 Epoxy Fiberglass Sheet with Factory Price
CNC Machining Service
4mm PCB raw materials FR4 /G10 sheet
$0.8-$3.6/ pcs
Epoxy fiber FR4 Plastic Washer sheet / Epoxy resin G10/3240 sheet epoxy board
$1.5-$6.5/pcs
High insulating property Fr4/G10/3240 epoxy sheet phenolic resin laminated sheet board
$3.5-$8.5
