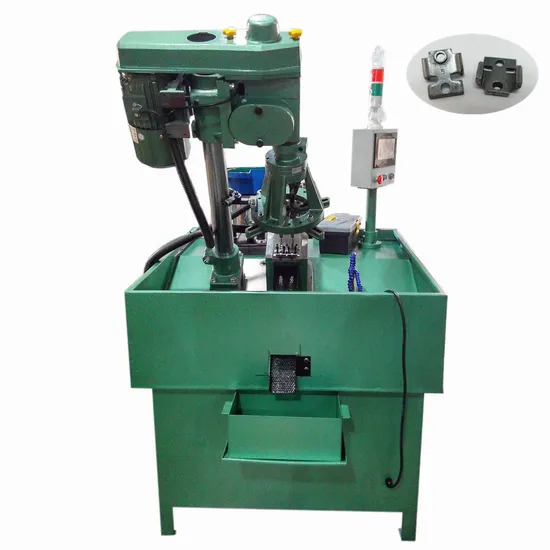

China Professional Manufacturer CE Certificate Nut Tapping Machine for Sale
Basic Info.
Model NO.
CX-4508
Controlling Mode
CNC
Number of Shaft
Customized
Hole Diameter
M1-M8mm
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Product Name
Auto Customized Nut Tapping Machine
Machine Type
Vertical Bench Table Type Tapping Machine
Application
Tapping for Nuts
Warranty
One Year Warranty
Max Tapping Diameter
M1-M8mm
Advantage 1
Multi-Functional
Advantage 2
High Accuracy
Advantage 3
Competitive Price
Spindle Travel
130mm
Base Size
440*297mm
Brand
Chansin
Transport Package
Plywood Case
Specification
96*70*165cm
Trademark
Trade Mark
Origin
Dongguan, China
HS Code
8459700000
Production Capacity
80 Sets Per Month
Product Description
Product DescriptionChina Professional Manufacturer CE Certificate Nut Tapping Machine For Sale
| CX-4508 Parameters |
| Spindle Travel | 45mm |
| Thread Diameter | M1-M8 |
| Head Moving Scope Up and Down | 260mm |
| Distance Spindle Nose to Working Table | 350mm |
| Working Table Size | 680*560*670 |
| Base Size | 440*297mm |
| Motor Power | 0.75kw |
| Voltage | 220v/380v/415v |
| Spindle Rotation | 50HZ:1340/760/420rpm 60HZ:1600/900/500rpm |
| Standard Gear Pitch(mm) | 0.25,0.3,0.35,0.4,0.45,0.5,0.6,0.7, 0.75,0.8,1.0,1.25 |
| Standard Gear Pitch(inch) | 16,18,20,24,28,32,40,44,48,56,64 |
| Weight | 170-260kg |
Standard Type Drilling Machine
| Drilling Machine | CX-8510 | CX-13016 | CX-15035 |
| Maximum Drilling Diameter | 10mm | 16mm | 35mm |
| Electricity | 380V/415/440V 3 Phase | 380V/415/440V 3 Phase | 380V/415/440V 3 Phase |
| Spindle to Column Distance | 200mm | 210mm | 250m |
| Spindle Nose to Work Table | 100-330mm | 100-350mm | 120-420mm |
| Spindle Speed | 1400/2800 rpm | 1400/2000 rpm | 1000/1400 rpm |
| Machine Head Travel | 280mm | 280mm | 320mm |
| Motor Power | 0.75kw | 1.5kw | 2.2kw |
Standard Type Tapping Machine
| Tapping Machine | CX-4508 | CX-6516 | CX-6516 |
| Tapping Range | 1-8mm | 2-16mm | 5-32mm |
| Machine Head Travel | 260mm | 300mm | 460mm |
| Spindle Nose to Work Table | 90-350mm | 100-350mm | 100-600mm |
| Multi spindle Capacity | M2*16,M3*9,M4*5,M5*3,M6*2,M8*1 | M4*13,M5*10,M6*7,M8*4,M10*3,M12*2,M16*1 | M8*16,M10*10,M12*7,M14*6,M16*4,M18*3,M20*3,M32*1 |
| Motor Power | 0.75kw | 1.5kw | 2.2kw |
| Electricity | 380V/415/440V 3 Phase | 380V/415/440V 3 Phase | 380V/415/440V 3 Phase |
| Spindle Stroke | 45mm | 65mm | 65mm |
Drilling and Tapping Heads
| CX-HD5-85 AIR/HYDRAULIC DRILLING HEAD | Maximum Drilling : φ1-φ10mm Main Spindle Taper : ER20/JT6 Main Spindle Travel : 85mm Spindle Max Rotating Speed : 1400 (r/min) Cylinder Area: 21.6m2 Center Height: 70±0.01 Motor: 0.75KW Net Weight: 38kg Using Hydraulic: 20-30 kg/cm2 Size(L*W*H): 115*464*370mm |
| CX-HD6-130 HYDRAULIC DRILLING HEAD | Maximum Drilling: φ1-φ16 mmMain Spindle Taper: ER25/JT6Main Spindle Travel: 130mmSpindle Max Rotating Speed: 1400 (r/min)Cylinder Area forward: 37.1m2 backward: 15.8m2Center Height: 70±0.01Motor: 1.5KWNet Weight: 50kgUsing Hydraulic: 20-30 kg/cm2Size(L*W*H): 160*719*417mm |
| CX-HD8-150 HYDRAULIC DRILLING HEAD | Maximum Drilling: φ1-φ35mmMain Spindle Taper: MT4/LINE GROOVEMain Spindle Travel: 150mmSpindle Max Rotating Speed :1500 (r/min)Cylinder Area forward: 71.2m2 backward: 31.4m2Center Height: 90±0.01Motor: 1.5KWNet Weight : 67kgUsing Hydraulic: 20-30 kg/cm2Size(L*W*H): 280*860*470mm |
Detailed Photos
Company Profile
FAQ
1. Are you a manufacturer or trade company?
-----Yes, we are a manufacturer, our factory is in Dongguan, Guangdong Province, China.2. What is payment terms?
-----Usually 30% deposit, the balance will be paid before delivery.3. What is the warranty time ?
-- One year warranty and life time maintenance.4. Do you provide OEM services?
-- Yes, we provide OEM services.5. Can you send engineers to serve overseas ?
-- Yes, we can , but you are responsible for round-trip air tickets and accommodation of our engineers.6. What is the loading port ?
-- Shenzhen / Guangzhou port in China.
