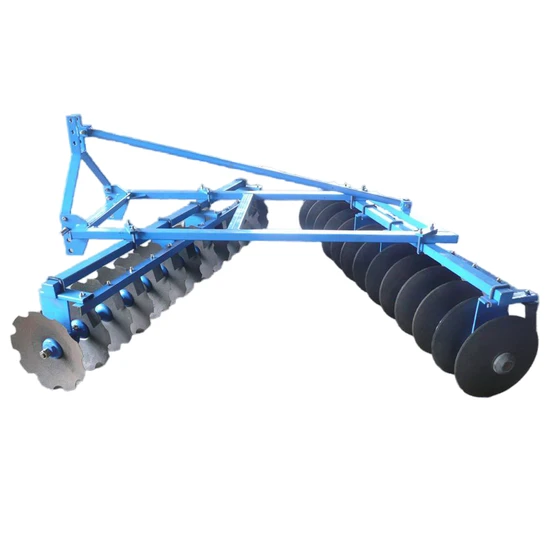

Versatile 1bq Light Disc Harrow for Pre-Planting Soil Tillage

Product Description

Product Introduction:
A disc harrow is a type of machinery used for agricultural cultivation, mainly for soil loosening, soil fragmentation, and leveling operations.
1.Working principle:
The disc harrow is pulled or suspended by a tractor, and its concave disc is used to loosen the soil. When working, the plane of the disc blade is perpendicular to the ground and forms an angle with the direction of advance. Under the traction force of the tractor and the reaction force of the soil, each blade of the rake group rolls along with the square axis, cutting off grass roots or crop residues, shredding the plowed straw strips, and causing the soil straw to slightly rise along the concave surface of the blade and then fall down, providing a certain degree of soil turning and covering effect.
2.Structural composition:
The circular disc rake consists of a rake frame, rake assembly, traction or suspension device, and angle adjustment mechanism. The rake assembly is the main working component of a circular disc rake, consisting of several rake blades fixed on a square shaft. The material of the rake blade is generally wear-resistant carbon steel.
Product parameters:

Light disc rake
Model	Unit	1BQX-1.1	1BQX-1.3	1BQX-1.5	1BQX-1.7	1BQX-1.9	1BQX-2.3	1BQX-3.4
Working width	m	1.1	1.3	1.5	1.7	1.9	2.3	3.4
Working depth	mm	80-120	80-120	80-120	80-120	80-120	80-120	80-120
No.of discs	pcs	12	14	16	18	20	24	42
Disc diameter	mm	460	460	460	460	460	460	460
Overall weight	kg	200	220	240	260	310	360	1108
Tractor power	hp	12-20	15-25	25-35	30-35	35-45	50-60	80-100
Linkage		Standard three point mounted						trailed

Product Tupian:
1.Manganese steel material rake blade
2.A good helper for farmland
3.Use it to relax your mind
4.Easy to use,not expensive,free shipping

Product application direction:
Round disc harrows are suitable for various types of soil, including clay, loam, sandy soil, etc. In areas with hard soil or rocks, the design of a disc rake needs to be more sturdy and durable.Round disc harrow is an important soil tillage machinery in modern agricultural production, which plays an important role in improving soil quality and crop yield. With the continuous advancement of agricultural technology, the design and function of disc harrows are also constantly improving to adapt to different agricultural needs and environmental conditions.
Packaging and transportation:
Company Profile:
Shandong Bodilan Machinery Co., Ltd. stands at the forefront of the agricultural machinery industry, renowned as a modern, comprehensive entity dedicated to research, development, production, and sales of top-tier agricultural machinery. As one of the industry's giants, it specializes in farming, harvesting, and management solutions that elevate agricultural productivity.
Our diverse product line encompasses highly adaptable agricultural machinery compatible with tractors ranging from 12-300 horsepower. Our offerings include plows, rotary tillers, disc plows, disc harrows, and deep loosening machines; precision sowing machines for crops such as wheat, corn, and soybeans; specialized planting and harvesting machines for potatoes and sweet potatoes; as well as a variety of grass machinery like lawn mowers, rakers, and balers. Additionally, we provide fertilizer spreaders for granular and organic fertilizers, sprayers, cultivators, ridgers, excavators, agricultural trailers, and a comprehensive array of machinery accessories. We also cater to bespoke requests, crafting products based on customer designs and specifications. With a robust sales network extending across numerous provinces and international markets, our products are esteemed for their reliability and have garnered widespread acclaim globally.
Boasting state-of-the-art processing equipment, including laser cutting machines, CNC machining centers, and advanced product welding and assembly lines, Bodilan Machinery significantly enhances its equipment quality and R&D capabilities. Committed to delivering modern agricultural machinery with exceptional service, we maintain a diverse procurement strategy for key components in global markets, ensuring consistent product quality. Our extensive network of nearly one hundred long-term supplier partners spans 25 provinces, cities, and autonomous regions within China.
Driven by the market and user needs, we tirelessly advance the integration of agricultural machinery and agronomy, fueling product innovation and development. Our strategic vision centers on 'survival through quality, development through quality, and efficiency through quality.' Guided by the principles of 'honesty and trustworthiness, customer first, quality first,' we prioritize independent innovation to forge core competitive advantages, bolstering our market presence within the agricultural machinery and equipment industry.
Shandong Platinum Dylan Machinery Co., Ltd. stands as a beacon of excellence, relying on a robust quality management system, cutting-edge production processes, and unwavering product reliability. Our stellar after-sales support ensures customers receive only the finest products. We warmly welcome global friends to inquire, negotiate, and inspect. Let's collaborate for mutual success and shared brilliance!
Certification report:
Company advantages:
1. Rich product line: We proudly offer a diverse array of agricultural machinery. Our selection includes plows, rotary tillers, disc plows, disc harrows, and deep loosening machines. Explore our sowing machines for crops like wheat, corn, soybeans, and vegetables. For potato and sweet potato planting and harvesting, we've got you covered. We also feature lawn mowers, rakers, balers, and various grass machinery. Enhance your operations with our fertilizer spreaders, sprayers, cultivators, ridgers, excavators, and comprehensive agricultural trailers.
2. R&D and production capabilities: Our cutting-edge facilities boast advanced processing equipment, including laser cutting machines and CNC machining centers. With state-of-the-art welding, assembly, and painting lines, we significantly boost our production and R&D prowess, elevating our equipment standards.
3. International market: Our acclaimed products transcend borders, with a strong presence in Europe, America, Australia, Africa, Southeast Asia, and the Middle East. Valued by domestic and international clients alike, our offerings have earned widespread trust and commendation.
4. Quality control: Committed to delivering state-of-the-art agricultural machinery and unparalleled service, we embrace a diversified procurement strategy for critical components in foreign markets, ensuring products of consistent excellence.
5. Supply Chain Management: We have fostered partnerships with nearly a hundred reliable suppliers across 25 Chinese provinces, cities, and autonomous regions. This bolsters the stability and cost-efficiency of our supply chain, offering robust support to our operations.
6. Corporate philosophy: Guided by principles of 'honesty, trustworthiness, and customer-first service,' we prioritize quality and innovation. Our commitment to independent innovation creates core advantages, strengthening our competitiveness in the agricultural machinery industry.
After sales issues:
For any after-sales concerns, please feel free to reach out to us.
Frequently asked questions:
1. Are you a trading company or a manufacturer?
We are a distinguished manufacturer with a professional edge.
2. What is your delivery time?
For regular stocked items, expect delivery within 7-15 days. For custom or out-of-stock goods, anticipate a delivery timeline of 30-60 days, contingent on order volume.
3. Do you provide samples?
We offer samples for smaller items, whereas large or bespoke items are not eligible for sampling.
4. What are your payment terms?
A 30% down payment is required, with the remaining balance due before shipment.
5. What is your minimum order quantity?
Minimum order quantities vary by product. Please contact us for specific details.
6. How to install the machines after they arrive?
Upon receipt of the goods, we will provide an installation video specific to the product. Follow the video for seamless installation.
7. Can your products be customized?
Customization is available, provided certain conditions are met.
8. How do you ensure the quality of your product?
Our expert team conducts rigorous quality inspections to ensure superior standards.
9. What are the trade terms?
Basically, it's FOB shipping
