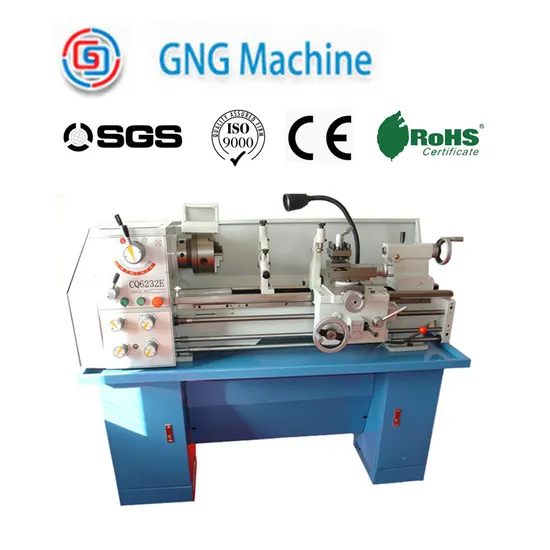

Cq6232e Precision Metal Turning Bench Lathe
| US$2,100.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CQ6232E
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Table
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Max. Swing Over Bed
320mm
Max. Swing Over Gap
470mm
Max.Turning Dia.Over Cross Slide
198mm
Max.Length to Be Turned
880 Mm / 1000 Mm
Speed Range
70~2000 Rpm
Transport Package
Package
Specification
CE
Trademark
G&G
Origin
China Jiangsu
HS Code
84589900
Production Capacity
300/Month
Product Description
Specifications
CQ6232E Metal Lathe MACHINE
Max. swing over bed 320 mm
Max. swing over gap 470 mm
Max.turning dia.over cross slide 198mm
CQ6232E Metal Gear-head Lathe Machine
Description | CQ6232Ex880 / CQ6232Ex1000 |
| Max. swing over bed | 320 mm |
| Max. swing over gap | 470 mm |
| Max.turning dia.over cross slide | 198 mm |
| Max.length to be turned | 880 mm / 1000 mm |
| Speed steps | 8 |
| Speed range | 70~2000 RPM |
| Spindle bore dia | 38 mm |
| Taper of spindle bore | MT No.5 |
| Longitudinal | 0.079~1.291 |
| Transverse | 0.017~0.276 |
| Metric threads | 0.4~7 |
| Whitworth threads | 4~60 |
| Cross slide travel | 160 mm |
| Top slide travel | 76 mm |
| Swiveling angle of turret | ± 45 ° |
| Distance from the tool bearing surface to centerline | 18 mm |
| Movement of tailstock quill | 100 mm |
| Taper of tailstock quill bore | MT No.3 |
| Power of main drive motor | 1.1 or 1.5KW |
| Packing size (1 package) <LxWxH> | 168x75x140cm / 185x75x140cm |
| Gross weight (kg) | 560 / 600 |
| Packing size (3 packages) <LxWxH> | 168x74x75cm / 185x74x75cm 69x40x37cm 69x40x30cm |
| Gross weight (kg) | 490/ 30/ 27/530/30/ 27 |
