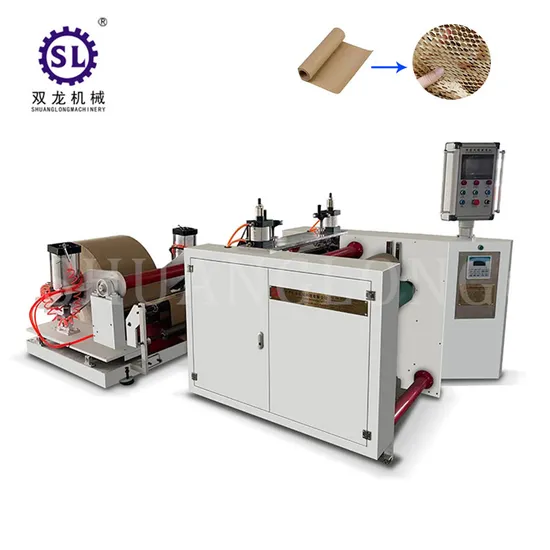

520mm Recycled Paper Kraft Paper Various Paper Honeycomb Wrap Making Machine

Product Description

Honeycomb Paper Making Machine
Product Description A.Unwind unit:
1.Unwind diameter: Φ1200mm
2.Unwind tension control: 10kg magnetic powder, Automatic tension control
3.Loading and unloading: 3 inch air shaft, pneumatic loading
B.Rewind Unit:
1.Single station rewind diameter: 300mm
2.2KW inverter motor
3.Tension display: PLC control
4.Loading way: 1.5-inch air shaft (2 bars)
C.Cutting Unit:
1.Upper cutting roller: 144x520mm
2.Down cutting roller: 380x520mm
3.Main motor: 4kw 1 set
4.Cutting mould life time: 900,000 meter (Can polish 3 times)
E.Main drive:
1.Structure: upper cutting roller + down cutting roller
2.Main panel
3.The drive mode is the synchronous belt drive
4.Guide roller: aluminum guide roller brown color dynamic balance
F.Auxiliary unit:
1.Main machine pressure: air cylinder with manual fine adjustment
2.Tool box
3.PLC control
4.7-inch touch screen

Main technical parameters:

Maximum Unwind Diameter	1200mm
Maximum Rewind Diameter	300mm
Paper Core Size	76mm,38mm
Machine speed	120m/min
Tension setting range	0-80N.m.
Total power of the whole machine	8Kw
Machine weight	1100kg
Machine size(L*W*H)	2900*1900*1500mm

Detailed Photos
Product Application
Our Advantages
1. We have more than 15 years experience;
2. We are manufacturer who have been exported more than 15 countries;
3. Large production capacity that ensures the shipment on time;
4. Quick responses with full attention
5. Sample fee could be returned after the order has been placed.
6. We guarantee our products quality and pre-sales and after-sales service.
Packaging & Shipping Packing Details: Packed by pearl cotton and plastic film, some items will packed in wooden box
Delivery Time: Within 30-60 days after got deposit

FAQ
Question 1: Where is your factory located? How can I visit there?
Answer: Our factory is located in Wenzhou City, Zhejiang province, China. The nearest air port is Wenzhou airport, we can go Wenzhou airport pick you.
From SHANGHAI by air is 40mins, by train is 4hours.
From GUANGZHOU by air is 2hours.
Question 2: Do you company provided foreign country machine installation services?
Answer: We have strong service team can provided all the machines buy from our company foreign country installation service and engineer training service. But buyer need provided the ticket, food, hotel cost etc.
Question 3: How your company provided after sales service?
Answer: All the machines buy from our company guarantee is one year (except any human mistake occurred) , All life time repaire, and 24hours HOT Line.
Question 4: What's the payment method?
Answer: We accepted T/T, L/C, Western Union, Moneygram ETC.
