Silicone Rubber Air Hose Pipe (SH-0114R)

Product Description

Product Description Rubber Air Hose made by Yeedah is different from other common type of silicone hoses in same material due to its long life time, high quality and perfect appearance. It is a kind of High temperature duct, flame retardant, chemical resistance, working under very high temperature, It is also used in different industry. Details as below:
Material:
Wall: The wall of the silicone hose is made of 2 layers silicone coated glass fiber fabric
Spiral: Stainless spring steel wire is hidden between the 2 layers, hi-temperature glass fiber cord is spired around the surface of the duct.
Properties:
The silicone hose has very good heat resistance
It is leak-proof; Kink-proof
The long life time of this duct is around 5~10 years in normal working condition
It has smooth interior
Bending radius is quite small.
Silicone hose is normally in red & black. Color.
Temperature range:
-70 ° C approx. To +260 ° C approx.
Short time to +310 ° C approx.
Applications:
As conductor of hot and cold air.
For granulate dryers in the plastics industry.
For printing machines, blowers and compressors.
For exhaust gas technique, engine construction, engine warming, aircraft construction and construction.
In one word, this Silicone hose could be used anywhere produces hot air. The performance is very good, and lifetime is quite long. In normal working environment, it could be used up to 10 years or more. We are not only providing standard products, also offer OEM service and total solutions for customers.

I.D. (mm)	O.D.(mm)	Pressure (bar)	Vacuum(bar)	Weight kg/m	Length	Product no.	Carton Size
19	21	2.95	0.76	0.12	4	SG-0019-R/B	10 * 10 * 100
26	28	2.80	0.71	0.19	4	SG-0026-R/B	10 * 10 * 100
32	34	2.70	0.65	0.28	4	SG-0032-R/B	12 * 12 * 100
38	40	2.60	0.60	0.31	4	SG-0038-R/B	12 * 12 * 100
44	46	2.60	0.58	0.32	4	SG-0044-R/B	15 * 15 * 100
51	54	2.60	0.52	0.36	4	SG-0051-R/B	15 * 15 * 100
63	66	2.40	0.46	0.49	4	SG-0063-R/B	17 * 17 * 100
76	80	2.10	0.43	0.58	4	SG-0076-R/B	21 * 21 * 100
89	93	2.00	0.40	0.69	4	SG-0089-R/B	21 * 21 * 100
102	106	1.90	0.35	0.77	4	SG-0102-R/B	26 * 26 * 100
115	119	1.70	0.28	0.85	4	SG-0115-R/B	28 * 28 * 100
127	131	1.40	0.23	0.93	4	SG-0127-R/B	31 * 31 * 100
152	158	1.20	0.17	1.20	4	SG-0152-R/B	33 * 33 * 100
203	208	0.70	0.09	1.65	4	SG-0203-R/B	45 * 45 * 100
254	259	0.50	0.07	2.09	4	SG-0254-R/B	55 * 30 * 190
"R" refers to red color. "B" refers to black color.

Details Images

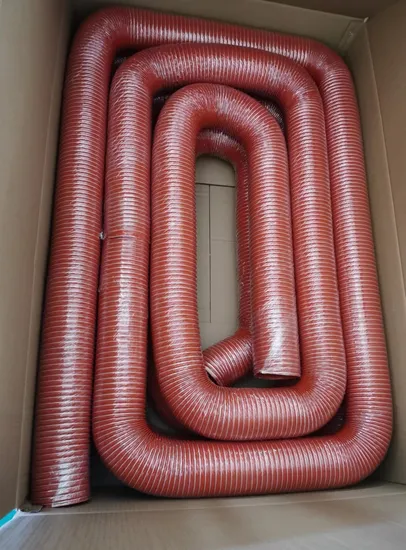

Product packaging
