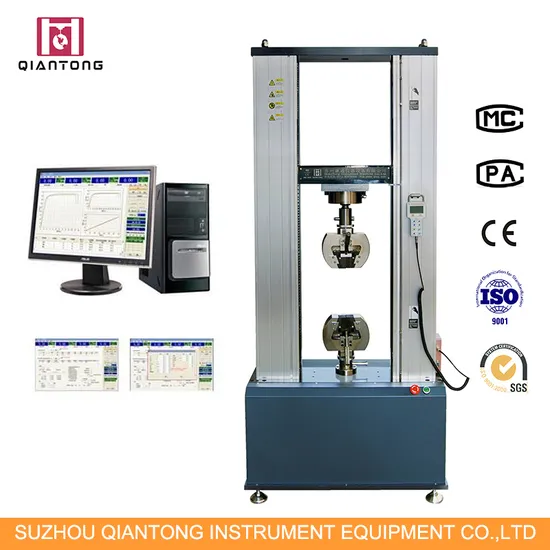

Lab Equipment Tensile Testing Machine / Tensile Deformation Testing Equipment

Product Description

1. Qiantong main scope of testing machine Electronic universal material testing machine, Horizontal tension testing machine, Hydraulic universal testing machine, MFI, Charpy Impact, Izod Impact, HDT-Vicat tester, Hardness tester, Torsion tester, Metallographic series, Oven and so on. (We accept customization.) 2. Product Brief: It adopts full digital power, displacement and speed three closed loop control, using AC motor and control drive system, with Taiwan precision worm gear reducer and Taiwan TBI precision screw drive to achieve the transmission efficiency and signal-to-noise ratio of the best effect.
Function: Tester is used to test physical properties of elongation, compression, peeling, tearing bending, 3-point bending, shearing of metallic and non-metallic material and so on.
Meeting standards: It can be customized to meet GB, ISO, JIS, ASTM, DIN requirement and the standard provided by client to test and data processing.
Application ranges: This machine is commonly applied in material analysis in auto-parts, fastener, aerospace, cable and wire, plastic and rubber, paper packing industries. 3. Features of control and data processing system 1) With advanced chipping technology and professionally designed data gathering and amplifying system,the tester is highly integrated,reliable and convenient. Control software automatically derives data of tensile strength, yield strength, fracture strength, modulus of elasticity, elongation.The open formula edition function allows automatic calculation of force, tension displacement deformation at any designated point. The standard in the process of control and data processing meet national requirement for testing metallic material and non-metallic material. 2) Control method: fixed speed, fixed displacement, fixed loading, fixed load increasing rate,fixed tension, fixed tension increase rate. 3) Automatically resetting: After the test begins, measuring system automatically reset to zero. 4) Automatic shifting: automatically changes range when load changes to make sure precise collection of data. 5) Automatic saving: testing data and testing condition are automatically stored to avoid data loss caused by forgetting saving. 6) Batch testing: For specimen with same setting, batch test can be performed after setting the test sequence. 7) Display mode: data and curve are presented while testing. 8) Curve display: after testing, it is possible to revisit the curve to analyze. Move your mouse on the curve to find relative data at each point. 9) Curves: parameters: stress-strain, force-displacement, force-time, displacement-time results are displayed and printable. 10) Parameters: force parameters(g,kg,N,lb) stress parameters(kg/mm2,N/mm2,Mpa,lbf/in2)
Displacement parameters (m,mm,in) 11) Test report: test reports are edited and printed according to the desired format by client and can be output as Excel files 12) Safety protection : safety mechanism is triggered when overloading is above 2~10% 13) The tester is able to automatically test and calculate mechanic property of specimen. It is also possible to intervene manually in the analyzing process. Automatic analyzing test results are revised according to relevant standard to improve data accuracy. 4. Specifications

Type	QT-6100S	QT-6100W	QT-6100S	QT-6100W
Load capacity	5T	5T	10T	10T
Precision level	0.5	0.5	0.5	0.5
Test force resolution	1/±500000	1/±300000	1/±500000	1/±300000
displacement resolution	0.0005mm	0.0005mm	0.0005mm	0.0005mm
Speed (mm/min)	0.005-500	10-300	0.005-350	10-300
Motor	Servo motor(upgrade)	Servo motor	Servo motor(upgrade)	Servo motor
Control method	Fully closed loop	Semi closed loop	Fully closed loop	Semi closed loop
Display method	PC software	PC software	PC software	PC software
Recovering speed (mm/min)	300	100	300	100
Measurement range	2%-100%FS	2%-100%FS	2%-100%FS	2%-100%FS
Relative deviation	±0.5% within indication	±0.5% within indication	±0.5% within indication	±0.5% within indication
Maximum stretch stroke	1100mm	1100mm	1100mm	1100mm
Effective stretching space	680mm	680mm	680mm	680mm
Effective testing width	420*420mm	420*420mm	420*420mm	420*420mm
Dimension	1050*600*2010mm	1050*600*2010mm	1050*600*2030mm	1050*600*2030mm
Power	220V 50Hz 1.5kW	220V 50Hz 2kW	380V 50Hz 2kW	220V 50Hz 2.6kW
Weight	600kg	600kg	650kg	850kg

Some cooperative brands(This ranking is in no order)
FAQ
Q:Are you a trade company or factory?
A:Our company is a factory and directly sales.
Q:Can your company accept customization?
A: Yes. Our machines can be customized by client.
Q:How to guarantee your after-sales service?
A:Our philosophy is one year warranty and lifetime service. After the warranty period is exceeded, if there is any problem, we will provide support for you in time. (only charge travel expense and parts cost at most.)
Q:What is the different between Type-S and Type-W?
A:Type-S can test multistep experiment, hold loading,bending, yield strength, modulus of elasticity with import upgrade servo, but the Type-W can not do these tests.
Q:May the customer not use your company's computer?
A:Sure. But please tell us what type your computer is. We need to confirm your computer can install the software. And we can subtract the price of computer from offer.
Q:How to install and operate?
A:We will give a U disk with operating video. About the installing, just plug in and use.
Q:Do you have other testers?
A:Sure. If there is no machines which can make you satisfied. We can give you the catalogue of complete products by email.
