Product Description

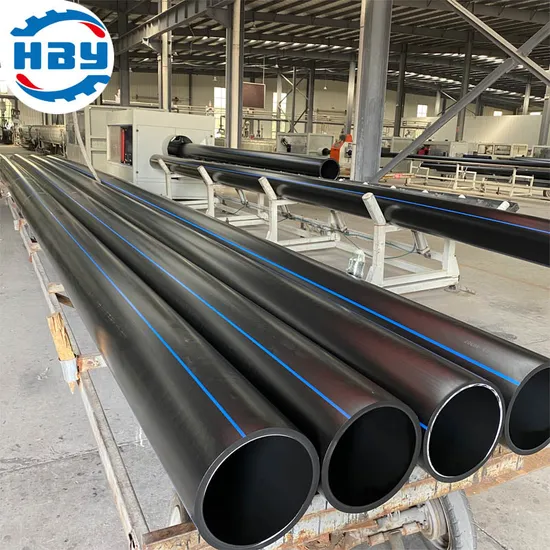

High Quality HDPE Environmental-Protection Water Supply Pipe
Product Introduction
Pe environmental protection water supply pipes and fittings are made from PE100 or PE80 raw materials. Specifications, dimensions and performance conform to GB/T13663-2000 and GB/T13663.2-2005 standards. The hygienic performance conforms to GB/T17219-1998 standard requirements and relevant health and safety assessment requirements of the National Ministry of Health.
Our PE environmental water supply pipe have great performance of excellent flexibility, corrosion resistance, light weight, excellent impact resistance and so on. The pipes and pipe fittings can be connected by hot melt insertion, hot melt butt welding and electric melting, so that the pipes and the pipe fittings are fused together. The system is safe and reliable, the construction cost is low, and it is developing rapidly in the engineering application.
Performance Index

Item	Index
Elongation At Break	≥350%
Longitudinal Reversion (110 ºC)	≤3%
Oxidation Induction Time(200 ºC)	≥20 min
Hydrostatic Strength	PE80 at 20ºC, 100h & 9.0MPa	No cracking, no leakage
	PE100 at 20ºC, 100h & 12.4MPa
	PE80 at 80ºC, 165h & 4.6MPa	No cracking, no leakage
	PE100 at 80ºC, 165h & 5.5MPa
	PE80 at 80ºC, 1000h & 4.0MPa	No cracking, no leakage
	PE100 at 80ºC, 1000h & 5.0MPa

Product Specification

Nominal Diameter(mm)	Wall Thickness EN(mm)
	PN0.6MPa	PN0.8MPa	PN1.0MPa	PN1.25MPa	PN1.6MPa
32	-	-	-	-	3.0
40	-	-	-	-	3.7
50	-	-	-	-	4.6
63	-	-	-	4.7	5.8
75	-	-	4.5	5.6	6.8
90	-	4.3	5.4	6.7	8.2
110	4.2	5.3	6.6	8.1	10.0
125	4.8	6.0	7.4	9.2	11.4
130	6.2	7.7	9.5	11.8	14.6
180	6.9	8.6	10.7	13.3	16.4
200	7.7	9.6	11.9	14.7	18.2
225	8.6	10.8	13.4	16.6	20.5
250	9.6	11.9	14.8	18.4	22.7
280	10.7	13.4	16.6	20.6	25.4
315	12.1	15.0	18.7	23.2	28.6
355	13.6	16.9	21.1	26.1	32.2
400	15.3	19.1	23.7	29.4	36.3
450	17.2	21.5	26.7	33.1	40.9
500	19.1	23.9	29.7	36.8	45.4
560	21.4	26.7	33.2	41.2	50.8
630	24.1	30.0	37.4	46.3	57.2
710	27.2	33.9	42.1	-	-
800	30.6	38.1	47.4	-	-

Main Features
1. Long service life--50 years service life under normal conditions
2. No toxic, no pollution--Since Pe pipe is no heavy metal additives, no fouling and does not breed bacteria. It can totally solve secondary pollution problem of drinking water.
3. Corrosion resistance and wear-resistance--Resistant variety of chemical and electrochemical corrosion. The inner wall is smooth and the friction coefficient is extremely low. The flowing capacity of medium is improved and the wear resistance is excellent.
4. Excellent flexibility, strong impact resistance and strong shock resistance--The PE pipe can be recovered quickly after being subjected to external shock.
5. Light weight--Less density, handling, loading and unloading, convenient construction.
6. The welding process is simple, the whole engineering cost is low--Electric melt connection and hot melt connection, hot melt socket connection technology make the interface stronger than the pipe itself, which guarantee the safety and reliability of the interface.
Application Range
1. Municipal water supply system
2. Building water supply system
3. Buried water supply system in residential areas and factory areas
4. Industrial pipe system
5. Water treatment piping system in water treatment plant
