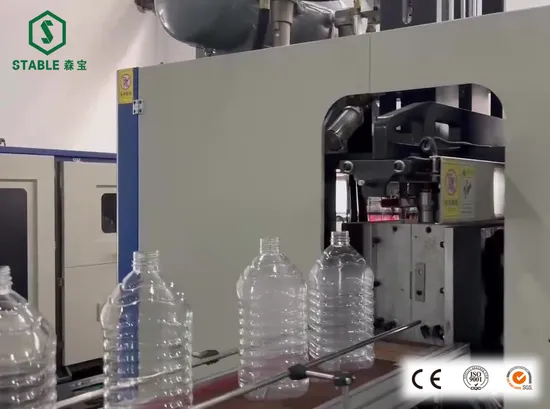

20000bph Automatic 100ml-5L Pet Bottle Blowing Moulding Making Machine Blower/ Pure Mineral Water Beverage Bottles Blow Molding Pet Plastic Machinery Price

Product Description

High Speed Servo Control PET Bottle Stretch Blow Moulding Machine
Pet stretch blow molding machine is the most stable two-step automatic stretch blow moulding machine. It has various cavities and the maximum capacity of the products is 20L. It can blow bottles in shapes: Carbonated, mineral, pesticide, cosmetics, wide-mouth, and other packing containers etc. Bottle size from 100ml to 20L
Capacity from 500 to 20000 bottles/hour
Detailed Photos

Linear type from 2 cavity to 12 cavity


Normally type from 2 cavity to 9 cavity

Rotary type from 6 cavity to 20 cavity

Installation Instructions

Product Parameters

Linear type blowing machine
Normally type blowing machine
Machine Features

1. Machine use of advanced PLC control system , stable in performance, automatic preform feeding .

2. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater

3. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.

4. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure. No contamination and low noise with the servo motor, air cylinder to drive the action instead of the oil pump.

5. The unique air storage device will be divided into three steps; action, pre-blowing, and blowing are each equipped with a separate air storage tank to meet the needs of different air pressures.

6. Ideal effect of the chilling with the chilling system.

7. Mold fixed by drawer design, mold changeover can be easily done in half hour.

How Bottle Produced

Finished Bottle
Our Service

Installation serviceWhen you finish the Preparation conditions, our fast and professional aftersales service engineer team will go to your factory to install the machine, give you the operating manual, and train your employee until they can operate the machine well. The sample service1. We can send you the video of the running machine. 2. You are welcome to come to visit our factory, and see the machine running. Customized service1. We can design the machines according your requirements(materil, power, filling type, the kinds of the bottles, and so on), at the same time we will give you our professional suggestion, as you know, we have been in this industry for many years. After-sales service1. We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly2. When you finish the Preparation conditions, our fast and professional aftersales service engineer team will go to your factory to install the machine, give you the operating manual, and train your employee until they can operate the machine well. 3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time. 4. We provide one year warranty5. Well-trained & experienced staff are to answer all your inquiries in English and Chinese6.24 hours for engineer response (all services part 5days in customer hand by Intl' courier). 7.12 Months guarantee and life-long technical support. 8. Your business relationship with us will be confidential to any third party. 9. Good after-sale service offered, please get back to us if you got any questions. Quality Control
We have the single quality department, that make sure the material of the raw materials is good, and ensure the machine running smoothly. After all production, we will connect all the machines and keep running the full production line for at least 24 hours to ensure the stable running in customers' factory.
If you want to know more information about the product, You can send an inquiry, we will solve any of your problems and send you running vedio.
Related Products
Exhibition
COMPANY PROFILE

PACKAGING


FAQ Q: How long is your delivery time?
A: Generally it is 20-30days,if complete production line it is 45-60 days.

Q: Do you have any certification?
A: SGS,ISO,CE

Q: What is your terms of payment ?
A: 30% by T/T as deposit advanced,70% balance after inspection in our factory and before shipment.

Q:What is your after sales service?
A:One years warranty,Long-lift technical support. 20 years experience engineers team,guarantee to check each spare part's precision during installation
