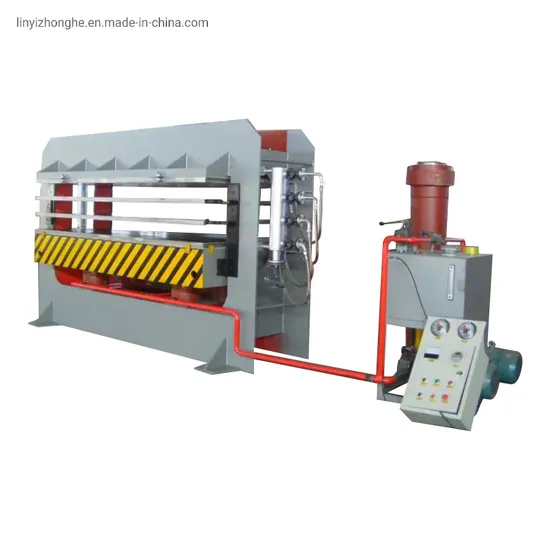

160 Tons 2 Layers Hot Press Machine for Plywood

Product Description

Product Description
This door skin hot press machine is special designed by Lin Yi Zhong He Company. It is mainly used for the molding of door which take mdf or hdf as raw material. And another important usage of this hot press machine is the lamination of veneer melamine paper on the molding wood doors. Comparing to the other lamination machines for doors, this door hot press machine has the following advantages:
1. Easy to operate, the workers can operate this machine very easily
2. Low second grade production ratio
3. Low production cost
4. Long service time and low failuire ratio

Detailed Photos

Product Parameters

160T 3 layers door panel hot press machine
1	Model	BY21-48-160T-3
2	Hot press plates	2500*1300*42 mm, 4 sheets
3	Hydraulic pistons	diameter φ140 mm, stroke 390 mm, 4 pieces
4	Nominal pressure	160 Tons
5	Opening size	130 mm
7	Electrical control style	Semi-automatical
8	Hydraulic system limit pressure	25 Mpa
9	Main pump	100:100 double vane pump, 7.5 KW motor
10	Pressurized pump	10 ml/rev, 5.5 KW motor
11	No-load closing time	13 Seconds
12	Heating medium	heat transfer oil or steam
13	Main frame steel thickness	20 mm, 12 mm
14	Frame style	welding frame
15	Cross beams size	450 mm, 450 mm, 300 mm
16	Machine size	2960*1300*1800 mm
17	Total weight	8000 KGS

Packaging & Shipping
Company Profile
Company Profile
Linyi Zhonghe Machinery Company is professional in solutions of wood veneer production machine, plywood production machine, particle board machine, MDF board machine, saw mill machine, related machine, materical and spare parts for wood-based panel machinery.
Main business range is as following:
1-wood veneer production machine:
Log cutting machine, log debarker, core veneer peeling machine, face veneer peeling machine, wood veneer dryer, wood veneer clipper, wood veneer stacker, veneer tape, etc.
2-plywood production machine, film faced plywood machine:
Core veneer composer, putty spreader, veneer sanding machine, veneer jointer, glue powder, glue making machine, glue mixer, glue spreader, base plywood forming machine, cold press, hot press, boiler, Double Dimension saw, sanding machine, wood dust collector, stainless steel plates, cushion pads, etc.
3- Particle board machine and MDF board machine.
4-Saw mill machine: Vertical band saw, horizontal band saw, saw blade sharpener
