China Manufacture Large Size Folding Lifting up PVC Fabric Roll up Hangar Mega Doors

Product Description

Description Fabric mega door is characterized by buildings suitable for small spaces on both sides, and is mainly suitable for large working environments such as hangars, shipbuilding, steel making, mineral processing, large warehouses, and logistics channels.
Technical data:

Fabric Mega Door
Applicable door opening size	W42*H24m
Motor power	3.2KW-13KW
Running speed	0.15m/s
Door thickness	450-800mm
Work temperature	-40ºC~50ºC
Wind pressure resistance	650N/m2
Control box protection level	IP54
Control external button protection level	IP64

Structure Diagram:
Product Details:
1. Curtain
A. PVC fabric: 1.0-1.5mm thickness, commonly used color: blue, yellow, green, red, white.B. Function and performance:
UV-resistant, fire-resistant, anti-mildew, anti-bacteria, self-cleaning, oil-resistant, acid and Alkali resistant, anti-wicking, anti-aging
2. Steel Structure A. Brand of material: BAOSTEEL Group (Best brand in China), surface process: hot dip galvanized steel tubes.
B. All the joints are fully welded to ensure the high strength of the structure.

3. Motor and Controller A. Motor loading capacity: 2-15t, running speed: 6m/min, power: 5-13KW. B. Variable frequency control, slow start and stop, other functions can be customized.
4. Safty Device A. Photo sensor: When there is human or vehicle under the door, the door will stop closing and get up automatically, this will avoid accident collisions. B. Accident fall arrester safety system: clamp type fall arrester is installed to prevent any accident falls and avoid any damage to human or other objectives under the door.

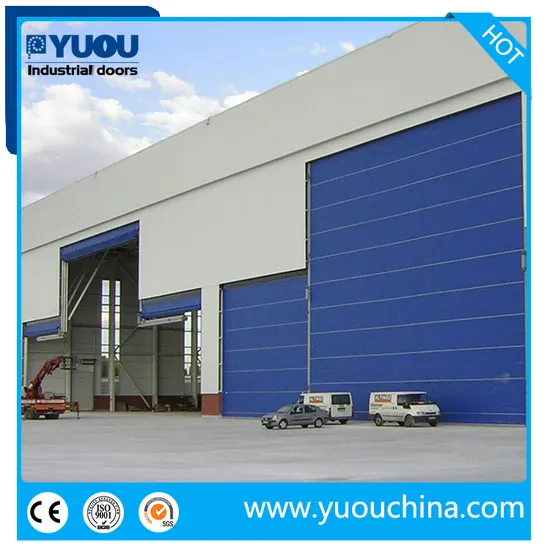

Products real shot:
