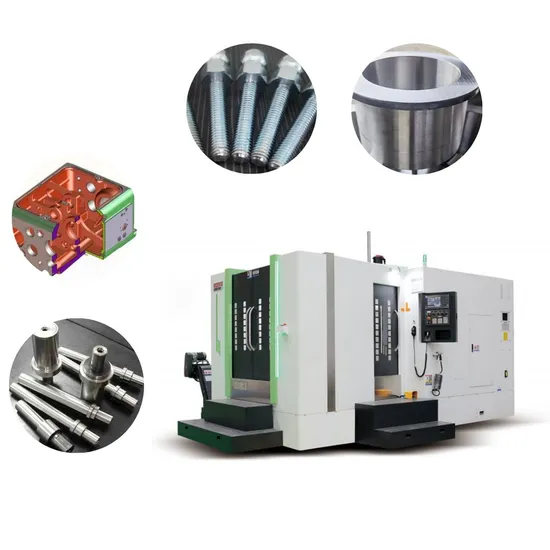

Heavy Duty CNC Vertical Machining Center Ysh-800 for Processing Cavity in 5g Filed

Product Description

Vertical Machining Center YSH-800
This product installs T design, worktable rotating structure form, ultra-wide guideway structure,the standard configuration of large torque, and high-speed motor. You could order exchange worktable separately. Our products are suitable for processing various complex parts. It is the preferred equipment in the field of automobile engines and cavity processing in the 5G field.

Model No.	YSH-800
Item No.
Travel
X/Y/Z axis	1300x800x1000mm
Spindle Noseto Worktable	150-950 mm
Spindle Center to Column	150-1150 mm
Three-Axis Guideway
Worktable
Worktable Size (L*W)	800x800 mm
Maximum Table Load	1.4 t
T-Slot	7-18x125 mm
Table Indexing	1°/0.001°
Max. Turning Diameter	Ø1500 mm
SPINDLE
Spindle taper	BBT-50
Spindle speed	8000 rpm
Spindle Drive Type
Feedrate
Rapid Traverse(XY/Z)	40/40/30 m/min
Cutting FeedrateXYIZ	10m/min
Tool changer
Automatic Tool Changer	Chain Type(Servo Drive)
Type of Tool Shank	BT-50
Tocl Storage Capacty	40
Max.Tool Diameter(Adjacenit)	125 mm
Max. Tool Diameter(Empty	250 mm
Max. Tool Length	350 mm
Max. Tool Weight	25 kg
Tool Change Time	4.2 sec
Motor
Spindle Motor	15/18.5 kw
Three-Axs Servo Miolor	3.0/3.0/3.0 kw
Accuracy
Accuracy	±0.005 mm
Repeatability	±0.003 mm
Power Required
Power Requirement	30 kva
Air PressureRequirement	6ˆ8 kg/cm2
Others
Extemnal Dimensions(LWH)	5839x4636x3050mm
Gross Weight	18.5t

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1).12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.
