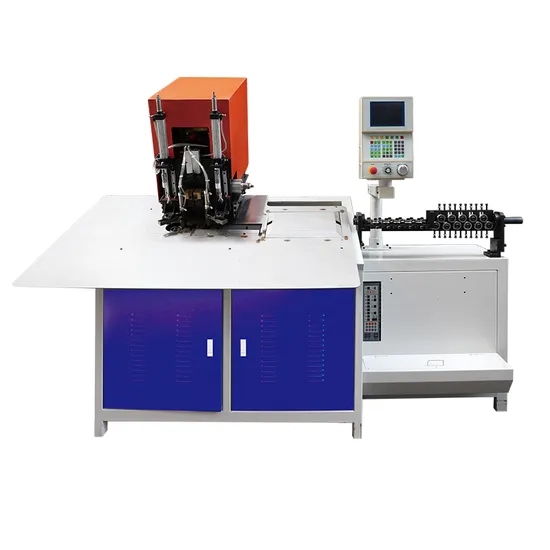

Automatic 2D CNC Flat Wire Bending Machine with Welding

Product Description

Product DescriptionProduct selling points
The 2D WIRE BENDING-WELDING MACHINE is controlled by PLC. The straightening, bending, cutting and butt welding are fully automatic and integrated. No manual operation is required in the whole process, and product production can be completed quickly, accurately, and reliably. It has a wide application range and convenient operation. Resistance welding is used for the welding part of the equipment. The welding junction is smooth and firm, and the smoke and dust during welding are small and pollution-free, which meets the environmental protection requirements. Fully automated production solves the problem of staff shortage.
Detailed Photos
The 2D WIRE BENDING-WELDING MACHINE is not only used to make a box, but also can be used to make regular plane shapes such as fans, ovals, and trapezoids. It has the advantages of high efficiency, good flatness, accurate welding alignment, ease to use, and greatly saving manpower.
Product Parameters

Electrical voltage: three-phase 380V + grounding wire Number of straightening wheels: 36 groups (made of national standard Cr12) Bending die: all high-quality materials SKD11 / 51 are used for finishing, with a hardness of 62 ° Number of wire feeding wheels: 3 groups (the wire feeding wheels adopt the national standard Cr12, and the hardness of fine polishing and heat treatment reaches 58 ° and wear resistance) Servo motor power: 4.8KW 2.3KW feeding servo + 1.5KW bending servo + 1kW cutter servo The cutting force of cutter motor: ø 6 iron wire Oil pressure range: 0.3-0.6mpa Hydraulic oil model: 46 # 68# Applicable wire: round wire, flat wire, square wire (applicable to any material wire) Applicable wire range: 2-6mm iron wire standard External dimension: 2800 * 850 * 1500 Machine weight: 1000kg Perimeter range: Unlimited Storage: 10000 groups of data, 300 actions as one group Wire feeding speed: fastest 100M / min Maximum bending speed: 300 rpm angle ± 180 ° Action direction: inner mold - move down / move up outer mold - move down / move up 360 ° clockwise and counterclockwise Efficiency: 16-20 PCS / min (take 200 * 200 boxes as samples) Bending accuracy: ± 0.5mm Wire feeding accuracy: ± 0.5mm

Packaging & Shipping
Company Profile
Foshan Jinchun Industrial Automation Technology Co., Ltd. was established in 1998. It is a technology-intensive industrial company specializing in the development of welding technology and equipment research and manufacturing, integrating scientific research, production and sales.With rich experience and strong technical personnel, the company constantly innovates and develops various types of high-quality hardware wire rods, hardware mesh baskets and other mechanical equipment. It has formed five series of electric fan and industrial fan guard production line, wire tube evaporator and condenser production line, pet cage production line, bag cage frame production line for bag filter, buckle machine and chain machine production line. The company has accumulated more than ten years of development, production and operation of welding machines and related products. The products are widely used in the fields of manufacturing and production of hardware appliances, lighting, kitchenware shelves, decorative handicrafts, cultural and sports products, electrical and electronic communication batteries, and industrial equipment automation. With a very wide user group.The company pursues management to promote efficiency, quality for survival, technology for development, strictly implement the national quality assurance system standards, provide customers with high-quality, stable and reliable products, and perfect high-quality services. Welcome people from all over the world to visit the company. business, and work together to create a better tomorrow.
FAQ Q and AQ:How to operate the machine ?
A: Our technicians have installed the machine before shipment. For the installation of some small parts, we will send detailed
training videos and user manuals together with the machine. 95% of customers can learn by themselves
Q:The voltage standard of our country is not consistent with that of your country. Can you design according to the parameters
provided by us
A:Of course, we can design the machine according to the voltage standard of your country
Q:Does the machine can be customized according to my requirements ?
A: Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.
Q:Can you arrange the shipment for me ?
A: We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are available.
Q. Can you make the logo or company name on the products or package?
A:Sure. customer's logo or company name can be printed on products by stamping, printing, embossing, coating or sticker.
Q: Can we use English or other languages on the display screen?
A:Yes, can. The system can achieve many languages, such as English, French, Russian, Spanish, and other languages
If you want more product information, please feel free to contact us!
