Product Description

Auto Part thrust Ball Bearing, roller bearing, insert/pillow block bearing, wheel Hub Bearing, needle/spherical/cylindrical/Taper Roller Bearing slewing bearing
Product Description

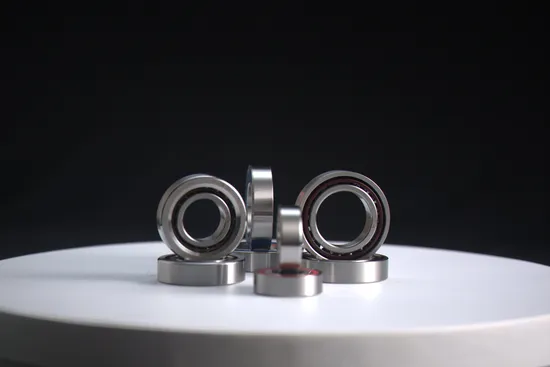

ZYS® High precision angular contact ball bearing
Four series: 70,718,719,72
Bearing inner diameter: Ф5-Ф460mm
Two kinds of contact angle: 15°(C) and 25°(AC) Performance characteristics of ZYS spindle bearing: Ultra high speed, high stiffness, high carrying capacity, good running performance, easy mounting of universally matchable bearings, suitable for oil and gas lubrication or injection lubrication.
Applications of ZYS spindle bearing: ZYS super high speed single row angular contact ball bearings might be used in the fields of machine tools, textiles, automobiles, railways, metallurgy, chemicals, electronics, Industrial pumps, Compressors, Material Handling, Electric motors.
Product features of ZYS angular contact ball bearing:
1. High-quality bearing materials: ZYS adopts ultra-clean steel, high purity high-carbon chromium bearing steel GCr15 from a well-known domestic manufacturer, which can extend the life of the bearing by 80%.
2. High quality bearing rolling elements: The bearing balls provided by ZYS have good product performance to ensure the optimal bearing configuration and smooth operation at high speed and quiet. ZYS has a complete process production line, from powder ultrasonic pre-dispersion, mixture mixing, spray drying granulation, near-net-size molding, cold isostatic pressing, GPS-HIP combined sintering process, high-precision grinding and processing, total quality inspection to packaging. ZYS has a comprehensive quality control system, quality identification of raw materials and auxiliary materials, quality control of mixed materials, quality control of pressing and sintering, and quality control of finished products.
3. More suitable bearing cage: ZYS mostly adopts bakelite cage, which can more effectively reduce the friction between metal and bearing balls and extend the life of the bearing. ZYS can also choose more suitable bearing cage materials according to customer requirements and bearing applications.
4. Advanced lubrication technology: ZYS uses high performance grease and advanced lubrication technology to extend bearing life and improve bearing performance.
5. Ultra finished raceways: ZYS uses special honing to minimize noise, improve lubricant dispersion and increase bearing life.
6. Contact angle: ZYS ultra high speed precision bearings usually use 15°and 25° contact angles.
7. Accuracy grade: ZYS can offer the high precision angular contact ball bearings with P2, P4A, P4 grade.

H70/H719 series Super high speed angular contact ball bearing
Principal dimensions					α= 15°				α= 25°				ZYS Bearing Designations
					Basic load ratings		Limiting speed		Basic load ratings		Limiting speed
d	D	B	rsmin	rIsmin	Cr	Cor	Grease	Oil	Cr	Cor	Grease	Oil
mm≈					KN		r/min
10	22	6	0.30	0.10	2.1	0.9	85000	140000	2.0	0.9	75000	120000	H71900
10	22	6	0.30	0.10	2.1	0.9	95000	160000	2.0	0.9	85000	140000	H71900/HQ1
10	26	8	0.30	0.15	3.4	1.5	80000	130000	3.3	1.4	67000	110000	H7000
10	26	8	0.30	0.15	3.4	1.5	90000	150000	3.3	1.4	80000	130000	H7000/HQ1
12	24	6	0.30	0.10	2.2	1.1	80000	130000	2.1	1.1	70000	110000	H71901
12	24	6	0.30	0.10	2.2	1.1	90000	150000	2.1	1.1	80000	130000	H71901/HQ1
12	28	8	0.30	0.15	3.8	1.7	70000	110000	3.6	1.6	60000	90000	H7001
12	28	8	0.30	0.15	3.8	1.7	80000	130000	3.6	1.6	70000	110000	H7001/HQ1
15	28	7	0.30	0.10	3.2	1.7	70000	110000	3.1	1.6	60000	90000	H71902
15	28	7	0.30	0.10	3.2	1.7	80000	130000	3.1	1.6	70000	110000	H71902/HQ1
15	32	9	0.30	0.15	4.4	2.2	67000	100000	4.2	2.1	56000	85000	H7002
15	32	9	0.30	0.15	4.4	2.2	75000	120000	4.2	2.1	67000	100000	H7002/HQ1
17	30	7	0.30	0.10	3.3	1.8	67000	100000	3.2	1.7	56000	85000	H71903
17	30	7	0.30	0.10	3.3	1.8	75000	120000	3.2	1.7	63000	95000	H71903/HQ1
17	35	10	0.30	0.15	5.2	2.5	56000	85000	5.0	2.4	50000	75000	H7003
17	35	10	0.30	0.15	5.2	2.5	63000	95000	5.0	2.4	60000	90000	H7003/HQ1
20	37	9	0.30	0.15	5.0	2.9	53000	80000	4.8	2.7	45000	67000	H71904
20	37	9	0.30	0.15	5.0	2.9	63000	95000	4.8	2.7	53000	80000	H71904/HQ1
20	42	12	0.60	0.15	7.4	3.9	50000	75000	7.0	3.8	43000	63000	H7004
20	42	12	0.60	0.15	7.4	3.9	60000	90000	7.0	3.8	48000	70000	H7004/HQ1
25	42	9	0.30	0.15	5.2	3.4	48000	70000	4.9	3.3	40000	60000	H71905
25	42	9	0.30	0.15	5.2	3.4	53000	80000	4.9	3.3	45000	67000	H71905/HQ1
25	47	12	0.60	0.15	8.4	4.8	43000	63000	8.0	4.6	36000	53000	H7005
25	47	12	0.60	0.15	8.4	4.8	48000	70000	8.0	4.6	43000	63000	H7005/HQ1
30	47	9	0.30	0.15	5.8	3.8	43000	63000	5.4	3.6	36000	53000	H71906
30	47	9	0.30	0.15	5.8	3.8	48000	70000	5.4	3.6	40000	60000	H71906/HQ1
30	55	13	1.00	0.30	9.5	6.2	38000	56000	9.0	5.9	34000	50000	H7006
30	55	13	1.00	0.30	9.5	6.2	45000	67000	9.0	5.9	38000	56000	H7006/HQ1
35	55	10	0.60	0.15	7.7	5.4	36000	53000	7.4	5.1	30000	45000	H71907
35	55	10	0.60	0.15	7.7	5.4	40000	60000	7.4	5.1	34000	50000	H71907/HQ1
35	62	14	1.00	0.30	11.2	7.9	34000	50000	10.7	7.5	30000	45000	H7007
35	62	14	1.00	0.30	11.2	7.9	38000	56000	10.7	7.5	34000	50000	H7007/HQ1
40	62	12	0.60	0.15	9.8	7.0	30000	45000	9.3	6.6	26000	40000	H71908
40	62	12	0.60	0.15	9.8	7.0	34000	50000	9.3	6.6	28000	43000	H71908/HQ1
40	68	15	1.00	0.30	12.5	9.1	28000	43000	11.1	8.6	24000	38000	H7008
40	68	15	1.00	0.30	12.5	9.1	34000	50000	11.1	8.6	28000	43000	H7008/HQ1
45	68	12	0.60	0.15	10.3	7.7	26000	40000	9.7	7.3	22000	36000	H71909
45	68	12	0.60	0.15	10.3	7.7	28000	43000	9.7	7.3	26000	40000	H71909/HQ1
45	75	16	1.00	0.30	13.1	10.2	24000	38000	12.5	9.7	22000	36000	H7009
45	75	16	1.00	0.30	13.1	10.2	28000	43000	12.5	9.7	26000	40000	H7009/HQ1
50	72	12	0.60	0.15	13.2	10.0	22000	36000	12.5	9.5	19000	32000	H71910
50	72	12	0.60	0.15	13.2	10.0	26000	40000	12.5	9.5	22000	36000	H71910/HQ1
50	80	16	1.00	0.30	15.4	12.0	20000	34000	14.7	11.4	18000	30000	H7010
50	80	16	1.00	0.30	15.4	12.0	24000	38000	14.7	11.4	20000	34000	H7010/HQ1
55	80	13	1.00	0.30	16.0	12.6	19000	32000	15.0	11.9	16000	26000	H71911
55	80	13	1.00	0.30	16.0	12.6	22000	36000	15.0	11.9	19000	32000	H71911/HQ1
55	90	18	1.10	0.60	17.0	14.5	19000	32000	16.0	13.7	17000	28000	H7011
55	90	18	1.10	0.60	17.0	14.5	22000	36000	16.0	13.7	19000	32000	H7011/HQ1
60	85	13	1.00	0.30	16.6	13.8	18000	30000	15.7	13.1	15000	24000	H71912
60	85	13	1.00	0.30	16.6	13.8	20000	34000	15.7	13.1	18000	30000	H71912/HQ1
60	95	18	1.10	0.60	17.0	15.3	18000	30000	16.2	14.4	15000	24000	H7012
60	95	18	1.10	0.60	17.0	15.3	20000	34000	16.2	14.4	18000	30000	H7012/HQ1
65	90	13	1.00	0.30	16.8	14.5	17000	28000	16.0	13.7	15000	24000	H71913
65	90	13	1.00	0.30	16.8	14.5	19000	32000	16.0	13.7	17000	28000	H71913/HQ1
65	100	18	1.10	0.60	20.2	18.6	16000	26000	19.0	17.6	13000	20000	H7013
65	100	18	1.10	0.60	20.2	18.6	19000	32000	19.0	17.6	15000	24000	H7013/HQ1
70	100	16	1.00	0.30	20.9	17.8	16000	26000	19.7	16.9	13000	20000	H71914
70	100	16	1.00	0.30	20.9	17.8	18000	30000	19.7	16.9	15000	24000	H71914/HQ1
70	110	20	1.10	0.60	24.1	21.4	15000	24000	22.6	20.1	13000	20000	H7014
70	110	20	1.10	0.60	24.1	21.4	18000	30000	22.6	20.1	15000	24000	H7014/HQ1
75	105	16	1.00	0.30	21.7	19.3	15000	24000	20.5	18.2	13000	20000	H71915
75	105	16	1.00	0.30	21.7	19.3	17000	28000	20.5	18.2	15000	24000	H71915/HQ1
75	115	20	1.10	0.60	26.2	25.5	14000	22000	24.7	24.2	12000	19000	H7015
75	115	20	1.10	0.60	26.2	25.5	16000	26000	24.7	24.2	14000	22000	H7015/HQ1
80	110	16	1.00	0.30	22.4	20.8	14000	22000	21.2	19.6	12000	19000	H71916
80	110	16	1.00	0.30	22.4	20.8	16000	26000	21.2	19.6	14000	22000	H71916/HQ1
80	125	22	1.10	0.60	34.2	32.7	13000	20000	32.3	31.0	11000	18000	H7016
80	125	22	1.10	0.60	34.2	32.7	15000	24000	32.3	31.0	13000	20000	H7016/HQ1
85	120	18	1.10	0.60	26.1	24.2	13000	20000	24.7	22.9	11000	18000	H71917
85	120	18	1.10	0.60	26.1	24.2	15000	24000	24.7	22.9	13000	20000	H71917/HQ1
85	130	22	1.10	0.60	35.0	35.2	12000	19000	33.0	33.4	10000	17000	H7017
85	130	22	1.10	0.60	35.0	35.2	14000	22000	33.0	33.4	12000	19000	H7017/HQ1
90	125	18	1.10	0.60	27.0	26.0	13000	20000	25.5	24.6	11000	18000	H71918
90	125	18	1.10	0.60	27.0	26.0	15000	24000	25.5	24.6	13000	20000	H71918/HQ1
90	140	24	1.50	0.60	36.4	38.1	11000	18000	34.3	36.1	9500	16000	H7018
90	140	24	1.50	0.60	36.4	38.1	13000	20000	34.3	36.1	11000	18000	H7018/HQ1
95	130	18	1.10	0.60	27.3	26.9	12000	19000	25.8	25.4	11000	18000	H71919
95	130	18	1.10	0.60	27.3	26.9	14000	22000	25.8	25.4	13000	20000	H71919/HQ1
95	145	24	1.50	0.60	44.4	45.2	10000	17000	41.9	42.9	8500	14000	H7019
95	145	24	1.50	0.60	44.4	45.2	12000	19000	41.9	42.9	10000	17000	H7019/HQ1

ZYS® deep groove ball bearing
ZYS Deep groove ball bearings are suitable for high speed operation, and they are very durable without frequent maintenance. This kind of bearing has the characteristics of small friction coefficient, high limit speed, various sizes and forms; they are used in precision instruments, low noise motor, automobile, motorcycle and general machinery and other industries. It is one of the most widely used bearing in mechanical industry. It mainly bears radial load, and also can bear a certain amount of axial load. They have four available types: OPEN type (No shields), ZZ type (Metal shields), 2RS type (Contact rubber seals), 2RZ (Non-contact rubber seals).

Bearing Model						Dimension						Basic Load rating (kN)		Weight (kg)
Standard type	shield	seal		With snap ring groove	With snap ring	d	D	B	rsmin	D2 (max)	F max	Cr	Cor
635	ZZ	2RZ	2RS	N	NR	5	19	6	0.3	-	-	2.34	0.95	0.0080
636	ZZ	2RZ	2RS	N	NR	6	22	7	0.3	-	-			0.0134
637	ZZ	2RZ	2RS	N	NR	7	-	-	-	-	-			-
638	ZZ	2RZ	2RS	N	NR	8	28	9	0.3	-	-			0.0290
639	ZZ	2RZ	2RS	N	NR	9	-	-	-	-	-			-
6301	ZZ	2RZ	2RS	N	NR	12	37	12	1	41.3	1.12	9.70	4.20	0.060
6302	ZZ	2RZ	2RS	N	NR	15	42	13	1	46.3	1.12	11.4	5.40	0.082
6303	ZZ	2RZ	2RS	N	NR	17	47	14	1	52.7	1.12	13.5	6.55	0.115
6304	ZZ	2RZ	2RS	N	NR	20	52	15	1.1	57.9	1.12	15.9	7.80	0.141
6305	ZZ	2RZ	2RS	N	NR	25	62	17	1.1	67.7	1.7	22.5	11.6	0.219
6306	ZZ	2RZ	2RS	N	NR	30	72	19	1.1	78.6	1.7	28.1	16.0	0.350
6307	ZZ	2RZ	2RS	N	NR	35	80	21	1.5	86.6	1.7	33.2	19.0	0.454
6308	ZZ	2RZ	2RS	N	NR	40	90	23	1.5	96.5	2.46	31.4	22.4	0.639
6309	ZZ	2RZ	2RS	N	NR	45	100	25	1.5	106.5	2.46	52.7	31.5	0.836
6310	ZZ	2RZ	2RS	N	NR	50	110	27	2	116.6	2.46	61.8	38.0	1.05
6311	ZZ	2RZ	2RS	N	NR	55	120	29	2	129.7	2.82	71.5	45.0	1.35
6312	ZZ	2RZ	2RS	N	NR	60	130	31	2.1	139.7	2.82	81.9	52.0	1.70
6313	ZZ	2RZ	2RS	N	NR	65	140	33	2.1	149.7	2.82	92.3	60.0	2.10
6314	ZZ	2RZ	2RS	N	NR	70	150	35	2.1	159.7	2.82	104	68.0	2.50
6315	ZZ	2RZ	2RS	N	NR	75	160	37	2.1	169.7	2.82	114	76.5	3.00
6316	ZZ	2RZ	2RS	N	NR	80	170	39	2.1	182.9	3.1	124	86.5	3.60
6317	ZZ	2RZ	2RS	N	NR	85	180	41	3	192.9	3.1	133	96.5	4.25
6318	ZZ	2RZ	2RS	N	NR	90	190	43	3	202.9	3.1	143	108	4.90
6319	ZZ	2RZ	2RS	N	NR	95	200	45	3	212.9	3.1	153	119	5.75
6320	ZZ	2RZ	2RS	N	NR	100	215	47	3	227.8	3.1	174	140	7.00
6321	ZZ	2RZ	2RS	N	NR	105	225	49	3	237	3.5	182	153	8.25
6322	ZZ	2RZ	2RS	N	NR	110	240	50	3	252	3.5	205	178	9.54
6324	ZZ	2RZ	2RS	-	--	120	260	55	3	--	-	228	207	12.2
6326	ZZ	2RZ	2RS	-	--	130	280	58	4	--	-	229	216	18.0
6328	ZZ	2RZ	2RS	-	--	140	300	62	4	--	-	251	245	22.0
6330	ZZ	2RZ	2RS	-	--	150	320	65	4	--	-	274	284	22.7
6332	ZZ	2RZ	2RS	-	--	160	340	68	4	--	-	278	287	26.2
6334	ZZ	2RZ	2RS	-	--	170	360	72	4	--	-	325	355	36.6
6336	ZZ	2RZ	2RS	-	--	180	380	75	4	--	-	355	405	43.1
6338	ZZ	2RZ	2RS	-	--	190	400	78	5	--	-	355	415	49.7
6340	ZZ	2RZ	2RS	-	--	200	420	80	5	--	-	380	445	55.3
6344	ZZ	2RZ	2RS	-	--	220	460	88	5	--	-	410	520	73.9
6348	ZZ	2RZ	2RS	-	--	240	500	95	5	--	-	470	625	94.4
6352	ZZ	2RZ	2RS	-	--	260	540	102	6	--	-	505	710	118
6356	ZZ	2RZ	2RS	-	--	280	580	108	6	--	-	570	840	144

ZYS® Tapered roller bearings Main structural forms
1.Single row tapered roller bearing
Single row tapered roller bearing can limit the axial displacement of the shaft or shell in one direction and bear the axial load in one direction. Additional axial force is generated under the action of radial load. Therefore, in the two supports of the shaft, the end faces of bearing outer ring and bearing inner ring are oppositely mounted. If used alone, the applied axial force must be greater than the additional axial force. The 313 series tapered roller bearings have large contact angles (27°~ 30°) and can withstand large axial loads. The contact angle of tapered roller bearings in other series is between 10°and 18°.
2. Double row tapered roller bearing
Double row tapered roller bearing has a pair of raceway outer ring and two inner rings, and a middle spacer between the two inner rings. The thickness of the spacer can be adjusted to adjust the bearing clearance. Double row tapered roller bearing can bear the bidirectional axial load while bearing the radial load. It can limit the bidirectional axial displacement of the shaft or shell within the axial clearance range of the bearing.
3. Four row tapered roller bearings
Four row tapered roller bearings adopt two double raceway inner rings, one double raceway outer ring and two single raceway outer rings, and there are spacers between inner ring and outer ring for adjusting clearance. It has similar performance with double row bearing: large radial load and low limit speed. Four row tapered roller bearings are mainly used for heavy machinery, such as rolling mill.

Designation	d	D	T	B	C	Load Ratings		Fatigue Load	Speed Ratings		Mass
								Limit	Lubrication
	mm					Dynamic [C]	Static [C0]	Pu(kN)	Grease	Oil	Kg.
32205	25	52	19,25	18	15	45.7	48.4	5.12	10000	13000	0.19
32206	30	62	21,25	20	17	64.4	62.7	6.93	9000	11000	0.28
32207	35	72	24,25	23	19	84.2	85.8	9.35	8000	9500	0.43
32208	40	80	24,75	23	19	93.5	95.2	10.78	7000	8500	0.53
32213	65	120	32,75	31	27	166.1	212.3	25.08	4000	5600	1.5
32214	70	125	33,25	31	27	172.7	228.8	26.95	3800	5300	1.6
32215	75	130	33,25	31	27	177.1	233.2	26.95	3600	5000	1.7
32216	80	140	35,25	33	28	205.7	269.5	31.35	3400	4500	2.05
32217	85	150	38,5	36	30	233.2	313.5	36.85	3200	4300	2.6
32218	90	160	42,5	40	34	276.1	374	42	3000	4000	3.35
32219	95	170	45,5	43	37	309.1	429	47	2800	3800	4.05
32220	100	180	49	46	39	350.9	484	53	2600	3600	4.9
32221	105	190	53	50	43	393.8	561	61	2600	3400	6
32222	110	200	56	53	46	442.2	627	67	2400	3200	7.1
32224	120	215	61,5	58	50	514.8	764.5	79	2200	3000	9.15
32226	130	230	67,75	64	54	605	913	94	2000	2800	1.15
32228	140	250	71,75	68	58	708	1100	110	1900	2600	1.45
32230	150	270	77	73	60	811	1254	123	1700	2400	17.5
32232	160	290	84	80	67	968	1540	145	1600	2200	2.55
32234	170	310	91	86	71	1111	1793	165	1500	2000	28.5
32236	180	320	91	86	71	1111	1793	165	1400	1900	29.5
32240	200	360	104	98	82	1331	2200	198	1300	1700	42.5
32244	220	400	114	108	90	1771	2970	255	1100	1500	60
32248	240	440	127	120	100	1969	3685	303	1000	1400	83.5
32252	260	480	137	130	106	2420	4015	330	900	1200	105
32260	300	540	149	140	115	3025	5225	402	800	1100	140

ZYS® cylindrical roller bearings
Double-row cylindrical roller bearing used for lathe spindle etc. high speed and high stiffness application. Three series: NN30, NN49, NNU49 Features: Both of the inner & outer ring and the roller are used high quality bearing steel. Can choose bearing cage according to the specific application. High performance PPS resin series or roller guide copper alloy cage.
ZYS® spherical roller bearings
Application of Spherical roller bearings: Mechanical Fans and Blowers, Gearbox and Pumps, Wind Turbines, Material Handling , Offshore Drilling, Mining and Construction Equipment, Pulp and Paper Processing Equipment.
Spherical roller bearings have two rows of rollers that are mainly used for withstanding radial loads and also axial loads in either direction. Self-aligning roller bearings have high radial load capacity, especially suitable for heavy load or vibration load, but can not withstand the axial load. Spherical roller thrust bearings have good self-aligning properties and can compensate for the coaxiality error.
ZYS® needle roller bearings
The needle bearing is roller bearing with a cylindrical roller, which is both thin and long with respect to its diameter. In spite of the smaller cross section, the bearing still has a high load bearing capacity. The needle bearing is equipped with thin and long rollers (roller diameter D ≤ 5mm, L/D ≥ 2.5, L means the length of the roller), therefore its radial structure is compact. When the inner diameter size and load capacity are the same as those of other types, the outer diameter is the smallest, which is particularly suitable for a support structure in which the radial installation size is limited. This type of bearing has a radial needle and thrust full of ball, or with a thrust ball, or with a thrust cylindrical roller, or with the angular contact ball into one, can withstand unidirectional or two way axial load. Can also be designed according to the user's specific structural requirements.
ZYS® Slewing bearings
The workshop covers an area of 18000,and there are 102 production facilities. The slewing bearing production capacity is 600 pieces per month. We have the capacity to manufacture products from ¢100mm to ¢7000mm independently. Besides that, depending on our complete quality control system we can produce 12000mm slewing bearing.
ZYS® one way clutch bearings ZYS One Way Bearings are divided into open type and sealed type. The keyway can be machined on the inner ring and outer ring.
ZYS freewheel clutch is mainly used in such applications as speed conversion, reversal preventing, intermittent movement and etc. Working principle is to use friction generated by wedge, spring and such compression elements to transmit torque.Features: Small size, transmitting high torque, smooth combining, high slip combining, working without noise, etc.

ZYS® ball screw bearings
Ball screw bearings can withstand large axial loads in a single direction, and can also withstand a certain radial load at the same time. Ball screw support bearings usually need to be used in double or multiple combinations, and the matching method is the same as angular contact ball bearings.
ZYS ball screw bearing is a one-way angular contact thrust ball bearing with contact angle of 60°. It has good performance of high precision, high speed, high axial stiffness, low friction, long life and high&low speed transition conversion. ZYS ball screw bearing is particularly suitable for ball bearing lead screw and similar transmission components in high speed precision CNC machine tools.
ZYS ball screw thrust bearings have 7602 and 7603 series, which are standard metric with internal diameters from 12mm to 130mm in accordance with JB/T8564 standard.
ZYS® cross roller bearings
ZYS precision cross cylindrical roller bearings can simultaneously bear radial load, bidirectional thrust load and overturning moment, and have high rigidity.
This type of bearing is suitable for rotating tables in machining centers, joint parts or rotating parts of industrial robots, rotating parts of manipulators, medical equipment, precision rotating tables, IC manufacturing devices, measuring instruments, etc.
Inside the cross cylindrical roller bearing, the rollers are arranged at 90°to cross each other vertically, and the structure is compact. ZYS precision cross cylindrical roller bearings have three structural forms: with full complement rollers, with cages, and with interval retainers. Among them, bearings with full complement rollers are suitable for low speed and heavy load conditions; while bearings with cage and with interval retainer is suitable for the working condition of small friction torque and high speed.

ZYS® pillow block bearings
The insert ball bearing is a bearing unit that combines rolling bearing and bearing seat together. Most insert ball bearings have spherical outer
diameters and are installed together with imported bearing seats with spherical inner holes. They have various structural forms, good versatility
and interchangeability. At the same time, the insert ball bearings are also self aligning in design, easy to install, and have a doublestructured sealing
device, which can work in harsh environments.
The bearing housing of insert bearings is generally formed by casting and usually have are vertical seat (P), square seat (F), round seat (FC),
diamond seat (FL), slider seat (T), etc.
Radial insert ball bearings can be divided into three categories according to the way of matching with the shaft:
1. Outer spherical ball bearing with top wire
2. Tapered spherical ball bearing
3. Outer spherical ball bearing with eccentric sleeve
Race: ZYS uses the most advanced technology-cold extrusion process.
Besides, the race will make two or three times temper to guarantee its high precision.
Rolling element: ZYS use the rolling technology to process the roller and the steel ball of high precision bearing, in order to promote productive
efficiency and prolong the bearing working life. The hardness and the diamention stability will also be promoted.
Steel cage: optimized bearing cage makes the bearingreached advanced level in china at surface abrasion resistance and fatigue strength. Types of Pillow Block Bearing:
UCP UCF UCFB UCFA UCK UCT UCFL UCFLU UCFC UCFU UELP UELK UKP UKF UKFL NAP NAFC NAFU NAFL NAFLU UCPH UCPA ......
ZYS® Constant Thin Section bearings Size: 8*8mm; 13*13mm; 20*20mm
Bore Diameter: 25~360mm
Outer Diameter: 65~400mm
RING MATERIAL:GCr15
CAGE MATERIAL:Phenolic resin
Features: Low friction torque; high rigidity; good rotation accuracy
MAIN APPLICATION: Stepper motor, medical equipment, office equipment, testing instruments, robots, optical variable speed device, image equipment, rotary encoder.
ZYS® Railway bearings
ZYS has been committed to the research and development of high-speed railway bearings and rail transit series bearings for a long time. Our personalized solutions could cater for the requirements and trend increasing speeds,loads,comfort,service life reliability and security. Recently, the company has conducted deep and systematic reseach in bearings optimization design, manufacturing, lubrication, seals and performance tests when speed up to 350Km/h, the company has mastered a number of key technologies,and developed products with reliable quality, superior performance. ZYS® Medicial enquipment
ZYS has developed various structure types of medical equipment bearings, including thin scetion deep groove ball bearings, angular contact ball bearings, taper roller bearings and cross roll bearings,etc. Characteristics: Compact structure, high reliability, long life, low noise, high precision, low friction moment, etc. These bearings have been widely used in the gamma knife, CT machines, nuclear magnetic resonance instrument, medical tower and other medical enquipment.
ZYS® Rolling mill bearing
Our products are used in the working roller, supporting rollers and unwinding machines, coiling machines, roller conveyor and other auxiliary equipment, our company has extensive expertise and experience in rolling mill bearing design, selection and installation, maintenance, etc.

Company Profile
Why choose ZYS bearing:
ZYS has an independent R&D center and a core technology system with independent intellectual property rights. ZYS technical team and R&D equipment scale are at the forefront of the bearing industry. ZYS has many scientific research, testing and service institutions such as the National Bearing Quality Supervision and Inspection Center and the National Bearing Accreditation Laboratory. ZYS has achieved 908 major scientific research projects and has 792 authorized patents.
Simulation analysis and design technology: ZYS has a post-doctoral research station, an experienced team of domestic and foreign experts, complete bearing professional analysis and finite element analysis software, which can systematically analyze and design the mechanics, kinematics and dynamics properties of bearings and bearing components.
Material technology: ZYS specializes in the research and development of bearing special steel, forming and heat treatment technology, bearing lubrication and sealing materials to ensure that the bearings can meet the requirements of various complex working conditions such as long life, impact resistance, heavy load, high and low temperature.
Simulation bench test technology: ZYS possesses test technical specifications, test equipment, and test equipment development capabilities and test data processing and analysis capabilities for various types of bearings under various working conditions, providing strong support for customer product development.
Professional application technical services: ZYS has more than 380 engineering and technical personnel in bearing-related disciplines, and maintains a leading position in bearing design, basic theoretical research, lubrication technology, metal and non-metal materials, testing, and industrial standards. ZYS professional service team provides customers with systematic bearing application technology solutions including bearing selection, design, materials, testing, and process equipment.
Our Advantages
Certifications ZYS Quality assurance
ZYS bearing products
Packaging & Shipping ZYS Packing :
FAQ
Q: Are you trading company or manufacturer?
A: ZYS is bearing manufacturer, the only first-class comprehensive research institute in China bearing industry.
Q: How do you control quality of bearing?
A: ZYS has established quality control systems for each kind of bearing and spindle. All products and services passed ISO9001-2008 Quality Certificate.
Q: What is the MOQ?
A: It depends on the bearing type. You can send inquiry or send e-mail for more information.
Q: How about the package?
A: Industrial packing in general condition (Plastic tube+ carton+ pallet). Accept design package when OEM.
Q: How long is the delivery time?
A: It will take about 10 to 40 days, depends on the model and quantity.
Q: How about the shipping?
A: We can arrange the shipment or you may have the forwarder.
Q: Is sample avaiable?
A: Yes, sample order is acceptable.
Q: Can we use our own LOGO or design on bearings?
A: Yes. OEM is acceptable. We can design the bearing with your requirements and use your own LOGO and package design.
Exhibition
