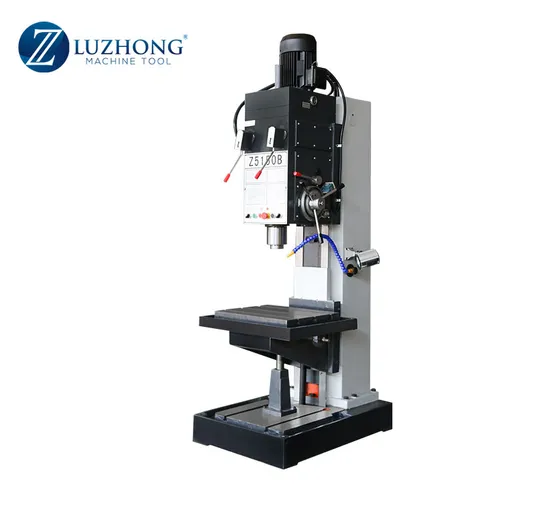

Square column vertical metal high precision Z5150B drilling machine
Basic Info.
Model NO.
Z5150B
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
Conventional
Hole Diameter
<50mm
Automatic Grade
Semiautomatic
Precision
Normal Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Square column vertical metal high precision Z5150B
Max. drilling dia.
50mm
Spindle travel
350mm
Distance between spindle nose and stand
750mm
Distance from spindle axis to column
350mm
Transport Package
Plywood Case with Steel Base
Specification
1090*900*2530MM
Trademark
luzhong
Origin
China
Production Capacity
50000 Pieces/Year
Packaging & Delivery
Package Size
1110.00cm * 920.00cm * 2550.00cm
Package Gross Weight
1370.000kg
Product Description
Square column vertical metal high precision Z5150B drilling machineProduct Description
Product Parameters
| SPECIFICATIONS | Units | Z5150B |
| Max. drilling dia. | mm | 50 |
| Max.feed resistance | N | 16000 |
| Max. allowble torque | N.m | 350 |
| Spindle taper | - | MT5 |
| Spindle travel | mm | 250 |
| Distance between spindle nose and table surface | mm | 750 |
| Distance from spindle axis to column surface | mm | 350 |
| Spindle box travel | mm | 200 |
| Spindle speed range | rpm | 31.5-1400 |
| Spindle speeds steps | - | 12 |
| Spindle feed range | mm/r | 0.056-1.8 |
| Spindle feed steps | - | 9 |
| Table size | mm | 560*480 |
| Table travel | mm | 300 |
| Main motor power | kw | 3 |
| Coolant motor power | kw | 0.09 |
| Machine weight | kg | 1350 |
| Overall dimension | mm | 1090*900*2530 |
Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
