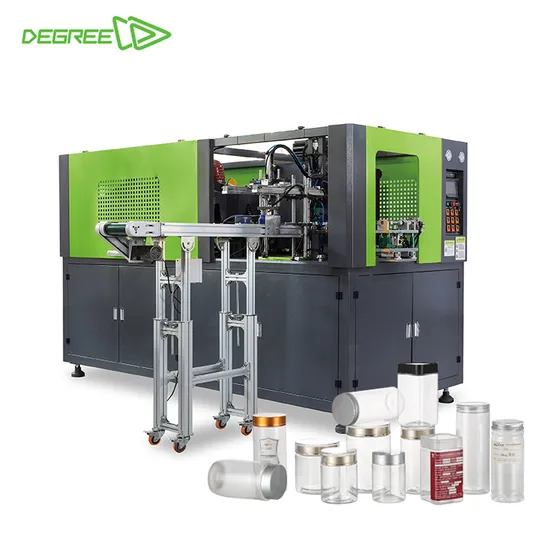

Wide Mouth 2 Cavity Plastic Pet Bottle Blow Molding Machine
Basic Info.
Model NO.
DEG-A2-120MM
Raw Material
PET
Making Method of Parison
Stretch Blow
Automation
Automatic
Computerized
Computerized
Certification
CE
Machine Type
Pet Stretch Blow Molding Machine
Mould Cavity
2
Bottle Neck
40-120mm
Bottle Size
1000-5000ml
Output
1000-1200bph
High Air Compressor
2.4m3/3.0MPa
Low Air Compressor
2.0m3/1.0MPa
Mould Chiller
5HP
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Transport Package
Wooden Cases
Specification
3000kg
Trademark
Degree
Origin
Taizhou, Zhejiang, China
HS Code
8477309000
Production Capacity
100 Sets/Year
Product Description
Product Descriptionwhat is Blow Molding Machine?
Blow Molding Machine is one kind of two step stretch type bottle making plant.
Blow Molding Machine is suitable to produce plastic bottles based on PET raw material.
Blow Molding Machine is widely used to produce carbonated soft drinks
bottles, mineral water bottles, cooking oil bottles, medicine bottles, cosmetic bottles, wide mouth Jars and hot filling juice bottles etc
Detailed Photos
Product Parameters
| MODEL | DEG-A2-120MM | |
| OUTPUT | Based on sample | 1200PCS/H |
| CONTAINER SPEC. | Bottle body diameter | 40mm-200mm |
| Body height | 100mm-360mm | |
| Neck size | 50mm-120mm | |
| MOLD | Cavities | 2cavity |
| MACHINE POWER | Power Voltage | 380v 50HZ |
| Install power | 45kw | |
| Actual power | 25kw | |
| AIR SUPPLY | Low air compressor | 2.0m3/min 1.0MPa |
| High air compressor | 2.4m3/min 3.0MPa | |
| Air dryer | 2.0m3/min 3.0MPa | |
| COOLING WATER | Cooling water capacity | 30L/min |
| MAIN MACHINE DIM. | L*W*H | 3000*1900*2000mm |
| Weight | 3000kg | |
Certifications
Packaging & Shipping
Company Profile
FAQ
Q1 :What kinds of product you supply?
A1: Blow Molding Machine, Extrusion Molding Machine ,Preform Mould ,Cap Mould, Blow Mould,Filling Machine, Packaging Machine, Plastic Products, etc
Q2: How to tell your enquiry ?
A3: Contact us by email,phone call, fax,instant Messenger (Trade manager , Whats app, Skype) and let us know your inquiry.
Q3: How to choose suitable machine?
A3: Tell us your requirement, and we will advise you.
Q4: Do you have technical support after we purchased your machine?
A4: - We will provide video technical support,online support.
- If you need,we can also arrange our professional technical to go aboard to your factory,they will help and teach you how to install and maintenance the machine.
