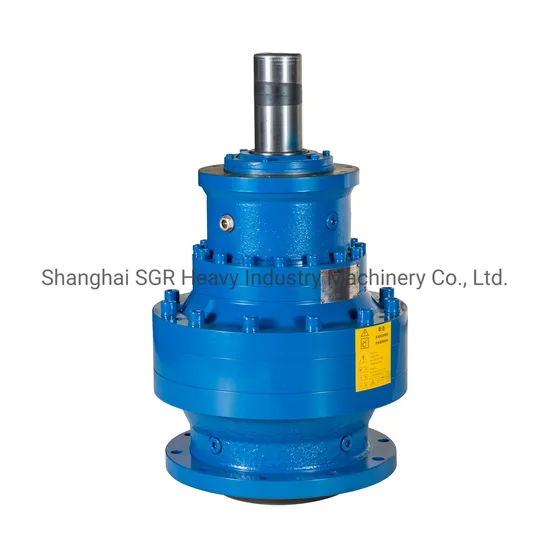

Hydraulic Transmission Planetary Gearbox Reducer for Industry Machinery

Product Description

Hydraulic Transmission Planetary Gearbox Reducer for Industry Machinery
Technical Parameter:
Output Torque Range: 1000 to 450,000 N.m
Transmissible Mechanical Power: up to 450 kW
Gear Ratios: 3 to 9000
Gear Unit Versions:
In line (Co-axial )
Right angle (with a spiral bevel gear set)
Output Configuration:
Foot and flange mounted
Output shaft: solid with key, spline, spline hollow,
Hollow with shrink disc
Input Configurations
Flanged axial piston hydraulic motors
Hydraulic orbit motors
IEC and NEMA motor adaptors
Solid input shaft
Hydraulic Brake: Hydraulically released parking brake on request
Data Sheet :

Torque range	1000 ... 540000 Nm	Input	IEC Flange
Mechanical rating (n1 = 1500 min-1)	up to 200kW		Electric motor
Gear ratios	3.15 ... 5000		Solid input shaft with or without fan cooling - inch or metric dims.
Gear unit versions	In line	Applicable AC motors	Integral motors and brake motors
	Right angle (with bevel gear set)		IEC-normalized motors and brake motors
Mounting type	Foot		Single and dual speed motors
	Flange mounted	Main brake features	DC and AC supply
	Torque-arm		Faster brake reaction through electronically controlled rectifier
Output shaft options	Solid shaft	Main motor options	Thermistors and thermostat sensors
	Splined shaft		Independent forced cooling
	Female splined shaft		Line driver and push-pull incremental encoder
	Hollow shaft with shrink disc

ABOUT US:
Shanghai SGR Heavy Industry Machinery Co., Ltd.(formerly known as Shanghai Great Wall Reducer Co., Ltd. ) (sgrgear.en.made-in-china.com) has accumulated rich original designing & manufacturing experience after being founded in 1996. SGR brand planetary gear reducer has won honor of "Science
and Technology Advancement Prize" awarded by the National Speed Reducer & Variator Industry Association.
We produce planetary gear units, planar double-enveloping worm gear speed reducers (cone worm gear reducer), helical-bevel gear motors, worm gear reducers, helical worm gear motors, helical gear motors and many other types of gear units. SGR gear motors and gear units have given satisfactory performance in different industrial applications, including metallurgy, mineral, architecture, shipbuilding, petroleum combination, aviation space-flight, lift routeing, textile mechanic, cement, pharmaceuticals, pumps, general mechanic and other domain.
With the advantage of high quality & competitive price, SGR gear motor and gear units are widely welcomed in the domestic market and exported to Southeast Asia, Middle Asia, North America and European countries etc.
With the excellent testing program, SGR company is always keeping up with the most advanced technology in the world. We have already acquired DNV-ISO9001: 2008 certificate,SGS, CE etc and a patent on SGR branded gearbox.
We have adopted advanced CAD and CIMS in design & manufacture, which help our engineers develop 3 - 5 series of new efficient products each year. All staff in sales & service department are well trained termly, thus you will be always warmly welcomed and understood by our company
