China Supply Australlian Standard CE Standard Full Downdraft Car Paint Spray Booth Manufacturer

Product Description

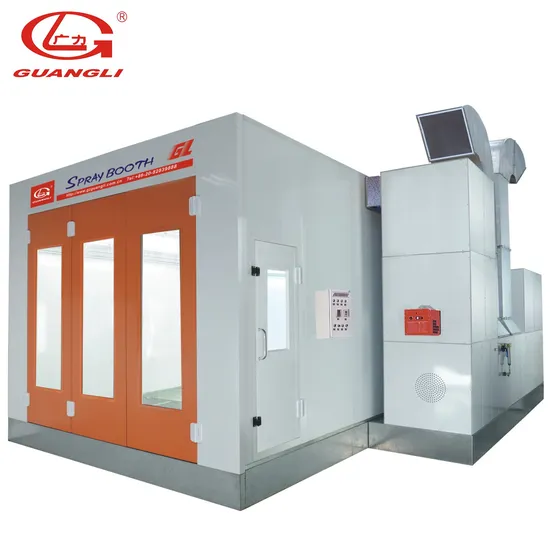

Full Downdraft Auto Paint Spray Booth
Spray paint booths represent one of the greatest improvements made toward cost-effective productivity in modern manufacturing. You maybe have some items to paint in a spray booth, like cars, trucks, boats, planes, parts and furniture, no matter what size, industry or application, we can design to fit your needs.
This car paint booth is considered as the most ideal model for the auto repair shops of our customers from home and abroad. It is usually applicable for both car repair factories and common car 4S shops in those countries or regions where the environmental protection is demand.
GL2000-A1 Spray Booth Description
--Wall panel: sandwich style, δ=50mm, rock wool. (Polystyrene is optional)
--Basement: steel strucutre, 3 rows of vein board and 2 rows of grids, full grids as optional.
--Door: 3 pcs of front door without aluminum side cover. 1 pcs of emergency door with pressure lock.
--Ramp: 2 pcs of vein board.
--One 7.5kw intake fan and one 5.5kw exhaust fan
--4m straight exhaust ducts, one 90° bend, and one 60°bend, 5m straight chimney and 2 small bends.
--Spraying/baking transition damper, automatically air controlled.
--Heat exchanger:stainless steel.Riello G20 burner.
--Roof filter: 4 pcs of filter, mounted above support frame, which is made of steel and podwer coated.
--2 pcs of floor filter and 1 pcs of outlet filter.
--Upper light: 10sets, 4*18W per set.
--Side light: 8sets, 2*18W per set.
--Control box: Main CE components ,overload, overheat, phase-lacking protection, straight driven motor.
--Automatically stop when preset time is up. Constant temperature spraying.
--Environmental filter: the equipment canbe adopted M style activated carbon or drawer style activated carbon as optional.

Model	GL2000-A1
External size (m)(LxWxH)	7.0X5.3X3.5
Internal size (m)(LxWxH)	6.9x3.9x2.7
Entrance Width(m)	3.0
Entrance Height(m)	2.66
Fan capacity( m 3 /h )	24000
Air velocity (m/s)	0.25-0.35
Drying Temperature	20-80
Oil consumption (L/unit)	6-8
Power (kw)	16
Suitable Automobile Type	Saloon car

Guangli Spray Booth Show
Our installation instruction and service team
Guangli packages
Real Case
GZ Guangli's paint booths can be widely found in automotive, machinery, hardware, furniture, fiberglass products, chemical and more industries. They are approved by customers whose projects have been successfully executed by us. Whether you need a common automotive paint booth, furniture paint booth or large equipment paint booth, you can rely on GZ Guangli to get the job done with results satisfying your expectation. We thrive on servicing our customers by customizing various non-standard paint booths to your specific needs.
Factory Show
Established in 1994,GZ GUANGLI EFE CO.,LTD is located in Zengcheng,Guangzhou, combining
technology,industry and trade together and a diversified industrial enterprise mainly engaged in the
development, production and marketing of automobile maintenance equipment. It is a director unit of
China Automobile Maintenance Equipment Association Maintenance Equipment Association.
Our Production Equipment
As a trustworthy company we have heavily invested in purchasing advancedmanufacturing equipment to guarantee the high precision and premium quality for each product.
German Up&Down Bending Machine,German Welding Robot, Finland CNC Punching Machine, Italy Full-automatic Metal-plate Flexible Manufacturing Line. All our paint spray booth are molded production through these advanced machine . Good-looking and high quality compare with manual work.
Our Convention Exhibitions
Our Team
Our corporation customers
Our factory are authorised manufacturer of many different types of car brands 4S shop
Our Products Quality
GZ Guangli is well-known in the industry as it is at the forefront of the productivity and sales over the years in the domestic paint booth market. Our company is certified in accordance with ISO9001:2021 quality management system, our products have been awarded the CE certificate, CCS (China Classification Society) certificate, ETL certificate, CU-TR certificate, SGS certificate, etc.
Our main markets
In addition to domestic market, our paint booths have been exported to over 50 countries and regions. The sales accounted for international market is more than 50% of the total. We have won a favorable brand reputation across a diverse range of market segments worldwide.
Service after the Sale
Our relationships with our customers don't stop once the product has been installed. Guangli offers manyoptions for service and maintenance, and provides a full line of replacement parts and filters to ensure your products operate at peak efficiency.

FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in Iron frame packing and Carton packing.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and
packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery
time depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends
with them, no matter where they come from.
