Woodworking Engraving Craving 3 Axis 3D Milling and Cutting CNC Router Machine

Product Description

Woodworking Engraving Craving 3 Axis 3D Milling and Cutting CNC Router Machine 08
Product Description

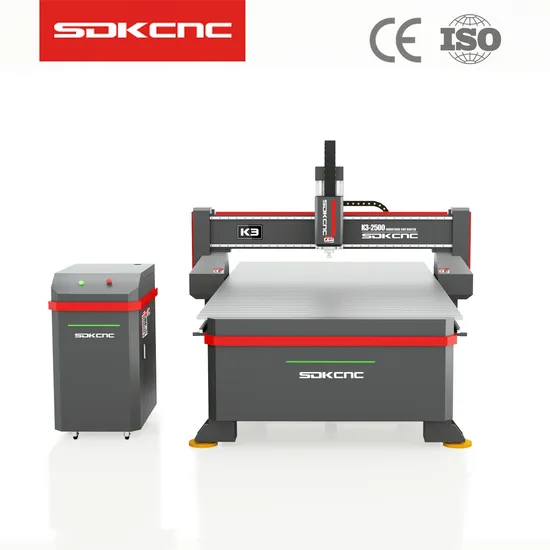

Δ K3-2500 is an industrial engraving machine independently developed and produced by SDKCNC.It adopts 3-axis CNC control system, The machine embodies a top open fixed platform design meticulously engineered to facilitate high-speed engraving and cutting functionalities specifically tailored for plate materials.It offers the flexibility of customizing multi-head synchronous or asynchronous structures. This ensures that the K3-2500 seamlessly caters to diverse manufacturing needs and applications, allowing for precision and efficiency across various industries.
Δ The operational simplicity of the K3-2500 is one of its standout features,forged from thick-walled steel with a meticulously welded bed, undergoes a thorough time stress relief process. The whole machine adopts high-speed stepping drive, Y-axis dual motor drive,so it's running stably and reliably.Adopts precision milling helical gear rack, straight guide rail, silent screw rod.Moreover, its steel structure beam and the inclusion of a 3.2KW water-cooled main spindle, spinning at 24000RPM, signify its capacity for high-performance operations. Should the need arise, the K3-2500 readily accommodates air-cooled spindles.
Δ It is easy to operate, supports PLT/DXF/EPS and other formats generated by CAD/CAM software, such as AUTOCAD, UG, AI and so on. From the robustness of wood to the durability of stone, the flexibility of PVC, the transparency of acrylic, the resilience of ABS, and even intricate materials like epoxy resin plates and phenolic boards, the K3-2500 handles them all with finesse. Its proficiency shines, particularly in dealing with hard materials, making it an ideal choice for various industries engaged in plate processing, furniture manufacturing, and crafting elaborate embossed artworks.

Detailed Photos

01 BED STRUCTURE
Heavy duty welded bed with Thick-walled square tube in stress aging relief
All planes and installation holes are precision machined by gantry milling
02 TRANSMISSION
Transmission:X/Y-axis with helical rack & linear guide rail,Z-axis with mute screw
03 DRIVE MODE
high speed stepper motor drive
Y axis with double motor drive
04 SPINDLE
This facility adopts high pulling torque spindle ,Standard water cooling
spindle power 3.2 kw,speed from 1-24000RPM
Interchangeable air-cooled spindle
05 WORKING TABLE
Aluminum clamping table with T-slot

Product Parameters

Technical Parameter
Working Area	1300 x 2500 mm
Repeat position accuracy	±0.01 mm
Spindle Power	3.2Kw (1-24000 RPM)
Spindle Type	water-cooling
Spindle	Single-spindle
Drive motor	High Speed Stepper Motor
Type Name	K3-2500
Working Table	Aluminum clamping table with T-slot

Application Industry
Δ It widely used for high speed cutting and engraving of Acrylic,PVC,wood,aluminum plates,insulting boards,ABS board,aluminum-plastic plates,thick foam,PVC,MDF board ,expansion sheet.
Δ Normally apply to advertisement logo,sliding door ,packaging ,furniture,showcase,architectural models,metal signs .Suitable for processing various hard boards.

Packaging & Shipping
Company Profile
Our Advantages
FAQ
Q1: I knew nothing about this machine, what kind of machine i should choose?
Just tell us your materials ,thickness ,size and processing demands ,then we will give you best solutions and suggestions.

Q2: When I got this machine, but I don't know how to use it. What should I do? We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.

Q3: If some problems happen to this machine during warranty period, what should I do? We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.

Q4:When will delivery the machine after we got the down payment?
Fastly delivery .Normally we need take 15-20 days for one set .Above 2 sets ,we can negotiate .

Q5:How do you provide after-sales services?
You need confirm with our engineer in the group what the problem is ,and our engineer will confirm with if can solve it by remote guidance ,if cant solve it by remote video talking ,then we will send the acceptable express for replacing parts for you quickly.
