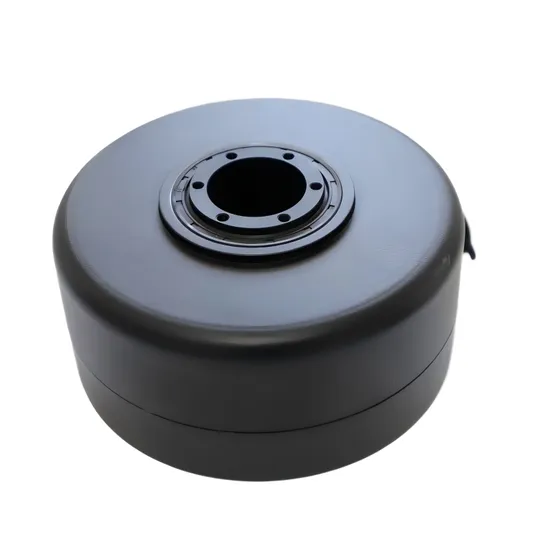

Keya Autopilot System Electric Steering Wheel Motor for Precision Tractor Automatic Driving Agopen GPS System (Ky170dd01005-08)

Product Description

\Product Description
This autopilot motor KY170DD01005-08G is developed and produced by KEYA in China. It started to be sold in 2019 and entered the global market in 2021, helping the development of precision agriculture in the world. At present, this electric steering wheel motor has a market share of 60% in the Chinese market. Direct customers are engaged in the precision agriculture navigation business line. They have their own navigation brands. Our motor is used as an accessory for the entire tractor automatic driving navigation system. This servo is currently very popular in Europe, Russia, the United States and other regions. Most end users who use AgOpen GPS navigation are using this motor.
Product Parameters

Specification of automatic steering motor
Rated Voltage	DC12V/24V
Rated Power	50W
Rated Current	10A
Rated Speed	100rpm
Instantaneous Max. Current	20A
Working Mode	Speed mode; Positioin mode
Undervoltage Protection	7V (Adjustable)
Overvoltage protection	32V(Adjustable)
Control Methods	RS232/CAN
Feedback Part	Incremental encoder
Ambient Temp.	-25±55ºC
Storage Temp.	-35±65ºC
Protection Level	IP55
Cooling Method	Natural Cooling
Weight	≤5kg

Detailed Photos
1 x autosteer motor,(3rd generation, for AGopengps, or your own brand, NOT for CEREA navigation system, if you use CEREA, please leave message in advance)
1 x steering wheel, diameter 41cm.
1 x prewired cable (1.5m long) with connector
1 x mounting brackets, it can matched most of tractor model.
1 x USB-RS232 cable to connect with keya configuration software.
1 x adapter, it connect the autopilot motor to the tractor steering shaft.
Notice: different tractor model has different spline sleeve, if you have several tractors, and you want test 1 sets motor kit for all of your tractors, let me know, I will help you.
When you need any help, you can contact us freely.
Autopilot motor Interface Definition

1	IN+	Power input+
2	IN-	Power input -
3	TX	RS232-TX
4	RX	RS232-RX
5	GND	GROUND
6	CAN-H	CAN-H
7	CAN-L	CAN-L

Producing&Application
Certifications
Packaging & Shipping
Standard export carton with spongeSize : base on the orderWeight : base on the orderDetail data will be confirmed before shipping
After Sales Service

Pre-service	After Sales Service
Inquiry and Consult Support Sample testing Support View our Factory	Help instal and use the product 24 hours online problem solving
