Double Layer Napkin Tissue Manufacturing Machine Price
| US$7,500.00-13,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
JY-CJZ-B200-400
Control
Automatic
Embossing Type
Full-Embossing
Embossing Roller
Paper Roller
Tissue Packaging
Bag
Function
Folding
Tissue Type
Pull Out
Product Unfolded Size
200*200-400*400 mm
Product Folded Size
100*100~200*200+/-2mm
Jumbo Roll Diameter
Under 1200mm
Jumbo Roll Inner Diameter
76.2mm
Production Speed
400-600PCS/Min
Color Printing
Flexible Printing1-4 Colors
Embossment Unit
Steel to Paper Roller
Requested Power
3 - 5kw
Overall Size (M)
4.5*1.0*1.5m to 7*1.5*2m
Weight
1500kg-3000kg
Transport Package
Wooden Cases
Specification
4.5*1.0*1.5m
Trademark
Jingyi
Origin
China
HS Code
84418089
Production Capacity
200sets Per Year
Product Description

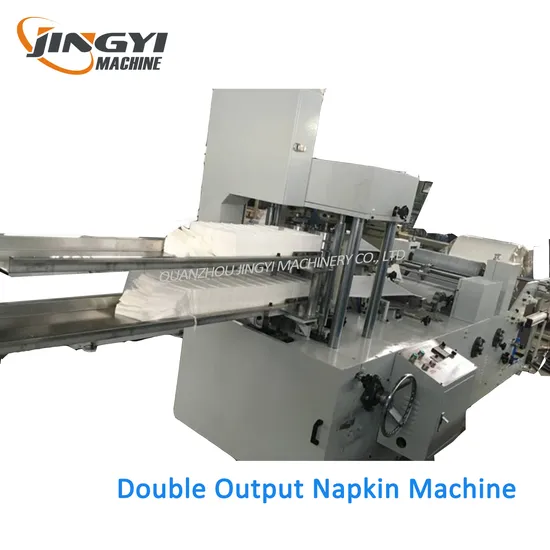

Double Layer Napkin Tissue Manufacturing Machine PriceEmbossing Napkin Folding Machine is to cut through the paper tray after embossing and automatically folded into a square or rectangular-shaped napkin open. Clear and bright overlay accuracy, high speed stationary, is the processing of special equipment for high-grade napkins.
Main function characteristics Transmission belt drive configuration The whole machine frame is wallboard type design Pattern matching paper rolling device, pattern significantly Electronic counting dislocation row of output Folding board with mechanical hand with the folded shape, cutting through the band saw cutter Other standard models can be customized Main technical parameter:
| Product unfold size | 200*200mm-400*400mm |
| Product fold size | 100*100mm-200*200mm |
| Raw material jumbo roll size | 1100 mm |
| Jumbo roll paper core diameter | 76.2 mm |
| Working capacity | About 200m/min |
| Embossing unit | Steel to paper |
| Counting unit | Electronic counting |
| Machine power | 4.5KW |
| Dimension | 3900*900*1500mm |
| Weight | About 1400kg |
Contact Us:
Quanzhou Jingyi Machinery Co.,ltd
Add: Jiangnan Street,Licheng District, Quanzhou,Fujian
Name: Martin Wu
Mob: 0086-13615946593
