Profibus Cable PA 1X2X18AWG Industrial Communication Control Cable Fieldbus Cable Belden 1 Pair Signal Bulk Copper Wiring Twisted Pair /Prysmian PE/Fpe/PVC

Product Description

PROFIBUS PA Cable Application
PROFIBUS Process Automation (PA) for the connection of control systems to field instruments on process automation applications.
Dual Layer screens against strong electromagnetic interference

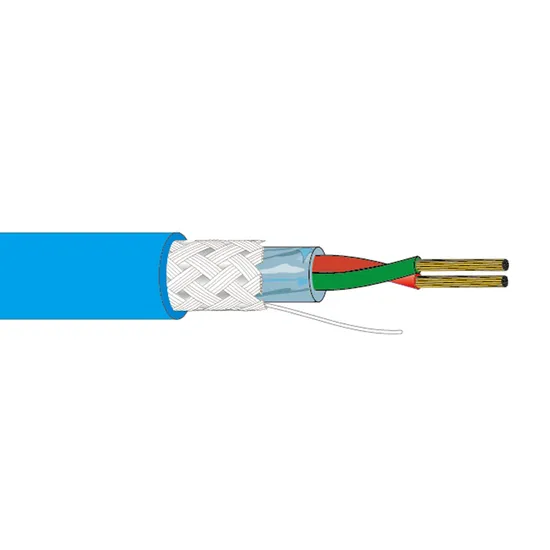

Construction
1. Conductor: Solid Oxygen Free Copper (Class 1)
2. Insulation: S-PE
3. Identification: Red, Green
4. Filler: Halogen Free Compound
5. Screen:
1. Aluminum/Polyester Tape
2. Tinned Copper Wire Braided (60%)
6. Sheath: PVC/LSZH
7. Sheath: Blue
(Note: Armor by Galvanized Steel Wire or Steel Tape is upon request.)
Standards
BS EN/IEC 61158
BS EN 60228
BS EN 50290
RoHS Directives
IEC60332-1
Installation Instructions
Installation Temperature: Above 0ºC
Operating Temperature: -15ºC ~ 70ºC
Minimum Bending Radius: 8 x overall diameter
Electrical Performance

Working Voltage	300V
Test Voltage	2.5KV
Characteristic Impedance	100 Ω ± 10 Ω @ 1MHz
Conductor DCR	22.80 Ω/km (Max. @ 20°C)
Insulation Resistance	1000 MΩhms/km (Min.)
Mutual Capacitance	60 nF/Km @ 800Hz
Velocity of Propagation	66%

Product Parameters

Part No.	No. of Cores	Conductor Construction (mm)	Insulation Thickness (mm)	Sheath Thickness (mm)	Screen (mm)	Overall Diameter (mm)
AP-PROFIBUS-PA 1x2x18AWG	1x2x18AWG	1/1.0	1.2	1.0	AL-Foil + TC Braided	7.5
AP70001E	1x2x18AWG	16/0.25	1.2	1.1	AL-Foil + TC Braided	8
AP70110E	1x2x18AWG	16/0.25	1.2	1.0	AL-Foil + TC Braided	7.8
