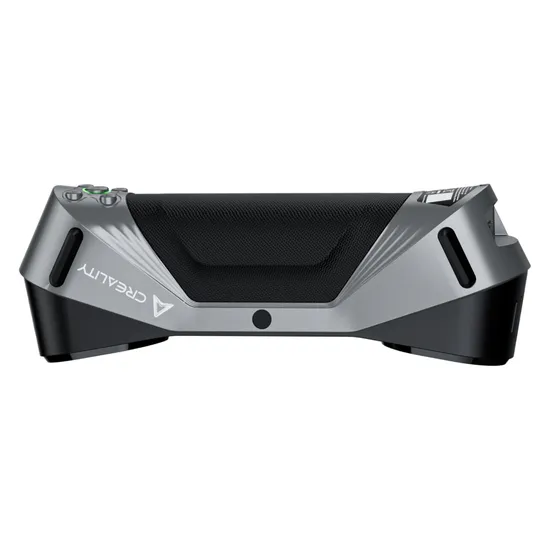

Creality Cr-Scan Raptor 3D Scanner Handheld High Precision Scanners

Product Description

Creality CR-Scan Raptor 3D Scanner Handheld High Precision Scanners
Product Parameters

Brand	Creality
Supported File Formats	.obj, .stl, .ply
Minimum scanning area	5 x 5 x 5 mm
Scanning accuracy Blue	up to 0.02 mm at a distance of 100 mm, NIR up to 0.1 mm
Distance to object	150 - 400 mm
Light source	LED+NIR
Country of manufacture	China
Scanning technology	Optical structured illumination
Net weight	372 grams
Package size	250x200x100 mm
Gross weight	1 kg
Device Size	215x50x74 mm
Compatible OS	Windows, MacOS
Scanner Type	Handheld/Fixed
Texture Scanning	Yes
Camera Resolution	Blue:0.02-2 mm, NIR:0.1-2 mm
Number of cameras	2
Connection interface	USB3.0, type-c

Detailed Photos
It allows you to scan objects at different distances, ensuring stable work and high scanning quality.
Compact size for greater flexibility
The handheld 3D scanner is lightweight, weighing 372 grams, and can be operated with one hand, ensuring fatigue-free operation even during long scanning projects.
Equipped with a non-slip surface and a detachable neck strap, it offers flexibility and safety.
The combination of a blue line laser and structured infrared light allows for the detection of objects of any size! The CR-Scan Raptor easily detects objects ranging from 5 x 5 x 5 mm to 2000 x 2000 x 2000 mm, including small figures, bolts, faces, human bodies, car parts and more.
The powerful CR-Scan Raptor scanner scans 7 parallel blue laser lines. To ensure clear, sharp edges and precise detail, each individual laser line is kept ultra-thin (up to 0.1 mm). This ensures excellent metrology accuracy of up to 0.02 mm.
Advanced temperature compensation algorithms improve temperature stability and ensure maximum accuracy.
The high-performance design allows both near and far 3D scanning and provides high stability at high and low temperatures. This is achieved through the use of a 20mm lens with deep depth of field, a low distortion lens (< 5‰ distortion), a 9-lens glass lens, and a metal barrel and lens mount.
Structured infrared light for scanning without marking or spray scanning.
The CR-Scan Raptor uses 3D images with scatter mapping for fast data collection without marking, even on detailed parts and complex workpieces.
Cars, car parts, tires and other ferrous objects and metal parts can be scanned without problems, even without the use of scanning sprays.
The circular arrangement of the LED texture lights provides more realistic scanning results. The blue light provides additional light to scan the laser lines, while the white light increases the brightness of the color textures.
With blue laser scanning speeds of up to 60 frames per second and near infrared scanning speeds of up to 20 frames per second, high-resolution scans with the finest detail can be captured in a single flash.
Face and body modes feature unique facial image algorithms to capture even more detail. With the CR-Scan Raptor, the entire body can be scanned in as little as 2 minutes.
24-bit full color scanning with 12 circular textured LEDs for realistic color reproduction.
Intuitive buttons for easy operation and a ring indicator for real-time scanning status.
Smooth scanning with anti-shake protection, e.g. One-Shot 3D imaging for natural stability or high inverse speed.
Wide range of applications: metrology testing, reverse engineering, automotive parts manufacturing, medical technology, mold and die making, figurine making, AR/VR, etc.
High-precision calibration plates made from glass substrates.
