New Design Factory Direct Rotary Drum Disc Mower for Tractor Pto

Product Description

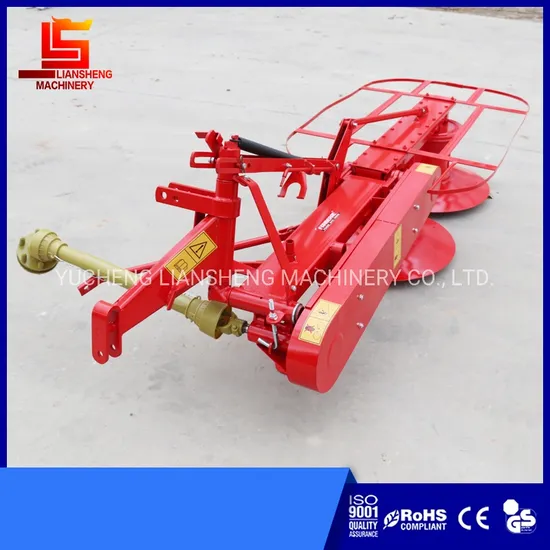

New design factory direct rotary drum disc mower for tractor PTO
Drum mower
The DM165 mower is a two-drum mower. Each drum has three knives, which can be changed quickly with a simple tool. The hay cut by the knives is carried between the drums and put in a loosely laid swath. Three V-belts transmit power to the input gear shaft, then to the main drive shaft, which in turn drives the drums through the bevel gears.
A breakaway device is incorporated on this machine, which automatically operates when the mower hits an obstruction. This protects the drums from damage.
Move at High Speeds.
No Hydraulics Necessary (unless using Hydraulic Conversion Kit).
Few Moving Parts & Easy Maintenance.
Great Alternative to Disc & Sickle bar Mowers for Small Hay Producers.
Easily Cuts Through Tall & Thick Grass.
Designed for Reliable Mowing in All Conditions.

Model	DM135	DM165
Cutting Width	135cm	165cm
Cutting Height	3cm	3cm
Transport Width	95cm	140cm
Transport Length	265cm	285cm
Height	110cm	110cm
Weight	340kg	390kg
Drums	2pcs	2pcs
Blades	6pcs	6pcs
P.T.O Speed	540rpm	540rpm
P.T.O Drive Shaft	with	with
Mounted Cat	Cat1	Cat1 & 2 & 3
Tractor power	≥20hp	≥28hp

F.DM Disc Mower
F.DM disc mower can be used to harvest the pasture, herbage, such as alfalfa, ryegrass and oat grass etc, suited for 25-55hp tractor,the cutter arbor can be easily to go up and down, overturn angle is -30° to +90° , adapt to the situation of the ground convex and doesn't destroy the grass ground.
Standard equipment : 3-points linkage, Cat I or II ; drums, disc cutter with superior blades, hydraulic hoses and quick couplings, strong circular tube bracket , long tarpaulin.

Model	F.DM170	F.DM210	F.DM250	F.DM290
Working width(mm)	1600	2000	2400	2800
Number of mowing discs	4	5	6	7
Number of mowing blades	8	10	12	14
Number of drums	1	2	2	2
PTO speed(RPM)	540
Hp/Kw	25/18	35/26	45/33	55/40
Weight(kgs)	370	420	530	565
