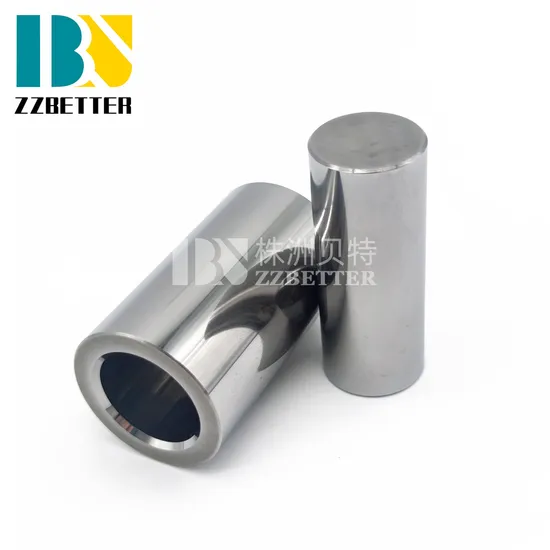

Tungsten Carbide Cold Heading Dies Core Produced with Raw Material
| US$60.00-70.00 | 1 kg (MOQ) |
Basic Info.
Processing Method
Punching and Shearing Mould
Technics
Forging Die
Process Combination
Single-Process Mould
Manufacturing Technology
Sintering
Mold Cavity Technology
Pressing
Milling Speed
Normal Speed
Name
Tungsten Carbide Cold Heading Mould
Grade
Yg15 Yg15c Yg16c Yg18c Yg20c Yg22c Yg25c
Hole Shape
Round, Square,Rectangle,Hexagon
Outer Shape
Cylinder,Cone or Customized
Usage
for Bolt,Nut,Screw,Stud...
Transport Package
in Paper Box
Specification
according to customers′ request
Trademark
ubt
Origin
China
Production Capacity
500000
Product Description
Tungsten Carbide cold heading dies have high impact resistance, toughness, and wear resistance. They are mainly used in processing some hard metal tools, especially for bolts, rivets, heading of screws, nibs nuts, and so on.
Grade recommended:
| Grade | ISO | Performance | Performance&application recommended | ||
| Density | Hardness | TRS | |||
| G/Cm3 | HRA | N/mm2 | |||
| YG11C | G20 | 14.4 | 88.5 | 2600 | Forming or stamping dies for metal powders and nonmental powders. |
| YG15 | G30 | 14.0 | 87.5 | 2800 | For punching, stamping, forging tools under large stress. |
| YG18C | G30 | 13.7 | 84.5 | 3100 | Impact resistance forging dies,hot-press forging dies and rollers. |
| YG20 | G40 | 13.5 | 85.5 | 3200 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, screws, screw caps. |
| YG20C | G40 | 13.5 | 83.5 | 3300 | Dies for wear resistant or impact resistant application. |
| YG22C | G40 | 13.3 | 83 | 3500 | Nut forming dies and high impact resistance forging dies. |
| YG25C | G50 | 13.1 | 82.5 | 3600 | Stainless bolt header dies and rollers |
The advantages of ZZbetter tungsten carbide heading dies
1. Many carbide grades available
2. Numerous sizes available
3. Normal and abnormal shapes available
4. High performance for hot forging and cold heading
5. Maintain good shape in high bending strength
6. Can offer precision grinding service
7. Accept custom design
8. Provide professional suggestions
9. Free sample can be provided
10. Strict quality controlled and short production time
Welcome to contact us for more details!
