Low Speed High Torque Used Tire Shredder for Scrap Tyre Recycling

Product Description

Low Speed High Torque Used Tire Shredder For Scrap Tyre Recycling
Used Tire Shredder brief introduction:
The DGD series double shaft shredder is a versatile, heavy duty,dual electric motor driven, two shaft shredding machine,avaible with various power and shaft speed configuraions to handle a wide range of application.
Double shaft shredder uses two parallel shafts with interlocking cutting discs,as a result the material is shredded both lengthways and crossways. The cutting discs have tipped blades which grab the material and pull it down into the cutting chamber, making it particulary effective when shredding large hollow containers.
Without fitting with screens makes double shaft shredder extremely avoid blocking, the shredding size is controlled by the width of the shredder blades. Auto-reverse and overload protection are standard features of the DGD heavy duty double shaft shredder.
A safety switch on the dwaste tire shredder prevents machine startup when the front panel is open and the machine features emergency stop buttons both on the machine body and control panel to keep operators safety.

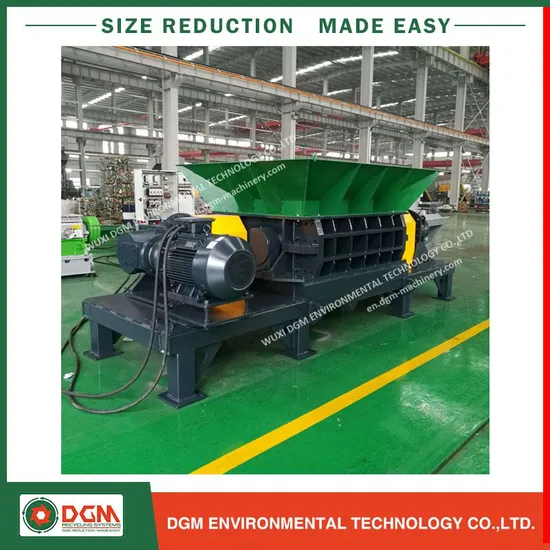

Pictures of Used Tire Shredder :
Specification of Used Tire Shredder :

Item for two shaft shredder		Unit	DGD1000	DGD1500	DGD2000
Cutting chamber		mm	1030*640	1530*940	2030*1500
Cutting Disc Diameter		mm	330	500	800
Rotor Speed		rpm	11.6~12.9	11.6~12.9	9.1~10.4
Main Motor Power		kw	2*18.5/2*22/2*30	2*37/2*45/2*55/2*75	2*75/2*90/2*110
Cutting Discs		pcs	20	30	28
Machine Dimensions		mm	3500*1900*2000	5000*2300*2500	7000*3200*4000
Dimensions	A	mm	2000	2500	3600
	B	mm	2000	2240	4000
	C	mm	700	920	1500
	D	mm	3500	4860	7000
	E	mm	1500	1910	3000
	F	mm	640	940	1500
	G	mm	1900	2265	3200
	H	mm	1030	1530	2030
	I	mm	640	940	1530

Layout for double shaft shredder:

Key features of double shaft shredder	Alternertive options
-Hexagonal shaft design -Machined bolt-in cutting discs -Robust heavy duty machine housing -Low speed,high torque geared drive -Bolt in drive shafts -Multiple blade designs -Auto reverse function -Auto reverse function -Shock absorbing gearbox -Case hardened steel blades -2 piece split bearing housing -Advanced adjustable sealing system -Amp meter control	-Rotary screen -Hydraulic system -Touch screen PLC -Hopper mounted viewing mirror -Increased motor drive -Bespoke colour scheme -Gearbox with shrink disc -Gearbox with shrink disc

Cetificates
Packing and Shipping
1. Several layers of plastic wrapping film and cardboard to protect used tire shredder from dust and moisture.
2. Plastic packing strap belt to fasten wrapping film and machines, also to fix machines in containers.
3. Wooden case is used as the outside package and spare parts when choosing by LCL, air or international express.
4. Excellent logistic team to guarantee the double shaft shredder to be safely shipped to customers appointed location.
5. If you have any other request for the packaging or loading, we will do our best to meet your demands.
Company Introduction
Since its foundation DGM Recycling Systems have been at the forefront of innovation and technology in the development of cost effective and reliable recycling solutions. As a wholly owned subsidiary of Miracle Automation Engineering Group, a pioneer in automation systems for the automotive and material handling industries, DGM continues to strive for excellence in the field of size reduction and recycling.
FAQ
Q1: Are you a trading company or a factory ?
DGM is a factory with 10 years experience in tire and plastic machinery manufacturing, and 20 years experience in technology.
Q2: Will you provide pre-sale services?
DGM consists of experienced specialists, we will offer a suitable solution according client's requirement in time.
Q3: Is your after-sales service excellent?
At DGM we have a highly trained team of service personnel to handle all manner of customer service enquiries. Whether it is replacement parts, technical assistance, or just general operation advice we offer our customers genuine 24/7 support and after sale service. We have an international network which ensures wherever you are in the world you receive localized high level support.
Our technical team has decades of experience in the field of size reduction, washing line and tire recycling and we are on hand to offer assistance in installation, commissioning, staff training and general technical assistance.
Q4: Where is your factory?
Address: No.1.Fengqi Road, Huishan District , Wuxi City, Jiangsu Province, China
Q5: What is your contact informatoin?
Fax: +86 510 8357 0210
Telephone: +86 510 8357 2002

Q6: Could we visit your factory and test the machine?
We warmly welcome you to visit our factory anytime,and we are very glad to test our machine with your raw material.
DGM---Qualified supplier to offer you high quality Used Tire Shredder .
