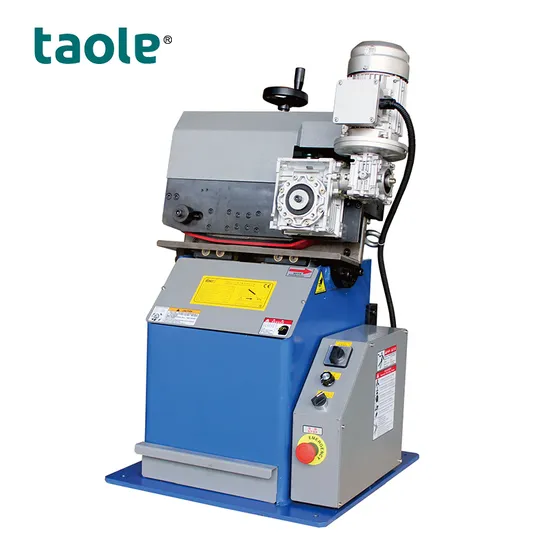

Stationary Beveling Edge Milling Machine for Bulk Metal Sheet Beveling Plate Beveler
Basic Info.
Model NO.
TMM-S20T
Automatic
Semi-Automatic
Style
Desktop
Certification
CE, ISO
Gross Weight
180kg
Clamp Thickness
3~30mm
Clamp Width
>20mm
Process Length
>150mm
Bevel Angle
25 ~ 80 Degree Adjustable
Single Bevel Width
0~12mm
Bevel Width
0~25mm
Cutter Plate
Diameter 80mm
Bevel Joint
V, Y
Transport Package
Wooden Case
Specification
64*85*11.6cm
Trademark
Taole
Origin
Shanghai
Product Description
Product Description| Edge milling machine is kind of stationary table type edge milling machine specially for small plates. S20T speed at 0~1000mm/min, clamping thickness 3-30mm at 25-80 degree which mainly for small thickness or size plate.S30T speed at 0-1500r/min, Milling head speed adjustable. Clamping thickness 8-80mm at 10-75 degree which is specially for small size but heavy duty metals. This stationary models are suitable for bulk process for metal plates with continously metal feeding. Widly applicated for engineering, machinery , technical schools etc. Machine widely used for beveling on carbon steel, stainless steel, aluminum steel ,alloy steel etc. Available for regular bevel joint V/Y |
Main Figures
1.Stationary Machine Suitable for bulk production with continously feeding
2.Unique machine design request small work place only.
3.Cold cutting to avoid any oxide layer by using market standard milling head and carbide inserts
4.High precision performance on bevel surface at R3.2-6..3
5.Wide working range, easy to adjust for bevel angel and clamping
6.Specially for V/Y type bevel joint
7.High working speed whcih estimated to be 0.5-1.2m/min
8.S20T design for small metals, S30T design for heavy duty metals. Double Motor for higher efficiency. Cutter Speed adjustable suitable for multi material with different hardness.
Parameter Comparison Table
| Model No. | TMM-S20T | TMM-S30T |
| Power Supply | STD 380V 50Hz Can be Customized | STD 380V 50Hz Can be Customized |
| Total Power | 1620W | 4520W |
| Spindle Speed | 2000r/min | 500~1050r/min |
| Feed Speed | 0-1000mm/min | 0-1500mm/min |
| Clamp Thickness | 3~30mm | 8~80mm |
| Clamp Width | >20mm | >80mm |
| Process Length | >150mm | >300mm |
| Bevel Angle | 25 ~ 80 Degree Adjustable | 10 ~ 75 Degree Adjustable |
| Single Bevel Width | 0~12mm | 0~20mm |
| Bevel Width | 0~25mm | 0~70mm |
| Cutter Plate | Diameter 80mm | Diameter 80mm |
| Insert QTY | 9 pcs | 6 pcs |
| Bevel Joint | V, Y | V, Y |
| Table Height | 580mm | 850-1000mm |
| Travel Space | 450*100mm | 1050*550mm |
| N.W / G.W | 155/180 kgs | 850/920 kgs |
| Packing Size | 640*850*1160mm | 1210*1310*1750mm |
Detailed Images
Adjust the clamp thickness by hand wheel | Bevel Angel Adjustment | Easy to disassemble and replace the milling head |
Processing process diagram
Effect image after beveling
Packing shipping
