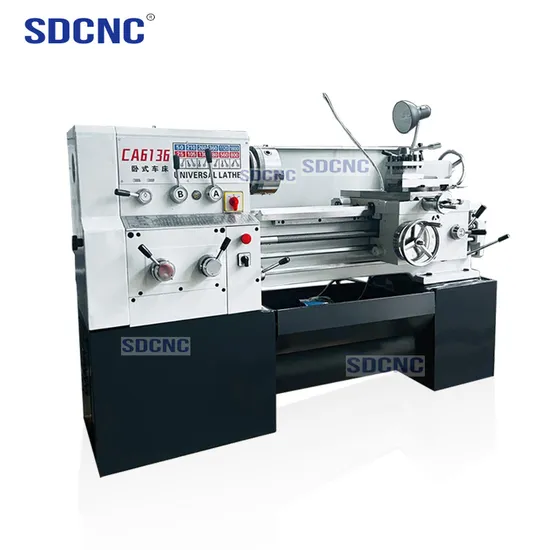

Universal Small Floor Lathe Ca6136 Ordinary Horizontal Lathe
| US$4,790.00-5,230.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CA6136
Type
Floor Lathe
Processing Accessory
Chuck CNC Lathe
Tool Holder
Double-tool Holder CNC Lathe
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Product Name
Ca6136
Voltage
380V
Taper of Tailstock Sleeve
Mt4
Overall Dimensions for 1500mm
2220 * 1150 * 1590mm
Diameter Over Bed
360
Transport Package
Wood Packing
Specification
2900*1140*1500
Trademark
SDCNC
Origin
Shandong China
Packaging & Delivery
Package Size
175.00cm * 170.00cm * 210.00cm
Package Gross Weight
1850.000kg
Product Description
Application:
The base guide of floor-type lathe adopts rectangular structure, which ensures a large span and high rigidity. It is very suitable for
low speed and high load cuttings. This machine has a high carrying capacity, high rigidity, optimal appearance design and easy
operation. It is widely used for machining neutral parts with large diameter, such as tire mold, large flange tube plate, turbine parts,
end enclosure, etc. It is also extensively applicable for manufacturing the parts of chemical industry, heavy machinery, mining and
railways equipments and aviation industry. Product Parameters
| SPECIFICATIONS | Units | C6136 |
| Max Swing diameter over bed | mm | 360 |
| Max Swing diameter over cross slide | mm | 190 |
| Max Swing diameter over gap | mm | - |
| Distance between centers | mm | 750/1000/1500/2000/3000 |
| Spindle bore diameter | mm | 52( Opt.80) |
| Spindle bore taper | - | MT6 (Opt. Metric 1:20) |
| Spindle speed range | rpm | 40-1400 |
| Spindle speed steps | - | 9 |
| Cross slide travel | mm | 180 |
| Top tool post travel | mm | 95 |
| Tool size | mm | 20*20 |
| Longitudinal feeds range | mm/r | 0.0832-4.6569 |
| Cross feeds range | mm/r | 0.048-2.688 |
| Kinds of metric threads | kinds | 19 |
| Range of metric threads | mm | 0.25-14 |
| Kinds of inch threads | kinds | 28 |
| Range of inch threads | T.P.I. | 2-40 |
| Kinds of threads module | kinds | 17 |
| Range of threads module | M.P. | 0.25-3.5 |
| Tailstock quill diameter | mm | 65 |
| Tailstock quill taper | - | MT4 |
| Tailstock quill travel | mm | 130 |
| Main motor power | kw | 4 |
| Coolant motor power | kw | 0.09 |
| Weight for 750 | kg | 1200 |
| Weight for 1000 | kg | 1300 |
| Weight for 1500 | kg | 1500 |
| Weight for 2000 | kg | 1700 |
| Weight for 3000 | kg | 1900 |
| Dimension for 750 | mm | 2200*1140*1500 |
| Dimension for 1000 | mm | 2400*1140*1500 |
| Dimension for 1500 | mm | 2900*1140*1500 |
| Dimension for 2000 | mm | 3400*1140*1500 |
| Dimension for 3000 | mm | 4400*1140*1500 |
