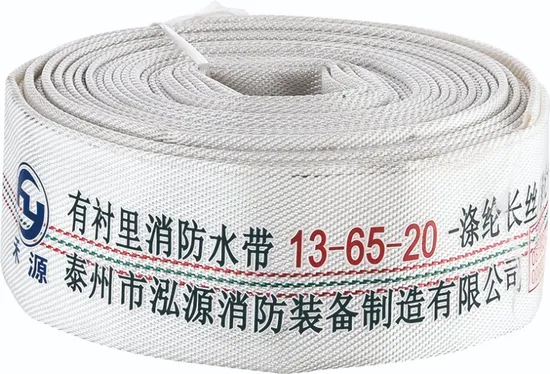

Heavy-Duty Fire Hose for Tough Fire Fighting Challenges

Product Description

Specification
Lining Material	PVC,Rubber,EPDM/PU/Synthetic Rubber
Jacket Material	High strength polyester staple,polyester filament
Jacket Numbers	Single Jacket/Double Jacket
Jacket Color	white, red, yellow, the colors can be customized
Working Pressure	6bar, 8bar,10bar,13bar,16bar,18bar,20bar,25bar
Hose size	1 inch,1.5 inch,1.75 inch,2 inch,2.5 inch,3 inch,4 inch,5 inch,6 inch,8 inch,10 inch,12 inch
Hose Length	15m, 20m, 25m, 30m, 50m, 100m
Hose Coupling	Storz,Gost,John Morris,Machino,etc
Use	Fire Fighting,Irrigation,Agricultural
Certificate & Approval

Model Number	Size (Inch)	Size (mm)	Working Pressure (Bar/PSI)	Bursting Pressure (Bar/PSI)	Length (Meters)
SP25	1"	25 mm	8/10/13/16/20 Bar 125/150/190/235/300 PSI	24/30/39/48/60 Bar 375/450/570/705/900 PSI	15-30M
SP40	1-1/2"	40mm	8/10/13/16/20 Bar 125/150/190/235/300 PSI	24/30/39/48/60 Bar 375/450/570/705/900 PSI	15-30M
SP45	1-3/4"	45mm	8/10/13/16Bar 125/150/190/235PSI	24/30/39/48 Bar 375/450/570/705PSI	15-30M
SP50	2"	50mm	8/10/13/16Bar 125/150/190/235PSI	24/30/39/48 Bar 375/450/570/705PSI	15-30M
SP65	2-1/2"	65mm	8/10/13/16Bar 125/150/190/235PSI	24/30/39/48 Bar 375/450/570/705PSI	15-30M
SP80	3"	80mm	8/10/13 Bar 125/150/190 PSI	24/30/39 Bar 375/450/570 PSI	15-30M
SP100	4"	100mm	8/10 Bar 125/150 PSI	24/30 Bar 375/450 PSI	15-30M
SP125	5"	125 mm	8/10 Bar 125/150 PSI	24/30 Bar 375/450 PSI	15-30M
SP150	6"	150 mm	8/10 Bar 125/150 PSI	24/30 Bar 375/450 PSI	15-30M
SP200	8"	200mm	8/10 Bar 125/150 PSI	24/30 Bar 375/450 PSI	15-30M
SP250	10"	250mm	8/10 Bar 125/150 PSI	24/30 Bar 375/450 PSI	15-30M
SP300	12"	300mm	8/10 Bar 125/150 PSI	24/30 Bar 375/450 PSI	15-30M
SP350	14"	350mm	8/10 Bar 125/150 PSI	24/30 Bar 375/450 PSI	15-30M
SP400	16"	400mm	8/10 Bar 125/150 PSI	24/30 Bar 375/450 PSI	15-30M

Product Description:

Outer and Inner Layers
Specially formulated rubber,extruded through the tubular fabric.Minimum load loss thanks to its smooth liner surface.High temperature resistance.
Intermediate Textile Fabric Reinforcement
Jacket manufactured withtubular weave with hightenacity polyester thread.Free of defects such as broken threads,knots,etc.
FEATURES8BENIFITS
Excellent resistancetoabrasion and to intensive professional use. High resistance to oil,gasoline and a wide range of chemicals.
Highly resistantto both contact and radiant heat.
Lightweight hose,remaining flexible even at low temperatures(-30ºC) High breaking resistance thanks to its special textile construction.
